InstallatIon
3-32 HPR800XD Auto Gas – 806500

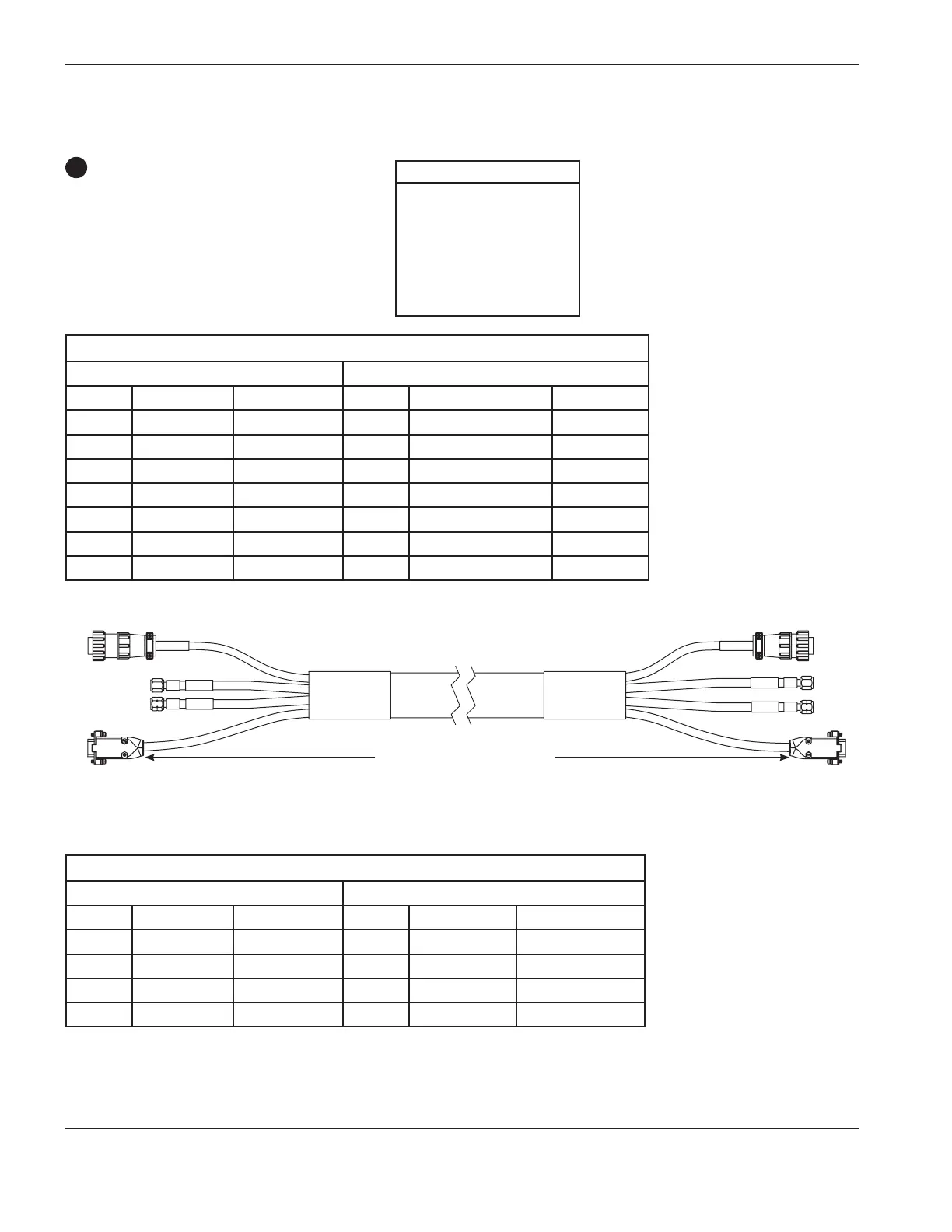

Cable and gas hose assembly
Selection console to metering console hose and lead assembly
Female end to metering console Male end to selection console
Typical female DSUB connector
Part no. Length
128992 3 m (10 ft)
128993 4.5 m (15 ft)
228338 6 m (20 ft)
128952 7.5 m (25 ft)
128994 10 m (35 ft)
128930 15 m (50 ft)
128995 20 m (65 ft)
Power cable signal list – 9-pin connectors
Metering console end Selection console end
Pin No. Input/Output Description Pin No. Input/Output Function
1 Input 120 VAC power 1 Output AC in, return
2 Input 120 VAC power 2 Output AC in, hot
3 Input Chassis ground 3 Output Chassis ground
4 Not used 4 Not used
5 Not used 5 Not used
6 Not used 6 Not used
7 Not used 7 Not used
Communication cable signal list – 9-pin DSUB connectors
Metering console end Selection console end
Pin No. Input/Output Description Pin No. Input/Output Function
2 Input/Output CAN L 2 Input/Output CAN communication
3 Input CAN ground 3 Output Power ground
7 Input/Output CAN H 7 Input/Output CAN communication
9 Input Not used 9 Output Not used
12
