InstallatIon
3-40 HPR800XD Auto Gas – 806500
Torch lead junction box (Optional)
Note: See the Parts list for part numbers
Caution: Total lead length from the ignition console to the torch must be less than or equal to:
20 m (65 feet) for HPR130XD / HPR260XD
15 m (50 feet) for HPR400XD / HPR800XD

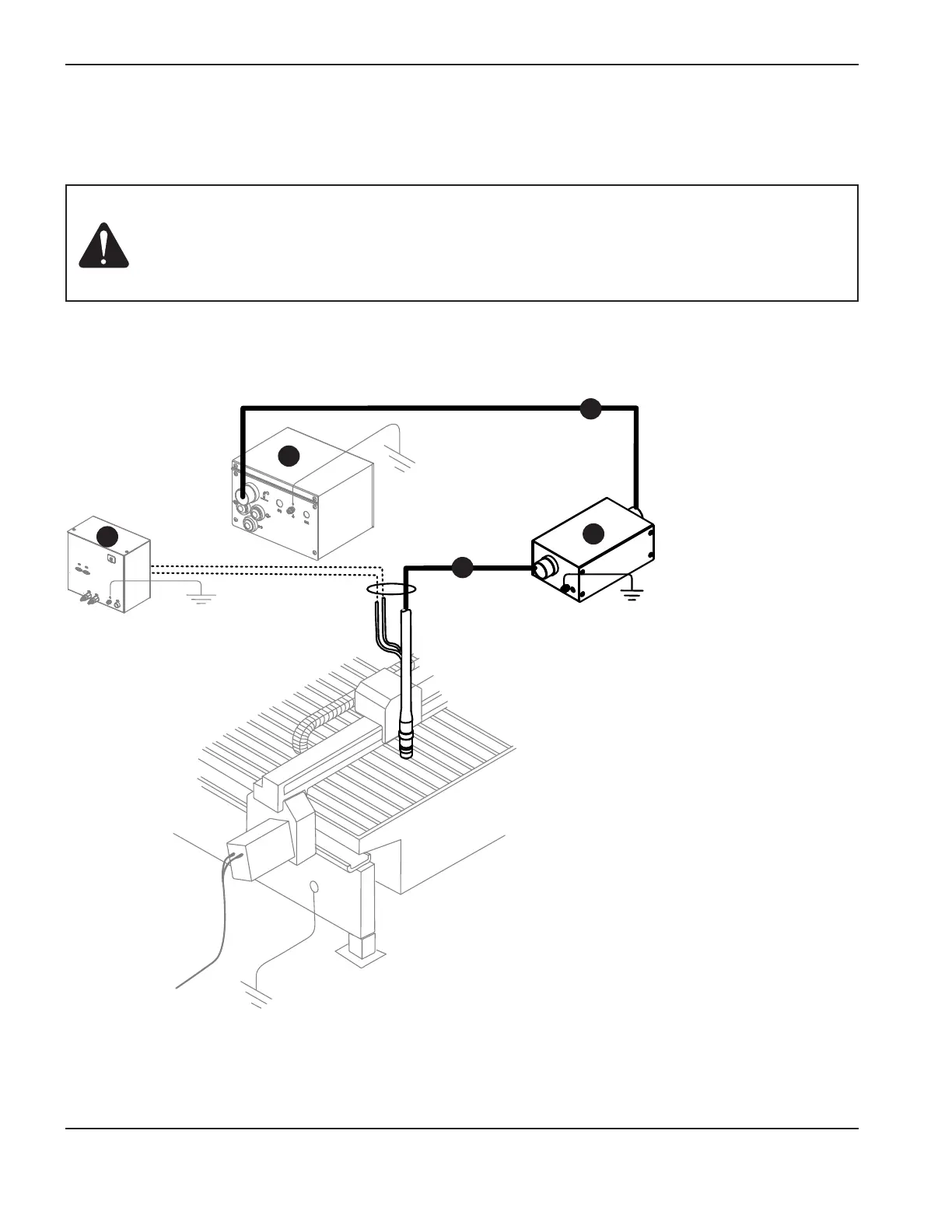

1. Metering console
2. Ignition console
3. Junction box lead
4. Junction box
5. Junction box to
torch lead
1
2
3
4
5
