Hypertherm HyPerformance Plasma HPR800XD User Manual

Parts List

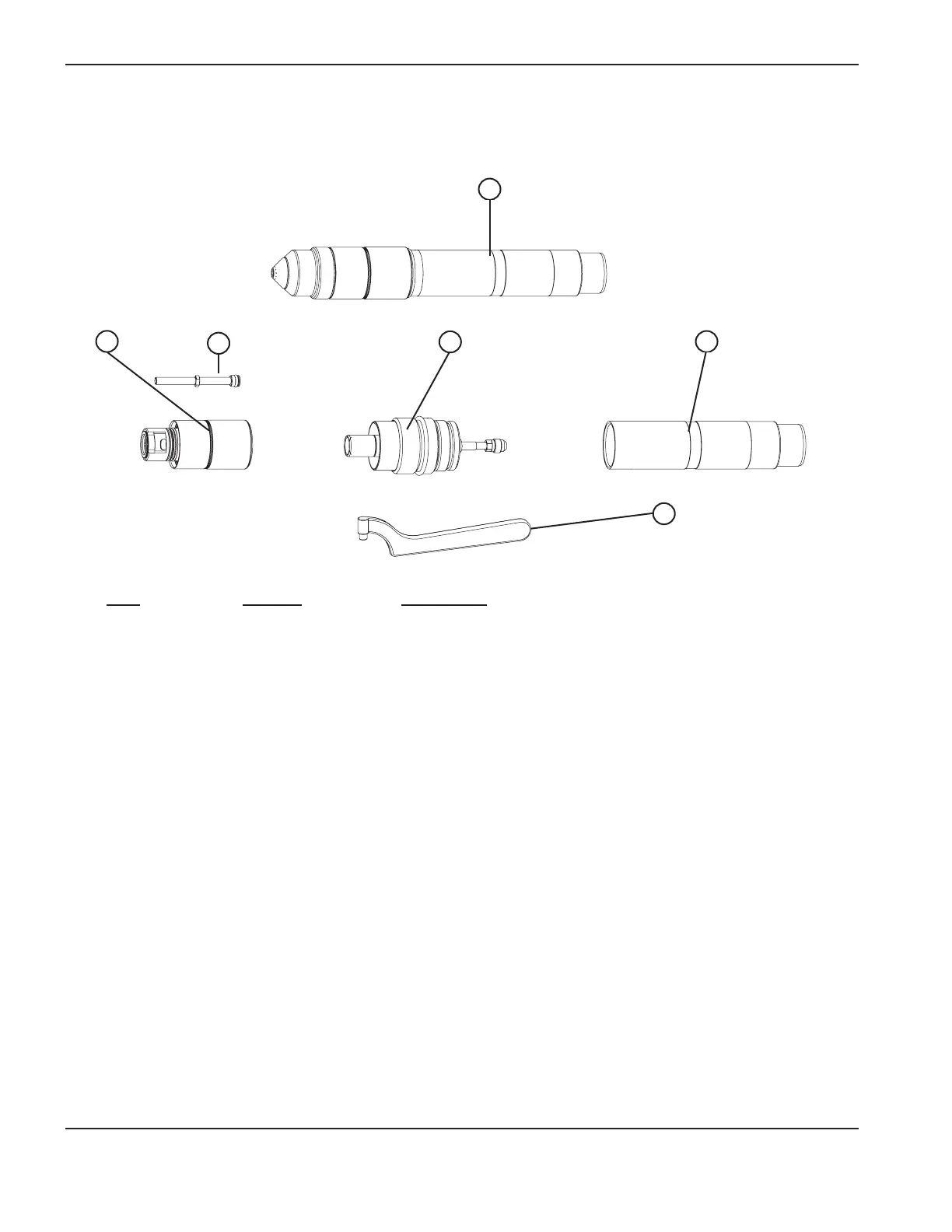

6-14 HPR800XD Auto Gas – 806500
HyPerformance torch
Torch assembly
Part
Item Number Description
1 228599 HPR800XD machine torch assembly
2 220706 Quick-disconnect torch (no water tube)
3 220881 Water tube*
4 220705 Quick-disconnect receptacle
5 220789 Torch mounting sleeve assembly: Standard, 181 mm (7 in)
220788 Torch mounting sleeve assembly: Short, 114 mm (4.5 in)
220790 Torch mounting sleeve assembly: Long, 248 mm (9.75 in)
6 104269 2" spanner wrench
128879 Torch kit: O-rings, water tube and seal
128880 Quick disconnect kit: O-ring and connector
* Water tube no. 220881 comes in the 228599 torch assembly. See consumable selection or the cut charts in the
operation section of this manual for other water tube part numbers.
2
4
6
5
1
3
