Gouge with the Hand Torch
Powermax65/85/105 SYNC Operator Manual 810470 11 3

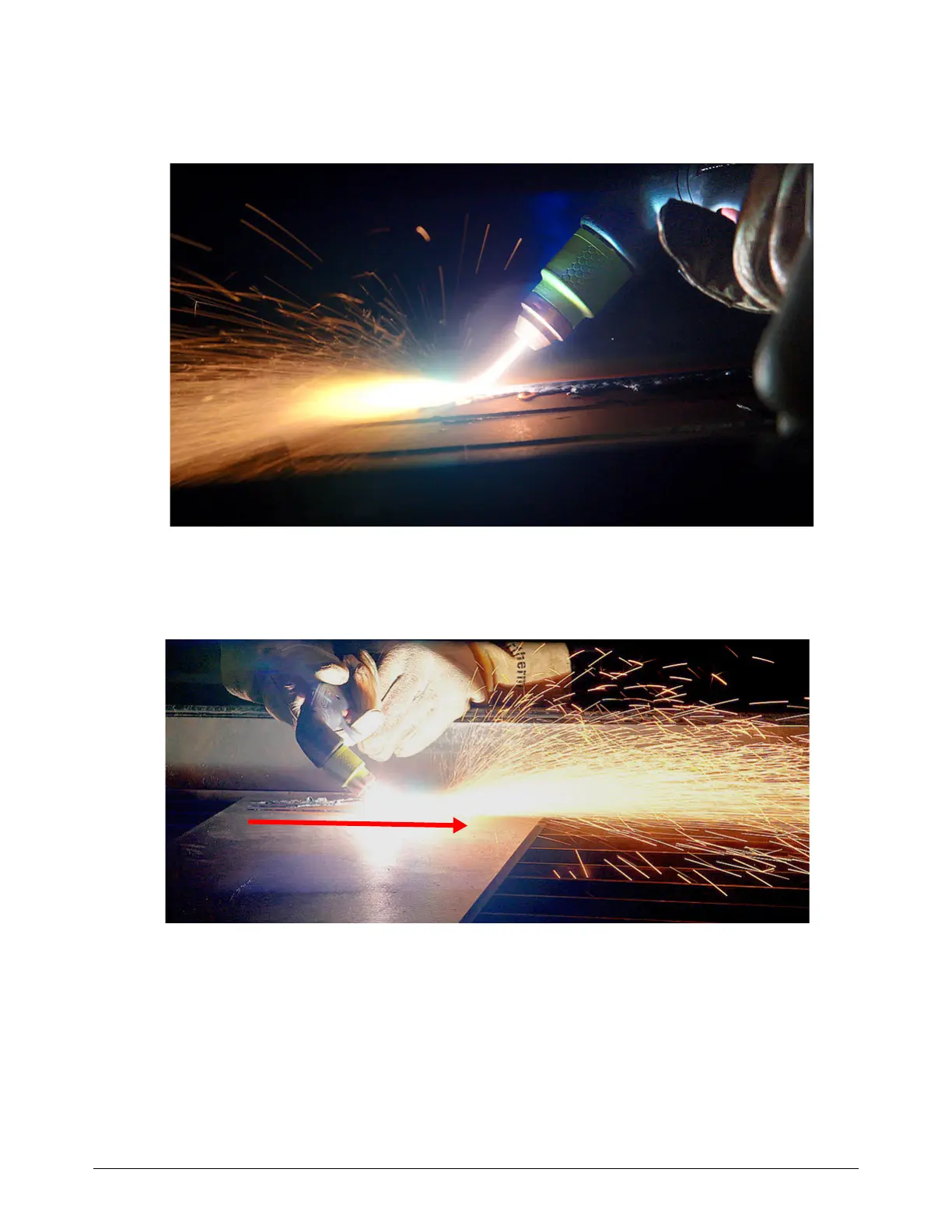

3. Pull the trigger to get a pilot arc. Transfer the arc to the workpiece.
4. Stretch the arc to 25 mm – 32 mm (1 in. – 1-1/4 in.).
5. Keep this position as you push the plasma arc in the direction of the gouge that you want to
create.
6. Change the position of the torch as necessary to get the gouge contour that you want. Refer to
Change the gouge contour on page 114. Keep at least a small distance between the torch tip
and the molten metal to increase cartridge life and prevent damage to the torch.
