Install and Set Up the Plasma Power Supply
2
Powermax65/85/105 SYNC Operator Manual 810470 39
Powermax105 SYNC

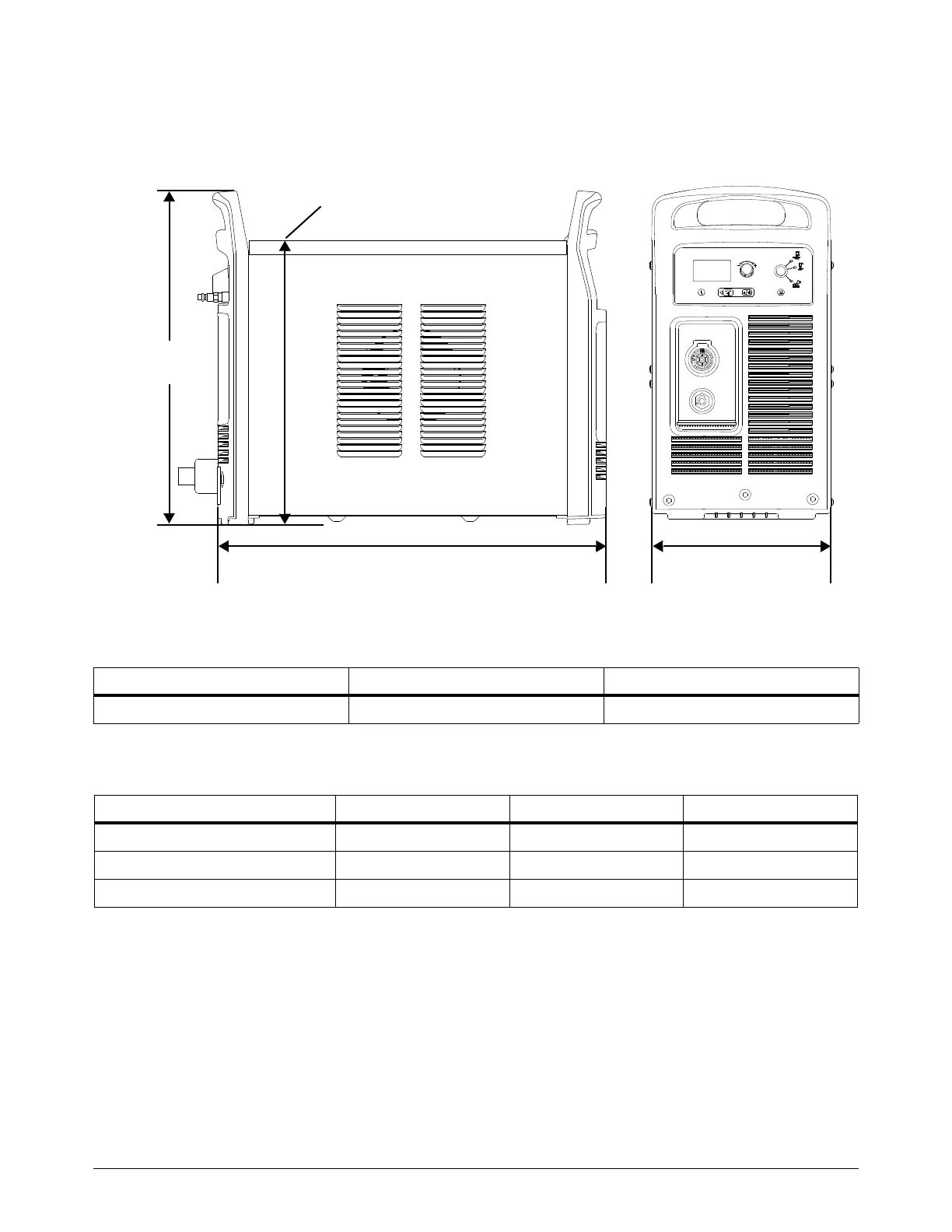

Figure 2 – Powermax105 SYNC dimensions
Table 2 – Powermax105 SYNC weight with power cord
Work lead weights

For hand torch weights, refer to Weights on page 110. For machine torch
weights, refer to the Powermax65/85/105 SYNC Mechanized Cutting
Guide (810480).
200 V – 600 V CSA 230 V – 400 V CE 380 V CCC / 400 V CE
39.7 kg (88 lb) 39.5 kg (87 lb) 36.2 kg (80 lb)
Work lead Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
7.6 m (25 ft) 1.3 kg (2.9 lb) 1.6 kg (3.6 lb) 2.3 kg (5.1 lb)
15 m (50 ft) 2.3 kg (5.0 lb) 3.0 kg (6.5 lb) 4.2 kg (9.25 lb)
23 m (75 ft) 3.1 kg (6.9 lb) 4.2 kg (9.25 lb) 6.1 kg (13.4 lb)
274 mm
(10.8 inches)
592 mm
(23.3 inches)
508 mm
(20 inches)
436 mm
(17 inches)

Hypertherm SYNC Powermax 85 Specifications

General

Rated Output Current	85 A
Open Circuit Voltage (OCV)	300 VDC
Input Voltage	200-600 VAC, 3-phase, 50/60 Hz
Max Severance Thickness	25 mm (1 inch)
Max Cutting Thickness	25 mm (1 inch)
Gas Supply	Clean, dry air or nitrogen
Certifications	CE
Air Pressure	85 psi (5.9 bar)
Air Flow	6.7 scfm (190 l/min)
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm (190 l/min) @ 85 psi (5.9 bar)
Torch Lead Length	15 m (50 ft)
