1060—Upgrade Processors—Type I-1
Warning: Processors are sensitive to static discharge. See “Handling
ESD-Sensitive Parts” on page 4-41.
Adapter cards (1035) if applicable.
Left drive support bracket (1010).
Right drive support bracket (1015).
To remove the processor, raise the socket lever, remove the old
processor, insert the upgrade processor, then lower the socket lever
firmly.
When installing, be certain the dot on the processor is aligned with the
dot in the socket.
Notes:
1. Determine which type of processor you are installing and make sure the
jumpers are set correctly.
2. Run the Setup Utility after installing a processor.
1
Processor
Socket
Processor
Processor
Socket Handle
2

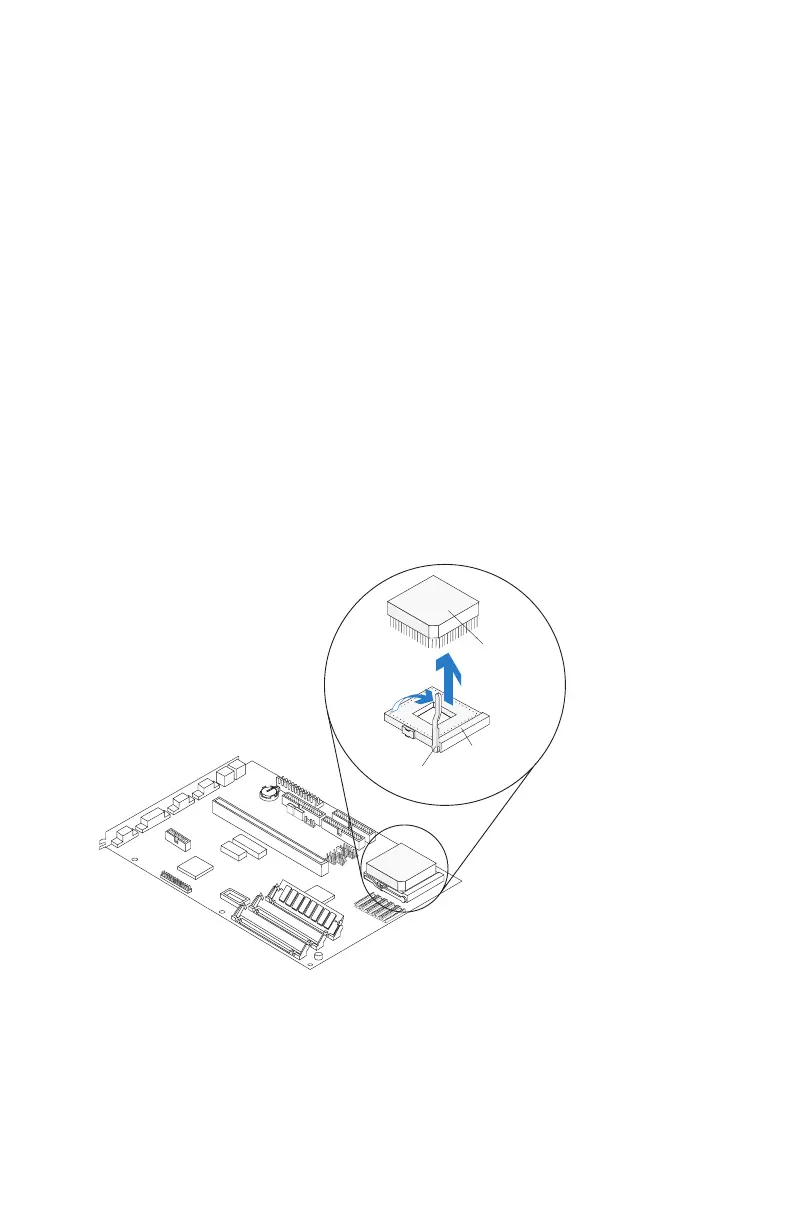

Figure 4-17. Processor Upgrade - Type
I
-1
Repair Information 4-19
