1090—System Board
Adapter cards (1035).
Left drive support bracket (1010).
Riser card (1045).
Disconnect any cables necessary for removal.
Memory (SIMMs) (1050).
Video memory modules (1056) if applicable.
Cache memory modules (1055) if applicable.
Processor or math coprocessor/upgrade processor (1060) if applicable.
Notes:
1. Be certain to reinstall the SIMMs, optional math coprocessor/upgrade
processor, video memory, and cache memory on the new system board
if applicable.
2. When reinstalling a new system board, push the board to the rear and
place it over the front locating pin prior to installing the screws.
3. Run the Setup Utility after changing the system board.

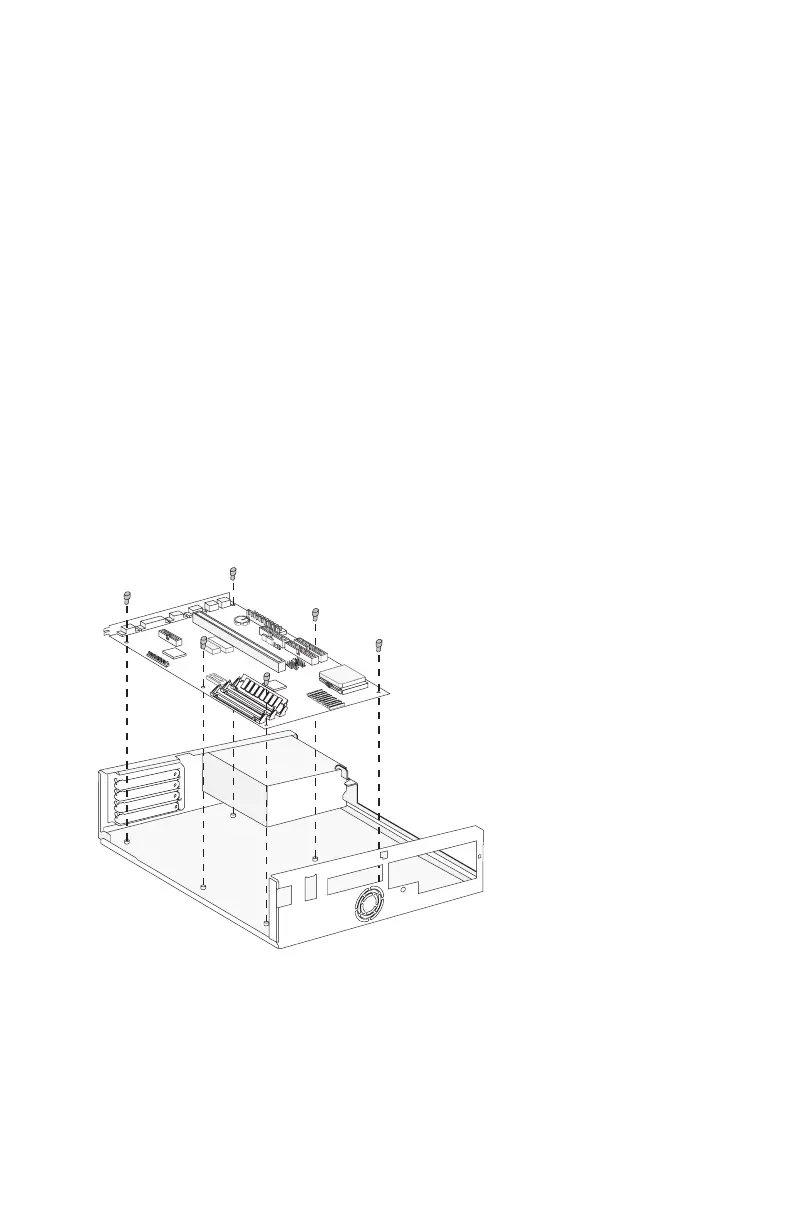

Figure 4-21. System Board
Repair Information 4-23
