1060—Upgrade Processors—Type I-2
Warning: Processors are sensitive to static discharge. See “Handling
ESD-Sensitive Parts” on page 4-41.
Adapter cards (1035) if applicable.
Left drive support bracket (1010).
Right drive support bracket (1015).
To remove the processor: remove the processor retaining clip, raise the
socket lever, remove the old processor, insert the upgrade processor,
lower the socket lever firmly, then install the processor retaining clip.
When installing, be certain the dot on the processor is aligned with the
dot in the socket.
Notes:
1. Determine which type of processor you are installing and make sure the
jumpers are set correctly.
2. Run the Setup Utility after installing a processor.
processor
socket
processor
notch
heat
sink
retaining clip
3
2

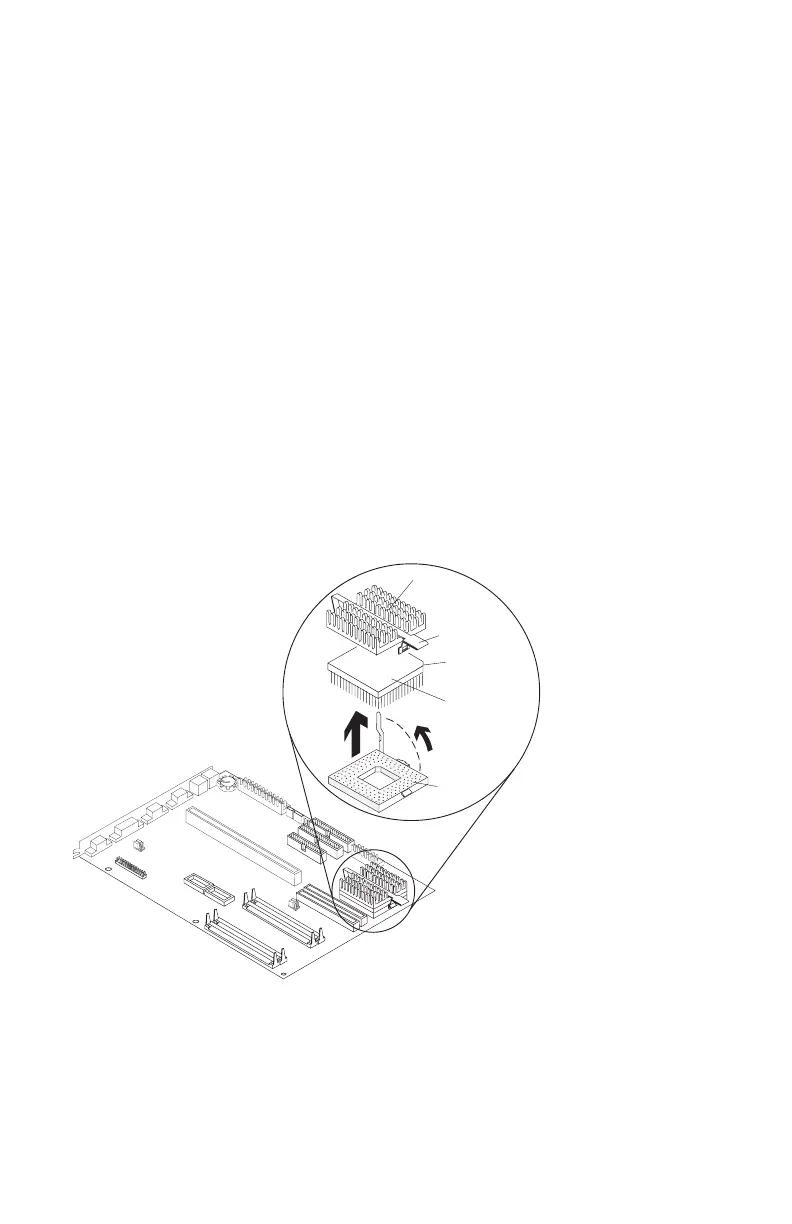

Figure 4-18. Processor Upgrade - Type
I
-2
4-20
