2. Grasp both sides of the paper door cover and use your thumbs to press outward on the cover
retention tabs A as shown in Figure 18.
3. While grasping the paper door cover and holding the retention tabs outward, slide the paper door
cover toward the front of the printer until it stops; then, lift the paper door cover off of the paper door.
Installing the paper door cover
This section provides the information needed to install the paper door cover in a fiscal or fiscal ready
printer
A

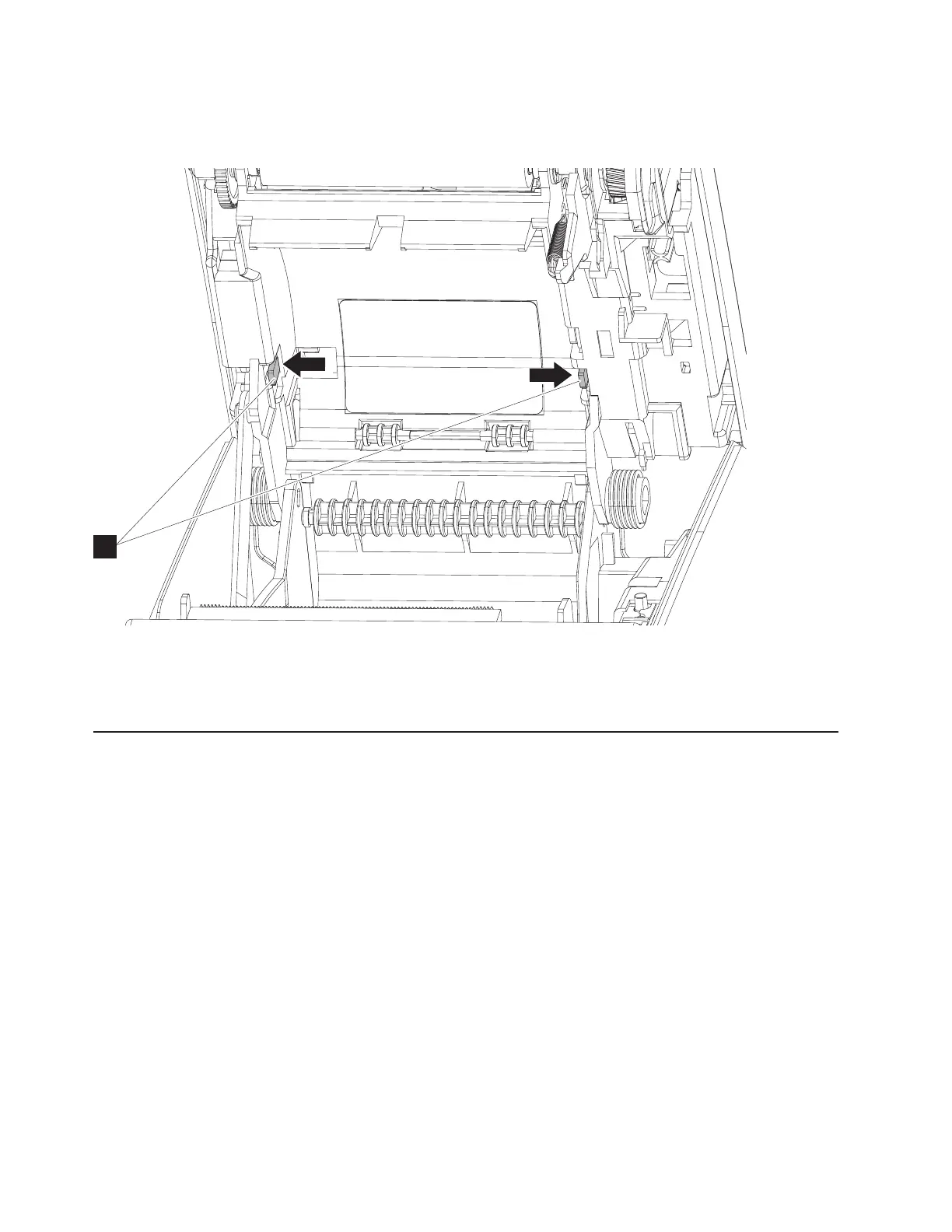

Figure 18. Removing the paper door cover
Removing and replacing FRUs
42
SureMark Hardware Service
