c. Rotate the interface card toward the printer until is clicks into place.
7. Turn the printer over and install the flex cable connector onto the logic cards connector.
Note: Ensure that the ground strap (A in Figure 31) makes contact with the tab (B in Figure 31) on
the logic card.
8. Replace the covers and the fiscal tray (see “Installing the main cover” on page 46, “Installing the paper
door cover” on page 42, and “Installing the fiscal tray” on page 29 for information on replacing the
fiscal tray and any covers that you removed).
9. Connect the signal and power cables to the printer and turn the printer on.
Removing the cutter motor and paper door assembly
This section provides the information needed to remove the cutter door and paper door assembly from a
fiscal or fiscal ready printer.
To remove the cutter motor and paper door assembly, complete the following steps:
Note: Do not disconnect any cables other than the cutter motor and paper door assembly cable from the
logic card.
1. Remove the fiscal tray (see “Removing the fiscal tray” on page 28 for information on how to remove
the fiscal tray).
2. Remove the paper door and main covers (see “Removing the paper door cover” on page 41 and
“Removing the main cover” on page 44 for information on removing the top and main covers).
3. Open the paper door assembly by pressing on the paper door release lever.
4. Remove the two screws (A in Figure 32 on page 59) that hold the cutter motor to the unit and
remove the cutter motor.
A
B

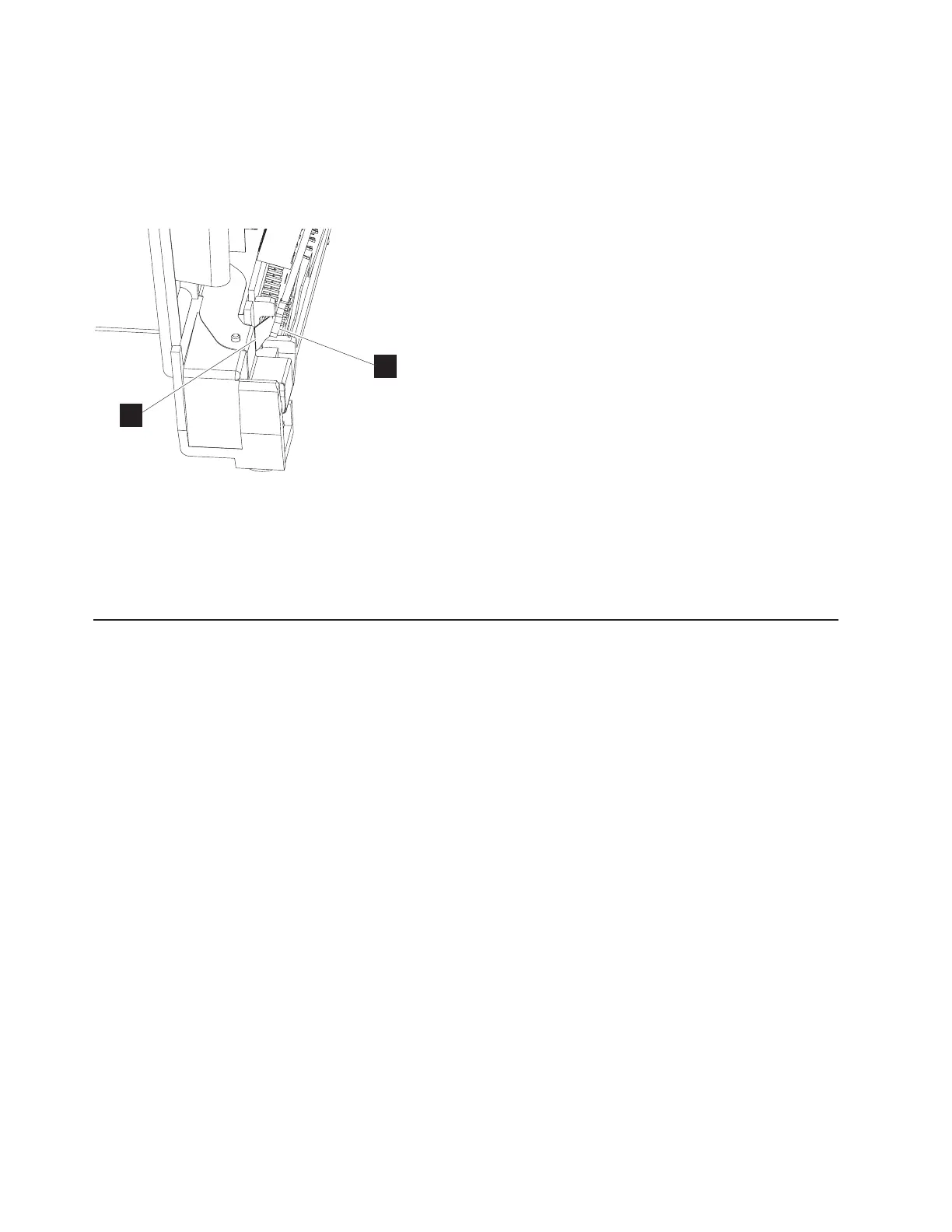

Figure 31. Grounding the logic card
Removing and replacing FRUs
58
SureMark Hardware Service
