FUNCTIONS FOR TRANSMIT
6-17
Previous view
DTMF Memory encoder
DTMF tones are used for autopatching, controlling oth-
er equipment, and so on. The transceiver has 16 DTMF
memory channels for storage of often-used DTMF
codes sequence of up to 24 digits.

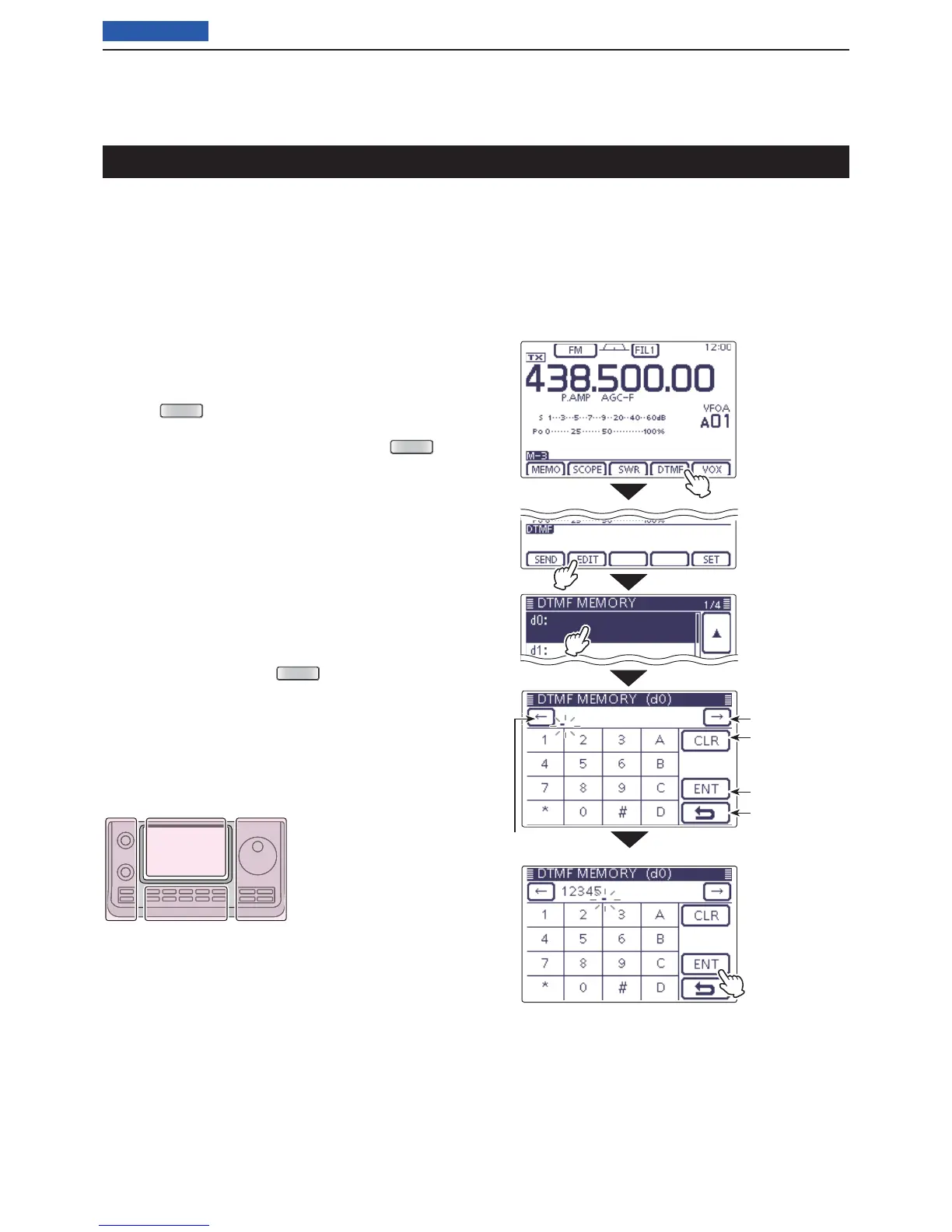

Programming a DTMF code D
Select the desired frequency band. (p. 3-5) q
On the Mode selection screen, select the FM or DV w
mode. (p.3-??)
• The DTMF encoder can be used in the FM or DV mode.
Push e
(C) one or more times to select the
“M-3” screen (M-3 menu).
• If your are operating in the DR mode, push
(C)
once or twice to select the “D-2” screen (D-2 menu).
Touch [DTMF]( r D)
to display the DTMF mode.
• The “DTMF” screen is displayed.
Touch [EDIT]( t D) to display the “DTMF MEMORY”
screen.
Touch the desired channel to select. y
• “d0” to “d9,” “dA” to “dD,” “d½” and “d#” are selectable.
Touch the u number or character to enter the desired
DTMF code.
After entering the DTMF codes, touch [ENT]( i D) to
save the channel, and return to the “DTMF MEMO-
RY” screen.
Touch [ o ](D) or push
(C) to return to the
“DTMF” screen.
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
L
eft
R
ight
C
enter
D
isplay
Move the cursor
Move the cursor
Delete a number
Enter
Cancel edit
Touch [ENT]
Touch [EDIT]
Touch [DTMF]
Touch the channel
Example “d0”
