CHAPTER 2:FEATURES
•
Introduction continued
XP652 MANUAL Introduction
517 Servo
•
A .03ms deadband amplifier insures accurate
neutral centering.
•
Low current drain.
•
Ball bearing supported ouput shaft
•
An indirect drive feedback potentiometer gives
additional protection from vibration.
•
Redesigned features include SMT circuitry.
•
3-pole ferrite cored motor.
SERVO FEATURES2.3

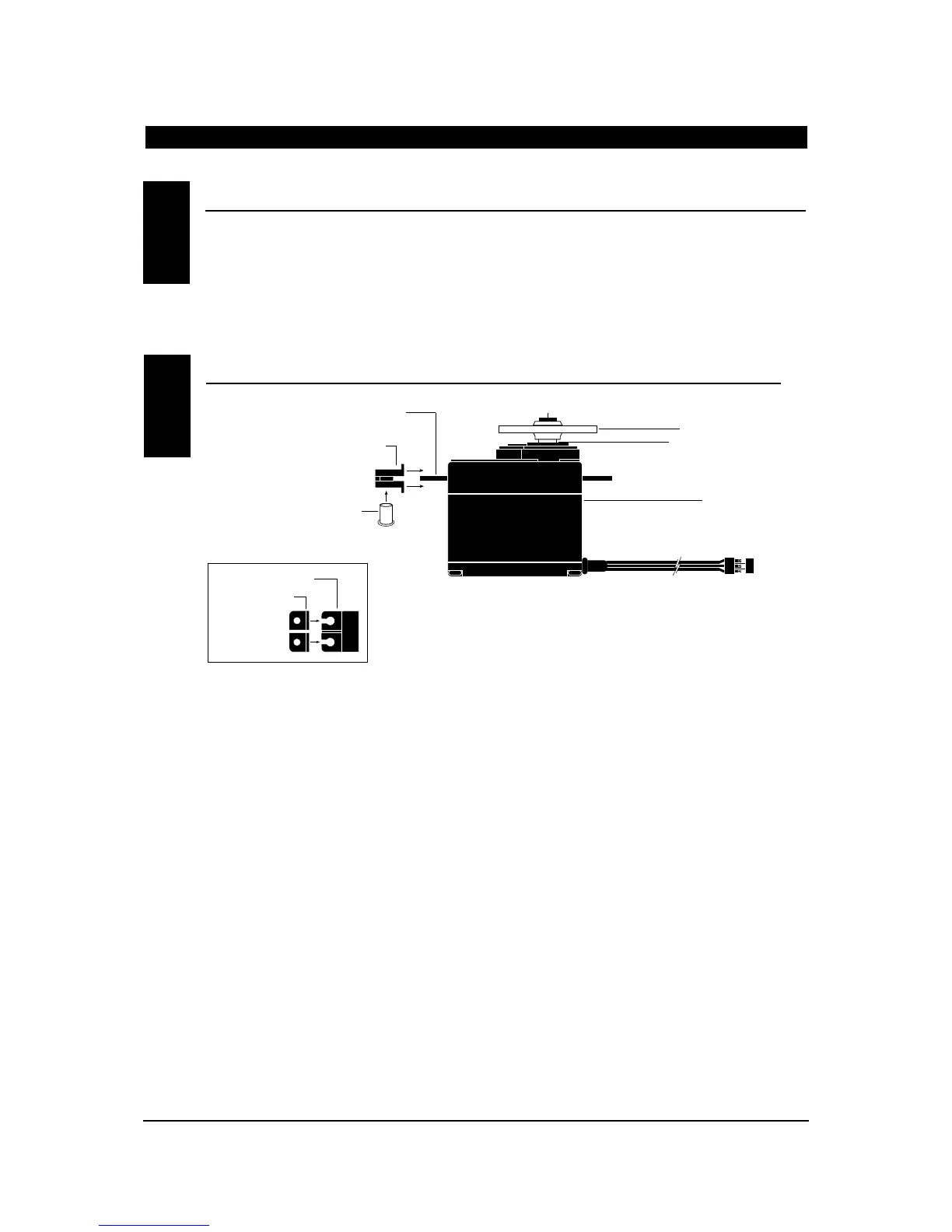

SERVO LAYOUT
2.4
Servo Mounting Flange
Rubber Grommets
Rubber Grommets
Servo Case
Servo Lead w/Connector
Servo Output Shaft
Servo Mounting Flange
Servo Arm/Horn
Servo Arm Retaining Screw
Servo Eyelet
Top View
To Next Page
