JR XP652 User Manual

The XP652 features a built-in trainer system. The
transmitter can be used as either a master (trainer)
or as a slave (trainee). The XP652 is compatible
with all other current JR radios that have built-in
trainer systems. An optional trainer cord is needed
(JRPA130).
1. Match the servo reversing and trims of both radios.
2. Plug the optional trainer cord into both
transmitters.
3. Turn on the master transmitter. (Note: The slave
radio must be left off.)
4. Test all the control functions on your aircraft with
the master radio.
5. Push the trainer button on the master transmitter
and check all the control functions with the slave
radio.
CHAPTER 5:TRAINER SYSTEM
•
Introduction
TRAINER SYSTEM5
D.S.C.
TRAINER
CORD INPUT
ON
TRAINERELEVATOR D/R
FLIGHT MODE
GEAR / MIX
0
1
HELICOPTER AIRPLANE
NET-E126
THROTTLE HOLD
FLAP / MIX
0
1
AILERON D/R
HE/AC
MODE CHANNEL INCREASE DECREASE
XF622
6 CHANNEL MULTI-DATA DISPLAY SYSTEM
ENTER CLEAR
+
-
FUNCTION 3-4 1-4 FUNCTION 1-2 2-3
MULTI
DATA
DISPLAY
VOLTAGE
INDICATOR
ON
TRAINERELEVATOR D/R
FLIGHT MODE
GEAR / MIX
0
1
HELICOPTER AIRPLANE
NET-E126
THROTTLE HOLD
FLAP / MIX
0
1
AILERON D/R
HE/AC
MODE CHANNEL INCREASE DECREASE
XF622
6 CHANNEL MULTI-DATA DISPLAY SYSTEM
ENTER CLEAR
+
-
FUNCTION 3-4 1-4 FUNCTION 1-2 2-3
MULTI
DATA
DISPLAY
VOLTAGE
INDICATOR
TRAINER
BUTTON
OPTIONAL
TRAINER CORD
(JRPA130)
MASTER TX
POWER SWITCH ON
SLAVE TX
POWER SWITCH OFF

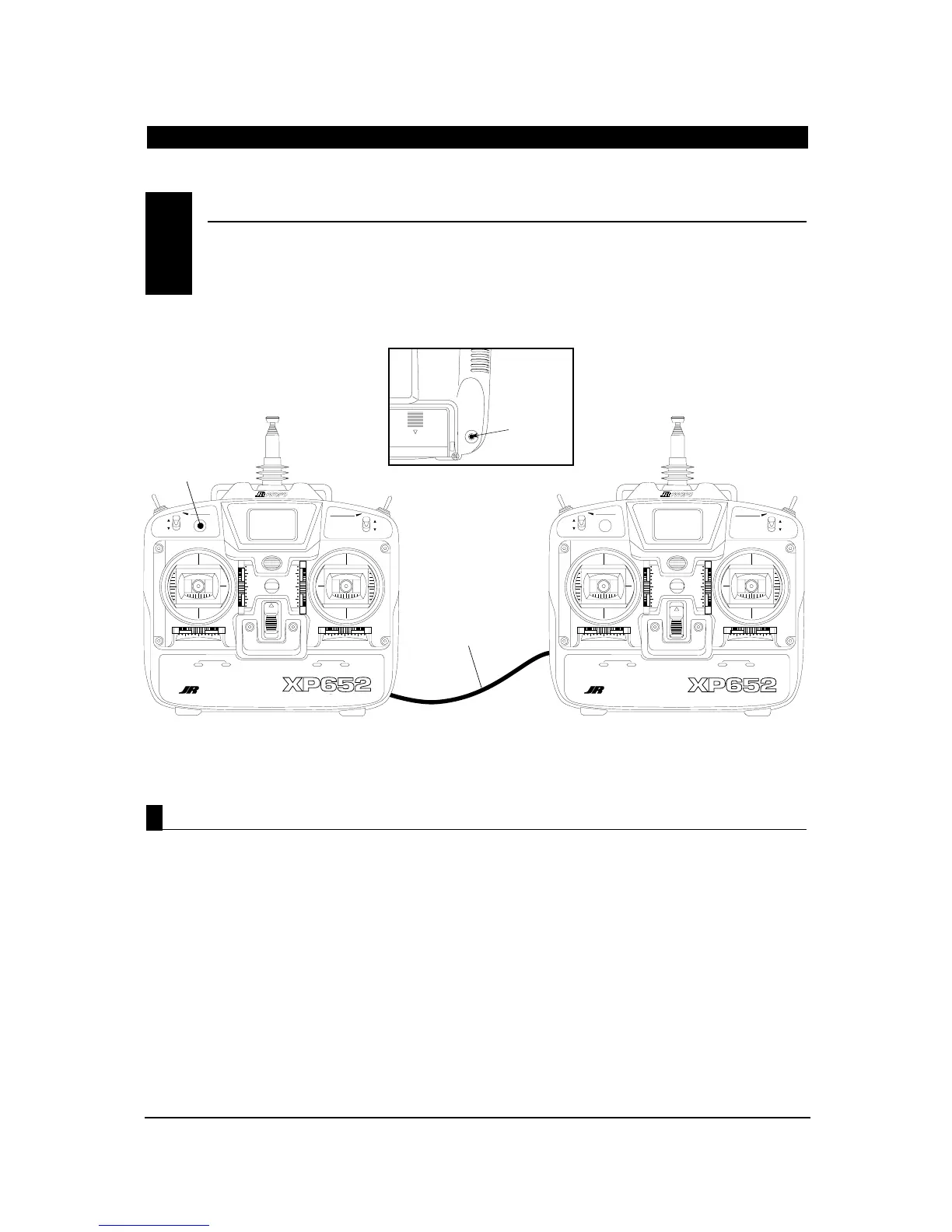

Operating the Trainer System
14
XP652 MANUAL Introduction
