XP652 MANUAL Airplane
CHAPTER 6:FUNCTIONS
•
Airplane continued
The dual rate switch position is selectable and the
elevator and aileron dual rates can be combined on
one switch. This allows a single switch to be used
when moving from high rates for wild maneuvers to
low rates for mild maneuvers. Exponential Rate
(EXP) is also available for both aileron and elevator
and works in conjunction with the dual rate function to
provide mild control movements around neutral while
allowing maximum servo travel. This reduces
sensitivity in the middle portion of the stick control
and still allows full travel at the end of the stick
control. Refer to section 7.3 for exponential rate
adjustment.
1. Press the MODE and CHANNEL buttons
simultaneously and hold.
2. Turn on the transmitter to enter the system mode.
3. Press the MODE button until D/R SW appears on
the screen.
4. Press the INCREASE button until the desired
switch position appears on the screen.
5. Press the MODE button to access the wing type
selection function.
6. To exit, press the MODE and CHANNEL buttons
simultaneously.

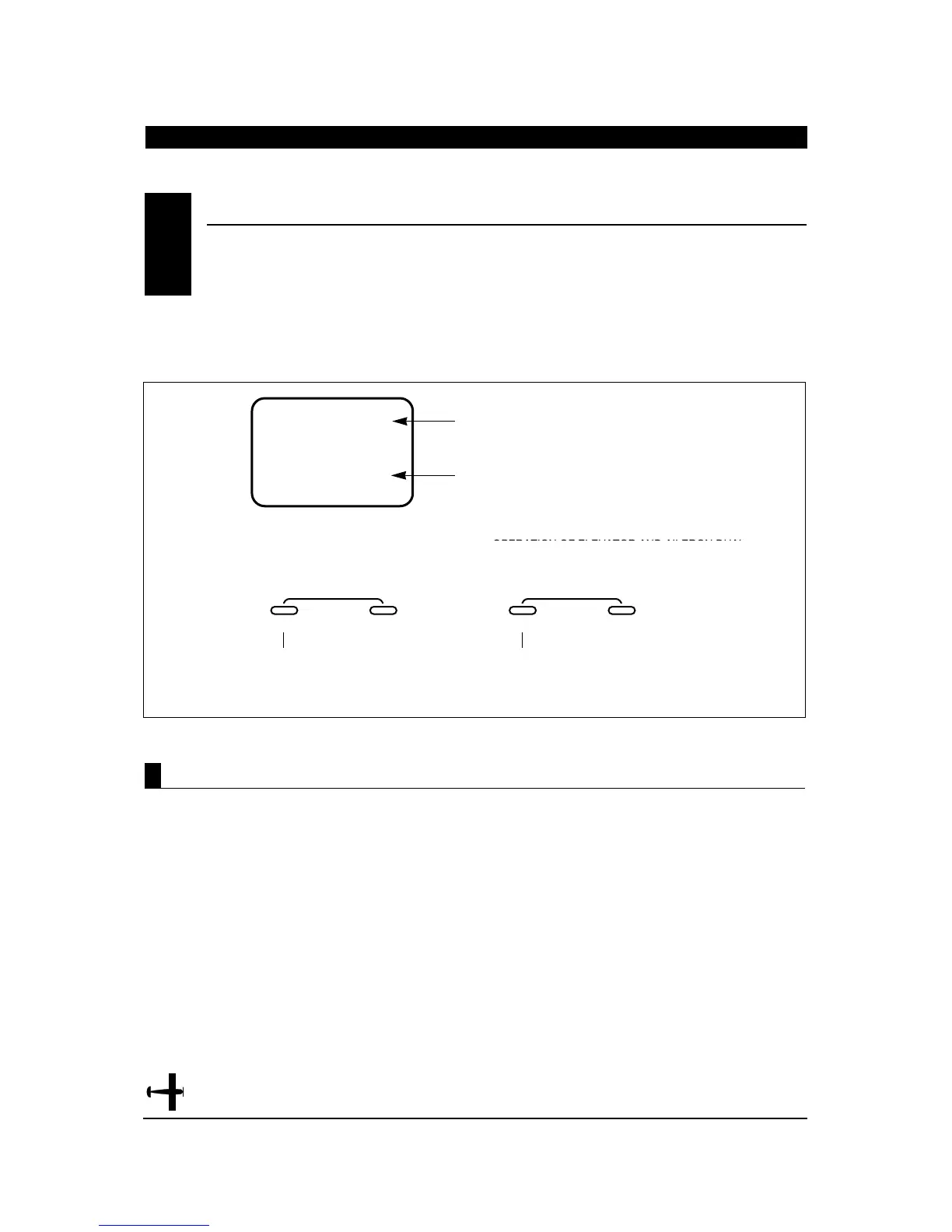

Accessing the Dual Rate Switch Selection Function
DUAL RATE SWITCH SELECTION
•
System Mode
6.3
–
+
MODE
ENTER
CHANNEL INCREASE
CLEAR
DECREASE
Press the INCREASE button
until the desired switch position
appears on the screen.
Press the MODE button
until D/R SW appears
on the screen.
E.A
SW
INDICATES DUAL RATE SWITCH FUNCTION
INDICATES SWITCH POSITION
E.A = ELEVATOR AND AILERON OPERATE INDIVIDUALLY
A. = OPERATION OF ELEVATOR AND AILERON DUAL
RATE ON AILERON DUAL RATE SWITCH
E. = OPERATION OF ELEVATOR AND AILERON DUAL
RATE ON ELEVATOR DUAL RATE SWITCH
CF = OPERATION OF ELEVATOR AND AILERON DUAL
RATE ON FLIGHT MODE SWITCH
D/R
COMBINED FUNCTION OPERATION OF ELEVATOR
AND AILERON DUAL RATE ON GEAR/MIX SWITCH
