FX-1/FX-1R Maintenance Manual

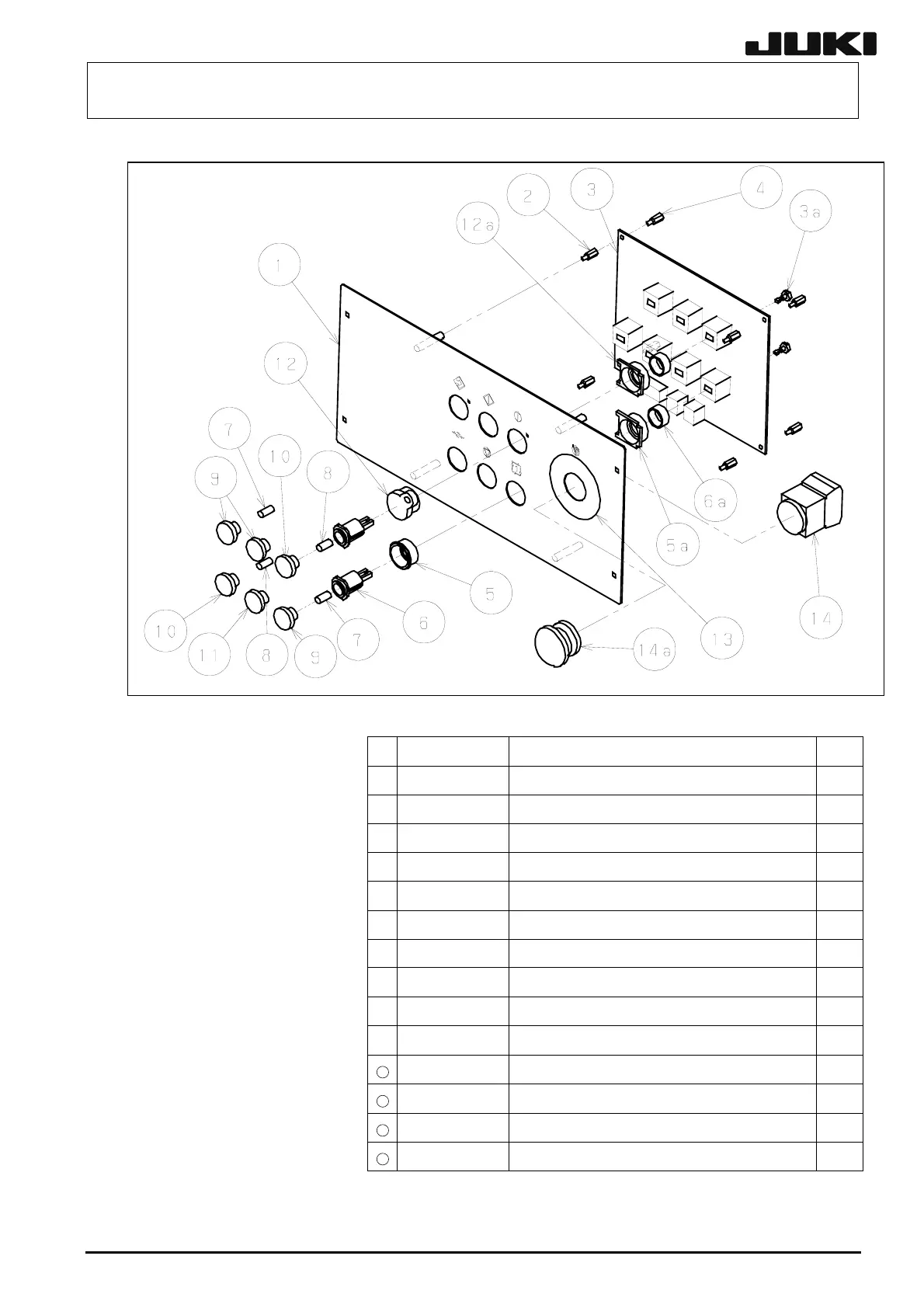

Part No. Part name Q’ty
c L180E321000 SWITCH PANEL OP 1
d HX00354000D Board stud 12 4
e 40012050 OPERATION SW PCB ASM 1
f HX00354000H Board stud 12.5 4
g HA005520030
Flat bezel, 25mmφ, aluminum silver
4
h HA005340020 Switch actuator 6
i HA00534006A LED, green 2
j HA005340060 LED, orange 2
k HA00552001B
Flat-type illumination lens, 25mmφ, green
3
l HA00552001A
Flat-type illumination lens, 25mmφ, yellow
2
11
HA005520010
Flat-type illumination lens, 25mmφ, red
1
12
HA00534004A
Bezel flat panel type with protective cover, 25mmφ
2
13
E1326715000 Emergency label 1
14
L833E7210A0 EMG SW ASM 1
10-2
Rev. 2.00
