FX-1/FX-1R Maintenance Manual
(3) Adjust the height of a newly mounted sensor.

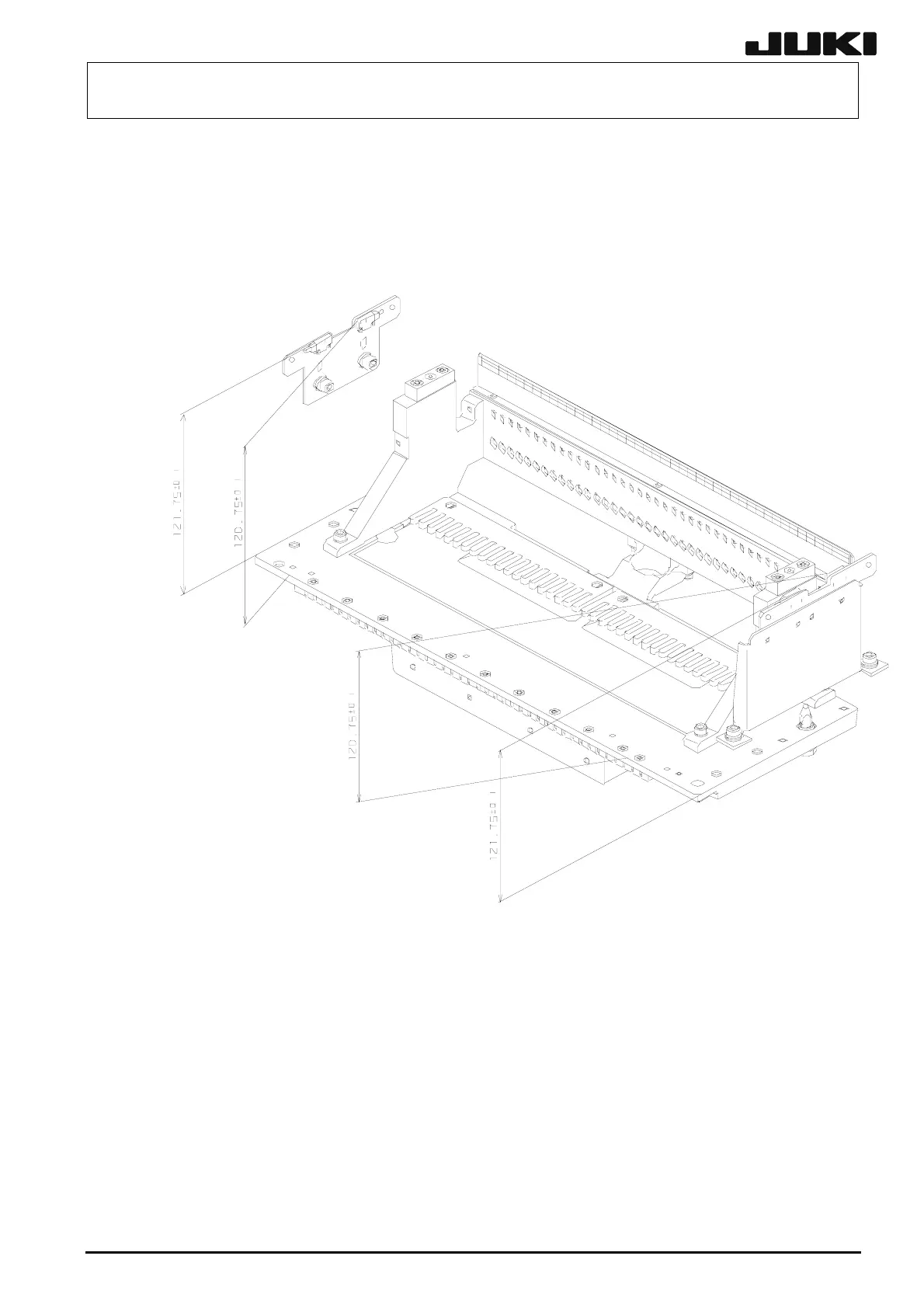

Adjust the distance between the top surface of the feeder bank and the top surface of the
sensor on the front side to 121.75±0.1mm and the distance between the top surface of the
feeder bank and the top surface of the sensor on the rear side to 120.75±0.1mm, and then
secure them.
Figure 11-10
(4) Check that the light axis is matched.
c Connect the connectors of the sensors to their specified positions and turn on the power to
the main unit.
d When the light axis is adjusted correctly, both the red and green LEDs on the light receiving
sensor will light up.
(The red LED is the operation indicator lamp and the green LED is the stability indicator
lamp.)
(5) With the feeder mounted, check that the sensor functions correctly.
11-6
Rev. 2.00
