FX-1/FX-1R Maintenance Manual
(4) After the air cylinder has been replaced, adjust the air cylinder rod fixing position.
With the slide plate open, visually adjust the position so that the hole on the ATC base matches
the center of the arc of the slide plate, then fix the rod supplied with the ATC cylinder to the
ATC joint.
At this time, apply Locktite 242 to the screw threads of the ATC joint.
ｽﾗｲﾄﾞﾌﾟﾚｰﾄの円弧とATCﾍﾞｰｽﾌﾟﾚｰﾄの
大図）穴の調整位置（拡
TC base
Positional relationship between the arc of the
slide plate and the hole on the ATC base
(Enlarged drawing)
Slide plate

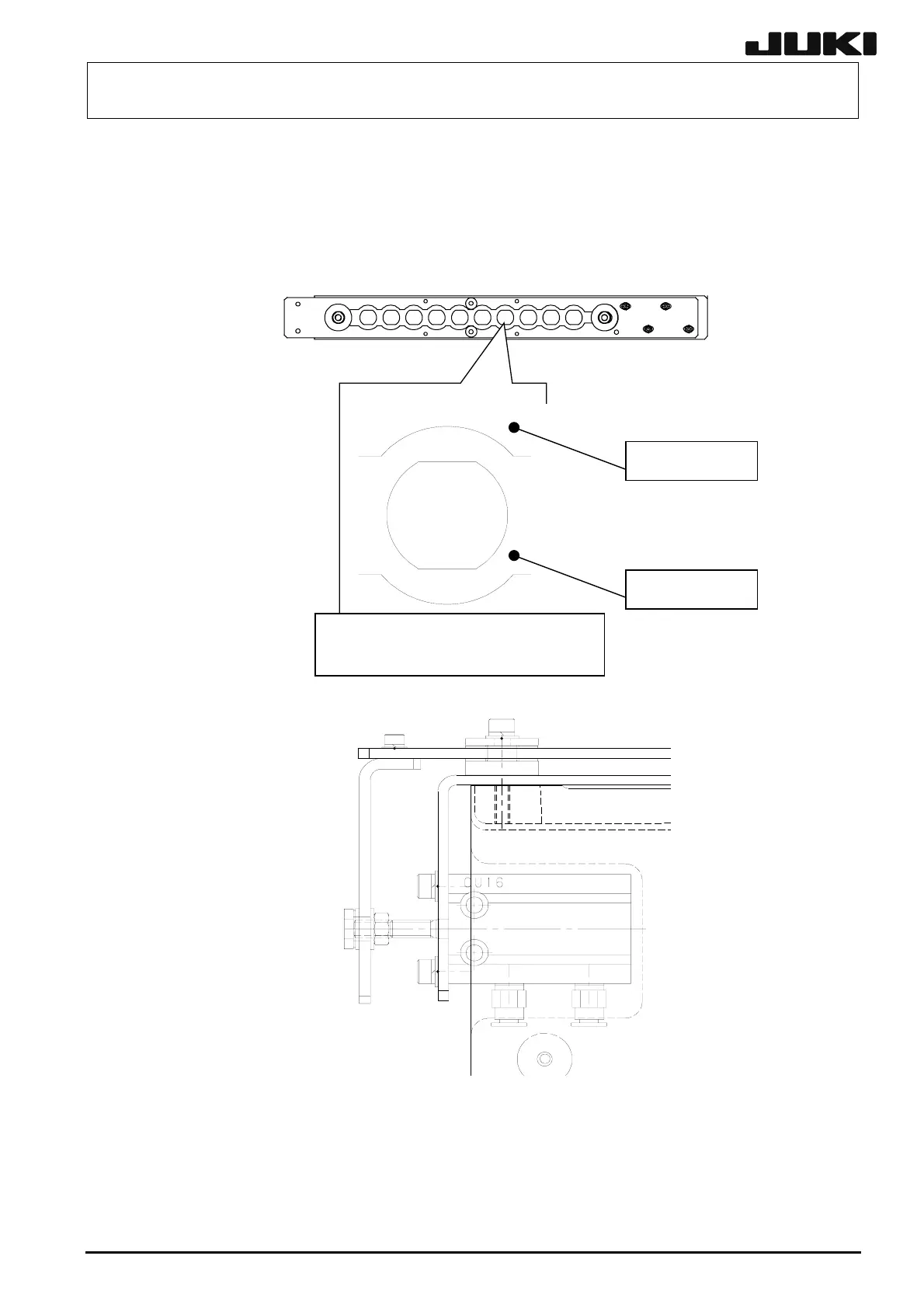

Figure 7-1-2 Adjustment Position when Fixed (Upper)/Side View when Fixed (Lower)
7-2
Rev. 2.00
