KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
5-19
Rev. 2.00
5-16. Replacing the Support Table Encoder
(1) Detach the support table in the same manner as described in 5-15, Replacing the Support
Table Motor.
(2) Loosen the screw , and move the torque support assembly in the arrow direction to loosen
the tension of the timing belt
(3) Loosen the screw to detach the encoder bracket assembly .
(4) Loosen the SEMS cap bolt (SL6030692TN) .
(5) Loosen the encoder's screw (the setscrew supplied with the encoder) and fixing screw to
detach the encoder .
(6) When installing a new support table ENC, reassemble the components in the order of steps (3)
to (1).
Adjust the flatness of the support table as described in 5-15 “Replacing the Support Table
Motor.”
After the components have been reassembled, obtain the support table offset from MS
parameters.

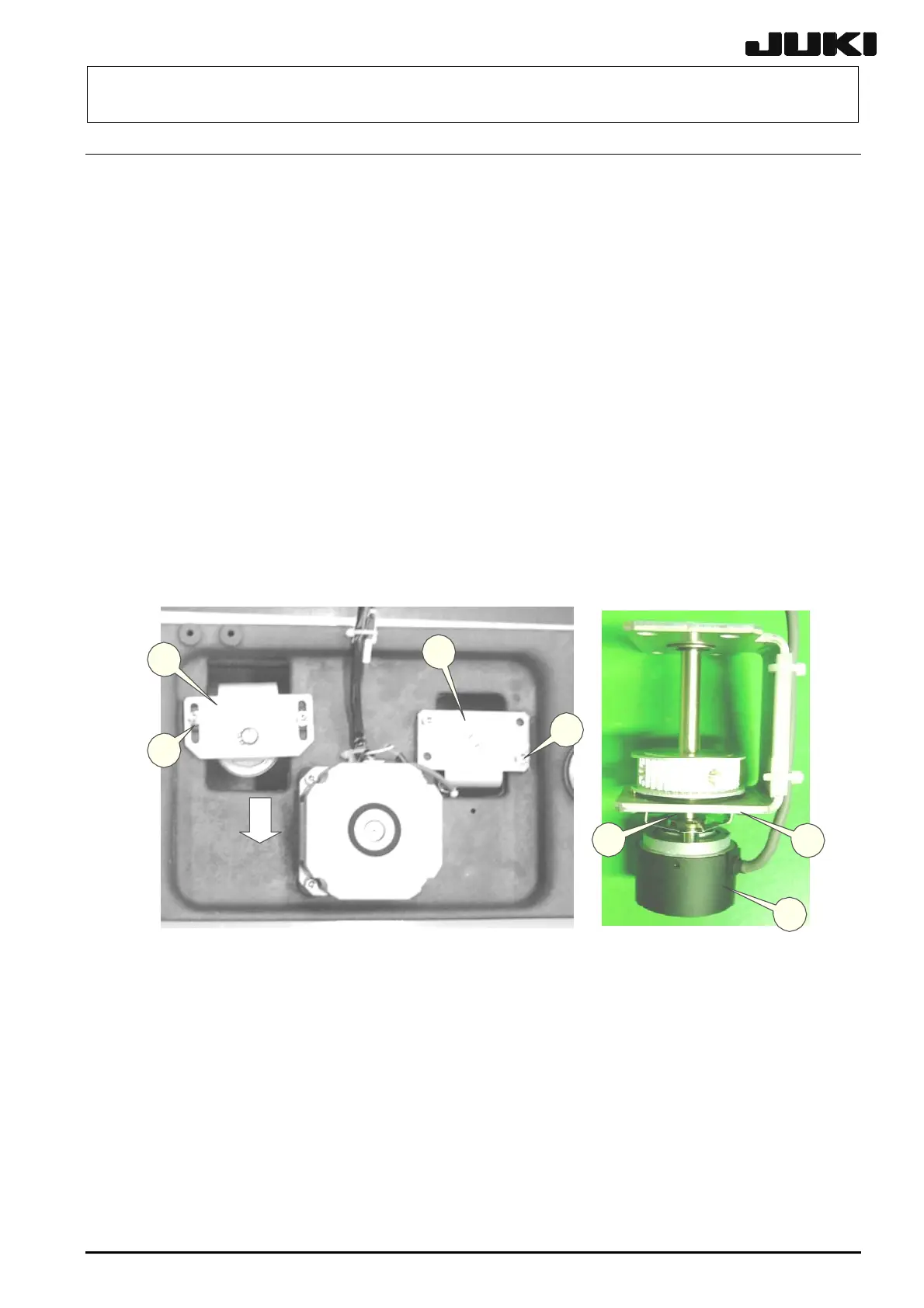

Figure 5-16-1
１
２
３
４
７
５
６
To Next Page
