KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
14-29
14-5. X-Y Unit
The X-Y unit is composed of AC servo driver that drives the X/Y-axes and a magnescale that
detects the movement position.
14-5-1. Structure of X-Y Unit
For the AC servo driver, one XY 4-axis driver (two AC servo drivers that drive the Y-axis and two
AC servo drivers that drive the X-axis) is mounted. Additionally, the magnescale interpolator for the
X/Y-axes is mounted on the left side of the control unit.

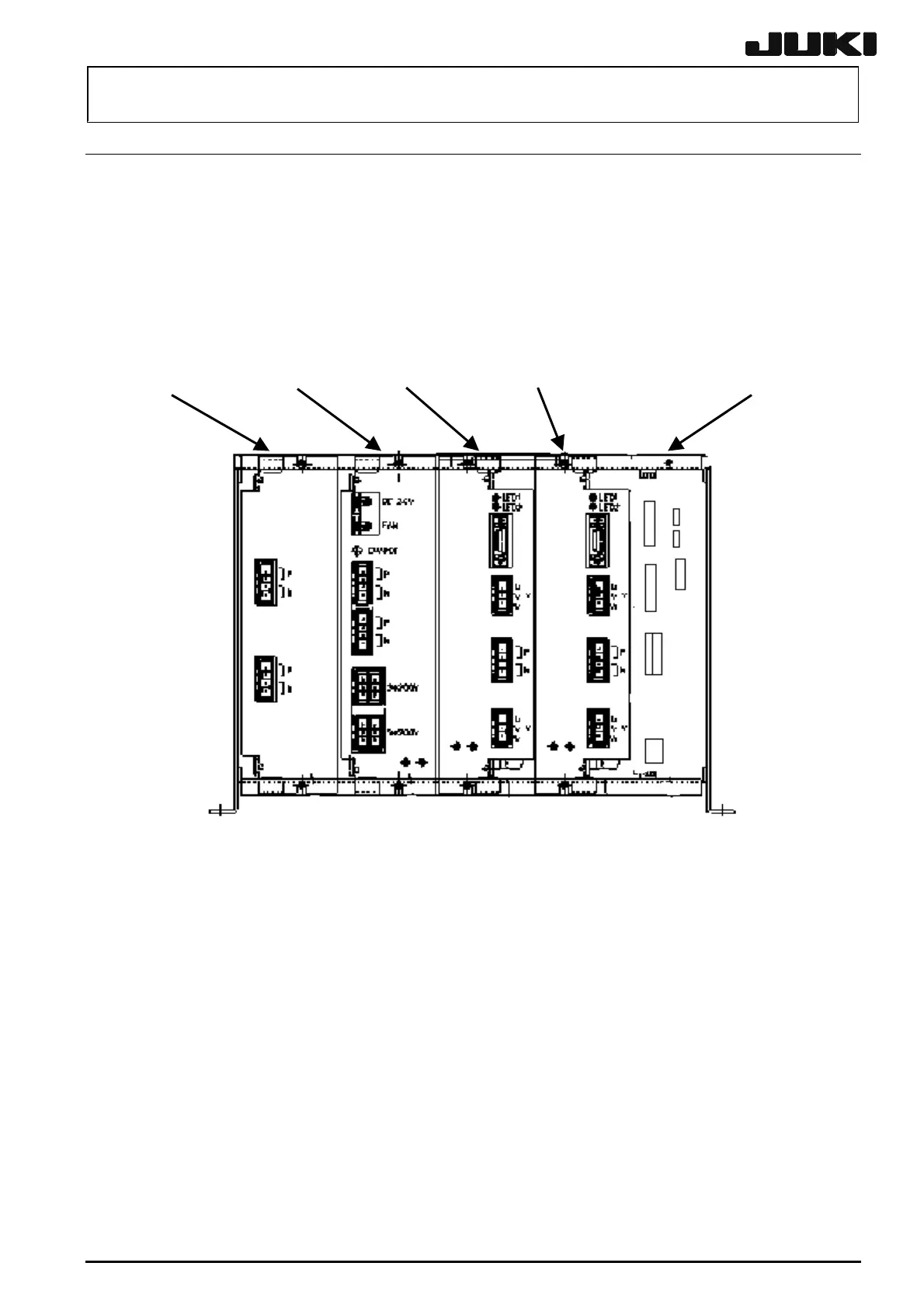

Capacitor board Power board X/Y-axes (L) X/Y-axes (R) Synqnet relay board + JGRMB
Figure 14-5-1-1 Structure of X-Y Unit
•
Motor outputs
The AC servo driver is connected to the board through the bus. Therefore, it can be
replaced simply by disconnecting or connecting the connector.
• X-axis: 600W
• Y-axis: 1140W
Rev. 2.00
