KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
9-3
(5) Replace the drive cylinders with new ones and put them upside down as shown in Figure 9-2-2.
<CAUTION> Carry out this work on the leveled table or the top surface of the bank.

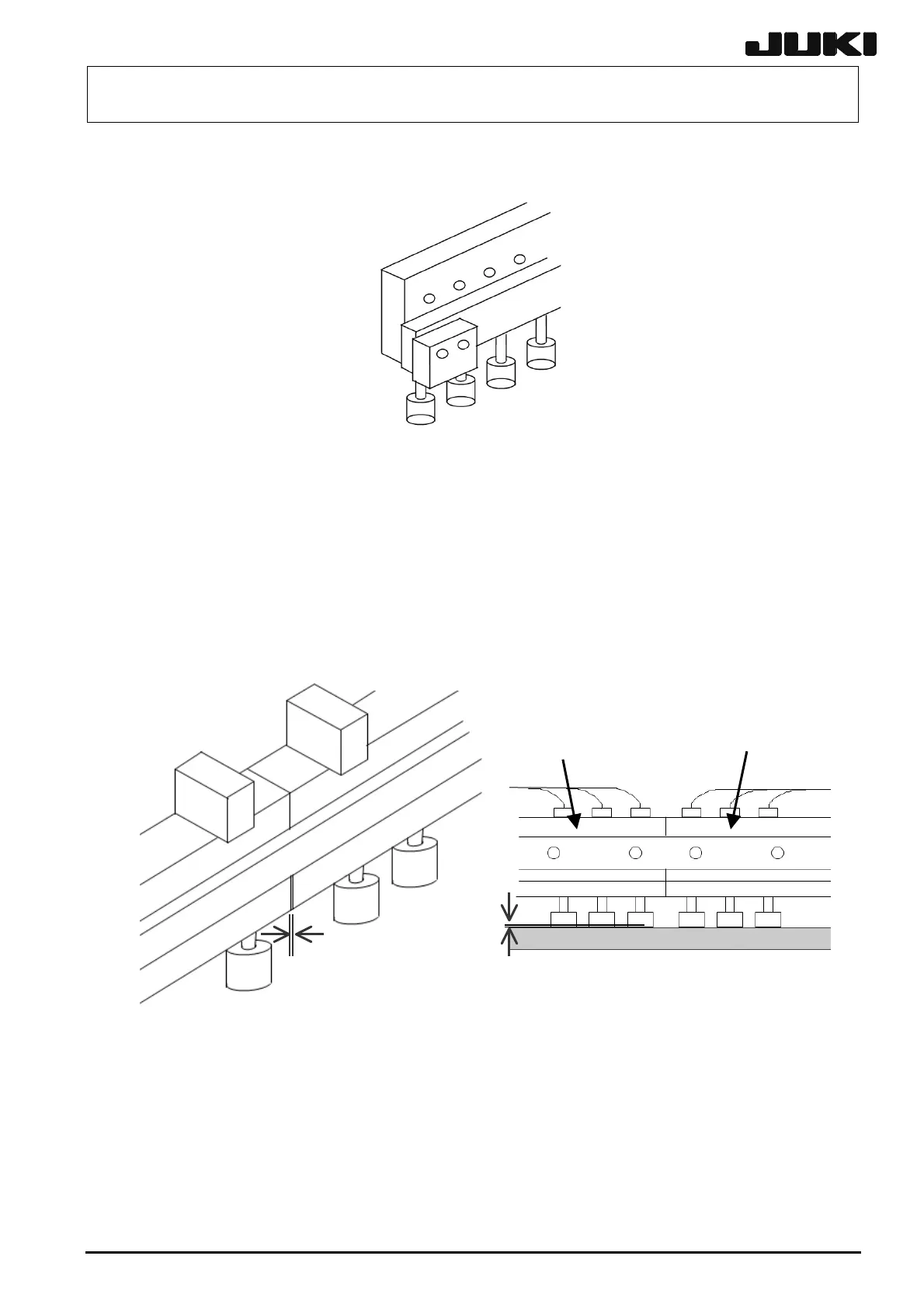

Figure 9-2-2
Carefully mount the drive cylinders in the horizontal direction so that there is no gap
between them. (See Figure 9-2-3.)
Carefully mount the drive cylinders in the vertical direction by placing the driver support
against the rib of the main unit so that there is no gap between the top surface of the
bank (or work table) and the driver cylinder. (See Figure 9-2-4.)
<CAUTION> Always replace the left and right drive cylinders one-by-one.
Figure 9-2-3 Figure 9-2-4
There shall be no gap.
There shall be no gap.
Newly mounted
cylinder
Cylinder not replaced
(6) Reassemble the components in the reverse order of disassembly.
