KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
1-13

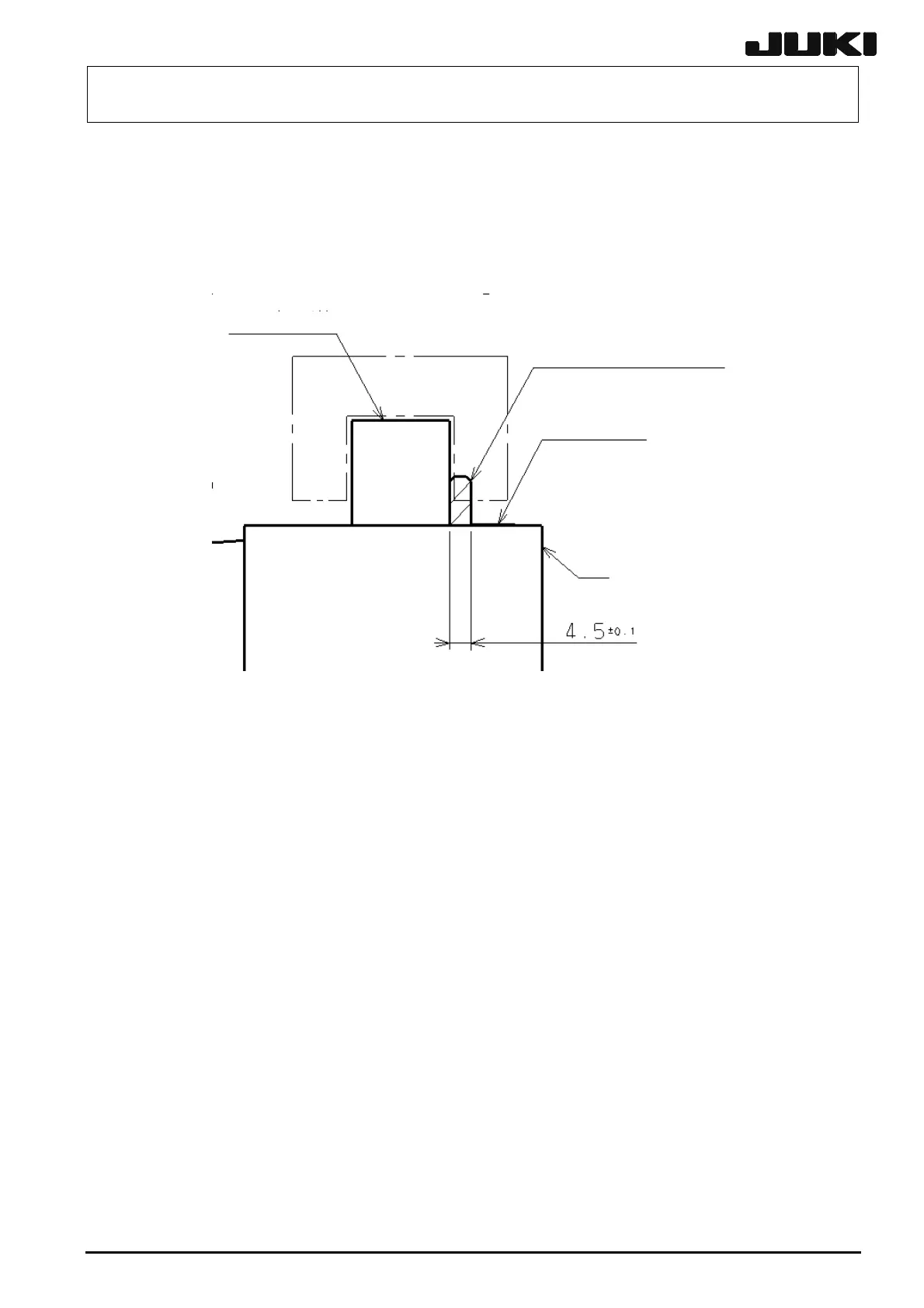

• Y-axis magnescale affixing procedure
c With the Y-axis affixing jig (part No. 40008105) made in contact with the side of the Linear
way Y and the top of the Y-axis, make the magnescale in contact with the Y-axis affixing jig to
affix the magnescale.
Y-axis
Magnescale
Linear way Y
Y-axis magnescale affixing jig
Magnescale affixing position (deviation in the horizontal direction):
Specification value ± 0.1 mm
Rev. 2.00
