KE-2050/2060 Maintenance Manual
16-2
16-2. Detaching the FPI (Rear)

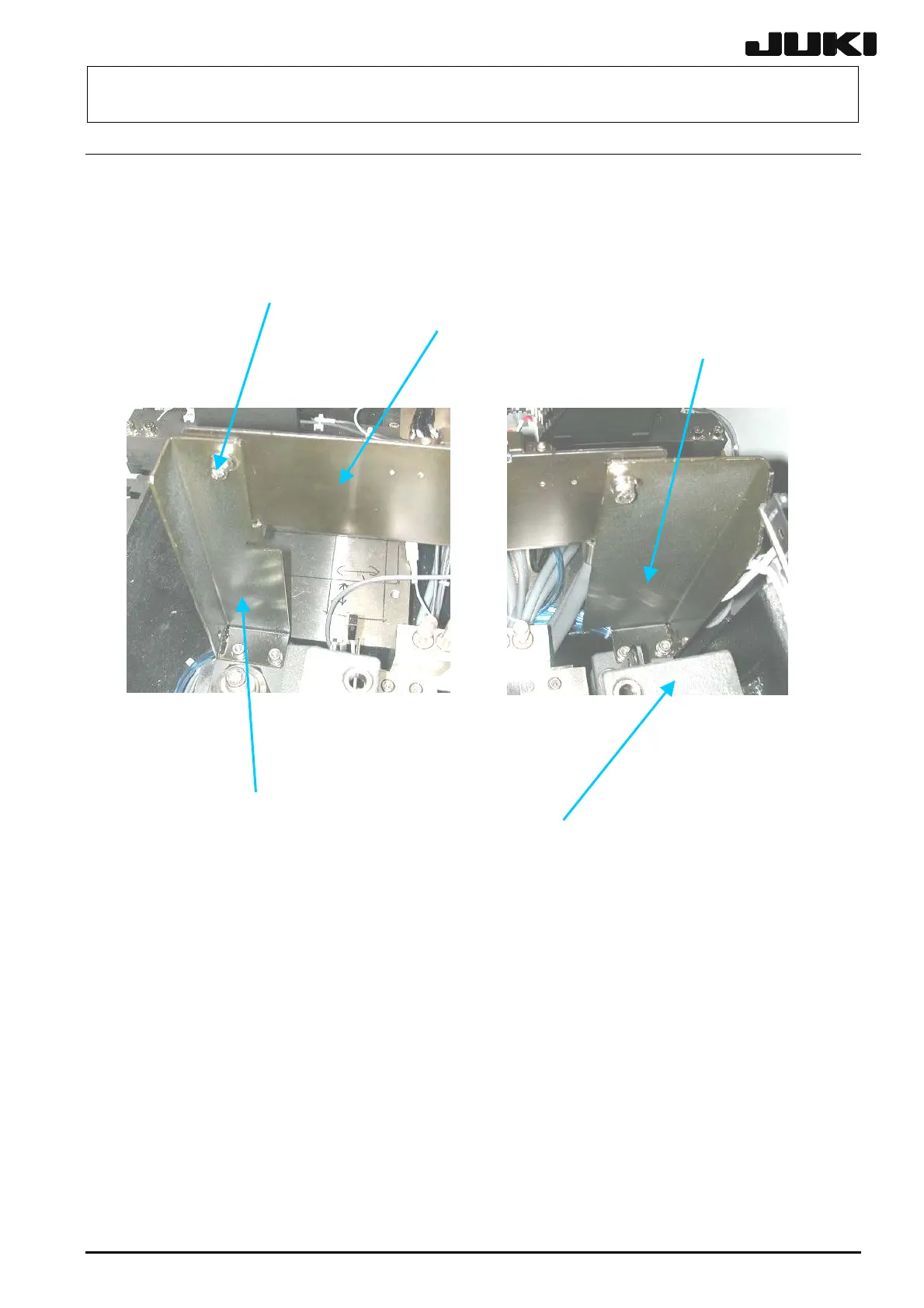

As shown in the figure below, the FPI (rear) is hung on the hook of the FPI side brackets RR/RL
fixed to the bank supporter (both sides), and fixed with the SEMS cap bolts (M6 × 12).
To detach the FPI, remove the two screws and slide it upward.
M6 × 12 SEMS cap bolt
Bank supporter RR
FPI side bracket RL
FPI side bracket RR
FPI assembly R
Rev. 2.00
