(5) Reassemble the components in the order of steps (3) to (1).
Drive belt tension must be adjusted as explained below.
<Procedure>
Loosen the screws fixing the IN and OUT motors to the rail stand F and screw ②
located on the top of the motor bracket A.
Tighten up the screw to increase the belt tension.
Measure the tension using a sonic belt tension meter (manufactured by UNITTA) and
adjust it to between 12 and 16N.
(Weight=4.0, Width=9.0, Span=75)
After the belt tension has been adjusted, tighten the screws to fix the motors to the rail
stand.
Note) Belt (tension) is stretched excessively.
→
Torque of the drive shaft increases.
Note) Belt (tension) is loosened excessively.
→
Teeth on the timing pulley are skipped.
(Noise is produced.)

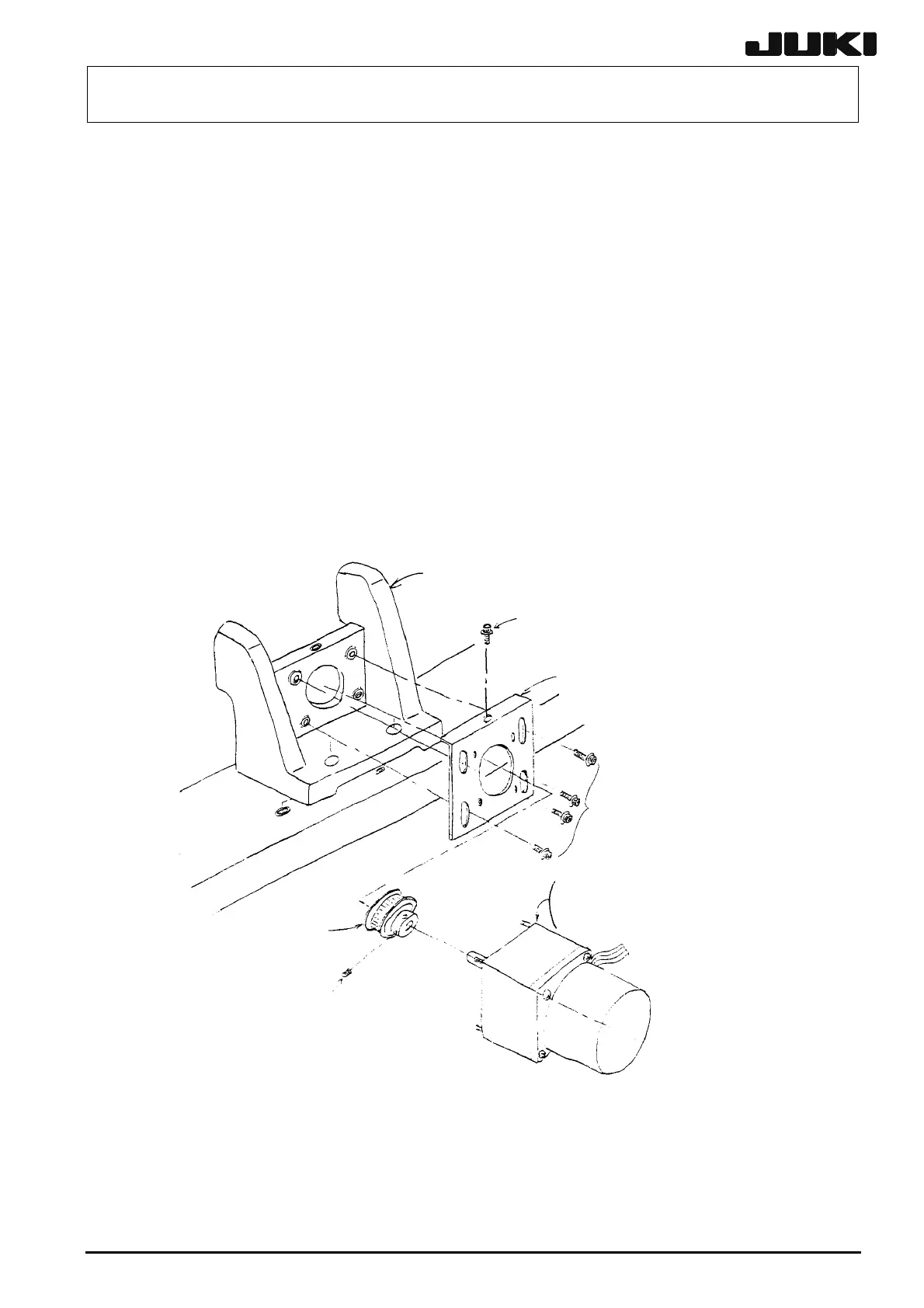

Figure 5-3-1
40000872
モータプーリS
SM8030602TP
止めねじ (× 4)
HM001700010
アヘッ
E9454729MA0 INモータ組
E9456729MA0 OUTモータ組
SM4054501SC 9454なべねじ(× 4)
WS0510002KN 9454ばね座金 (× 4)
SL6051092TN
セムス cap
E4597729000
モータブラケット
A
(
Ｌサイズ：
40001053)
SL6051092TN
セムスcap
(テンション調整用)
E4197729000
レールスタンドF（Ｌサイズ：40001040）
E4597729000
Motor bracket A
(Large-sized: 40001053)
SL6051092TN
SEMS cap bolt
SL6051092TN
SEMS cap bolt
(For tension adjustment)
E4197729000
Rail stand F (Large-sized: 40001040)
HM001700010 Gear head
E9454729MA0 IN motor assembly
E9456729MA0 OUT motor assembly
SM4054501SC 9454 flat head screw (× 4)
WS0510002KN 9454 spring washer (× 4)
40000872
Motor pulley S
SM8030602TP
Fixing screw (× 4)
To Next Page
