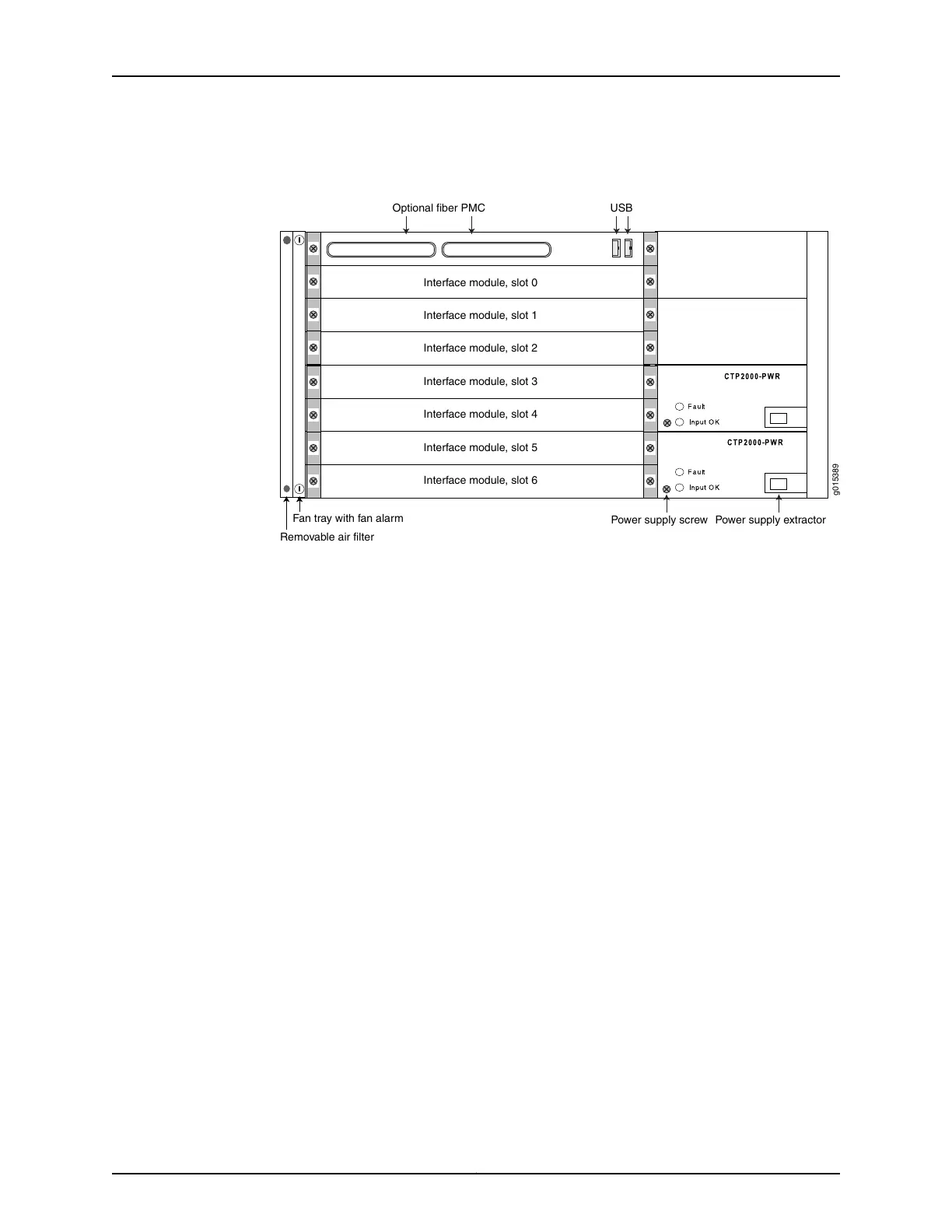

Figure 8: CTP2056 Chassis Containing the PP332 Processor (AC and DC
Version, Front View)
USB
Optional fiber PMC
Power supply screw Power supply extractor
Interface module, slot 0
Interface module, slot 1
Interface module, slot 2
Interface module, slot 3
Interface module, slot 4
Interface module, slot 5
Interface module, slot 6
Fan tray with fan alarm
Removable air filter
g015389
The front panel comprises the following components (see Figure 8 on page 8):
•
Interface modules—Frame processing and forwarding engines.
•
Processor module—Two slots are available on this module for an optional fiber Gigabit
Ethernet or Fast Ethernet PMC module. The primary SC connector is on the left side.
•
Power supply extractor—Push the button to eject the power supply module.
•
Fan tray and air filter.
The rear panel (RTM) comprises the following components (see Figure 9 on page 9
and Figure 10 on page 10):
•
PMC I/O—Both PMC slots are available to support compatible PMC I/O modules.
•
Clock module—Provides clock distribution between modules when the backplane is
in use by voice applications.
•
Power supply—Use a standard IEC power cord for the AC version. Use a 22-AWG fork
terminal connector for the DC version. Power redundancy is supported for the AC
version and the DC version. A single IEC power cord is sufficient to connect the
redundant AC power supply modules, which keeps the chassis turned on in the event
of failure of one of the power supplies.
There are no power switches on CTP2000 Series DC models, so a readily accessible
disconnect device must be provided as part of the electrical installation of the unit.
We recommend the 22-AWG wire for DC power terminals.
