CTP2000 T1/E1 Interface Module
The CTP2000 Series T1/E1interface module has RJ-48 ports numbered 0–7 left to right.
It provides a configurable eight-port E1 (2.048 MHz) or T1 (1.544 MHz) interface with AMI
or B8ZS encoding. (See Figure 12 on page 12.)

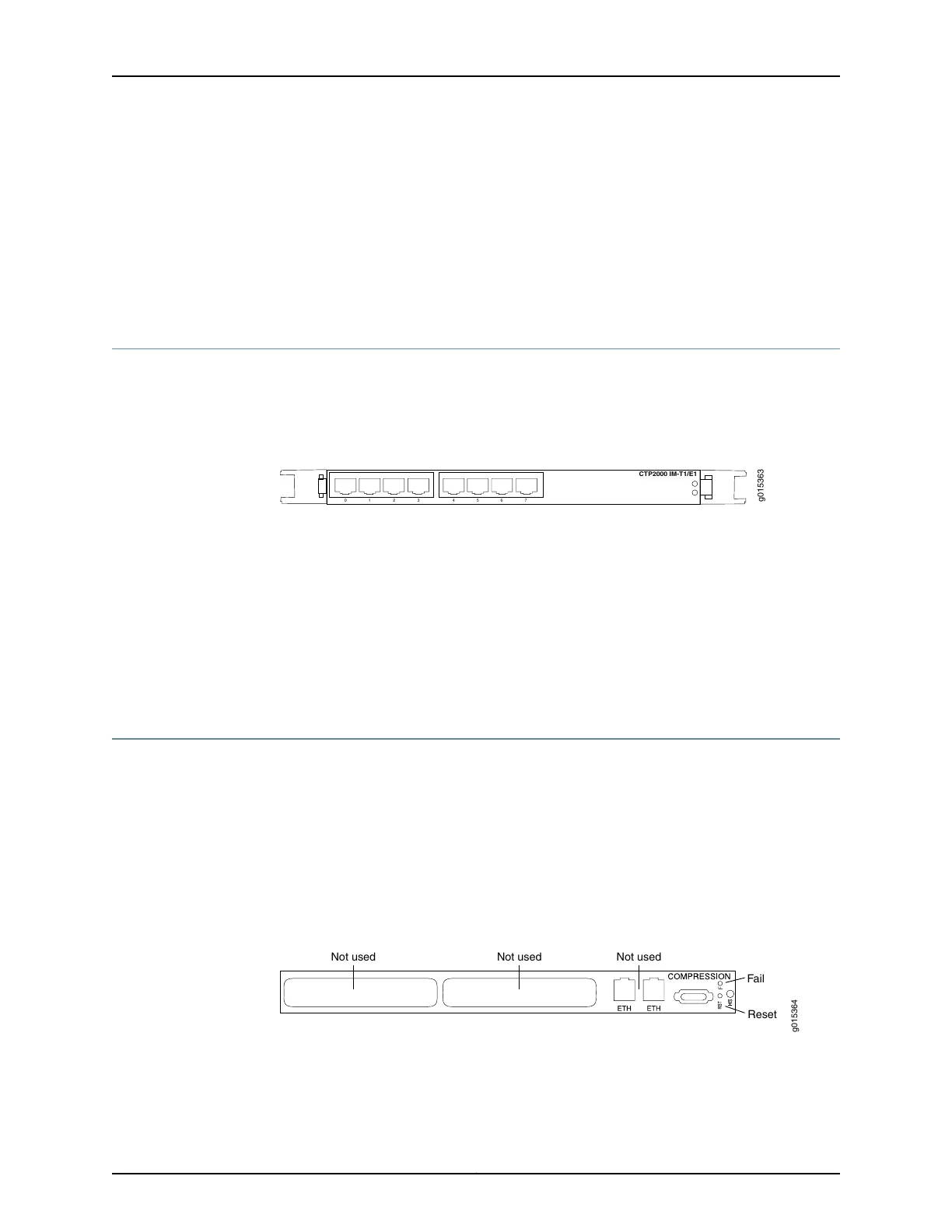

Figure 12: CTP2000 IM-8P-T1/E1 Interface Module
0 1 32
7654
CTP2000 IM-T1/E1
g015363
Related
Documentation
CTP2000 Serial Interface Modules on page 11•
• CTP2000 Compression Interface Module on page 12
• CTP2000 Compression 2 High Density Interface Module on page 13
• CTP2000 4WE&M Interface Module on page 14
• CTP2000 2W-FXS and 2W-FXO Interface Modules on page 19
• CTP2000 8P-IRIG Interface Module on page 25
CTP2000 Compression Interface Module
The CTP2000 Series compression interface module enables serial data and voice bundles
to be compressed and passed through a CTP2000 platform. (See Figure 13 on page 12.)
Voice bundles originating from the CTP2000 IM-8P-T1/E1, analog CTP2000 IM-4WE&M,
IM-2WFXS, and IM-2WFXO modules use the CTP2000 compression module to compress
the voice bundle. Voice bundles ranging from 1–24 channels on a T1 module, 1–30 channels
on an E1 module, and 1–8 channels on a 4WE&M module can be bundled and connected
through the compression module to compress the voice bundle and build the IP packet.
Figure 13: Compression Interface Module
Not used Not used Not used
Fail
Reset
g015364
The compression module supports these compression algorithms:
Copyright © 2017, Juniper Networks, Inc.12
