NOTE: If your laptop or PC does not have a DB-9 male connector pin and you want to
connect your laptop or PC directly to an EX Series switch, use a combination of the
RJ-45toDB-9 female adapter supplied with the switchand a USB toDB-9 male adapter.
You must provide the USB to DB-9 male adapter.
To connect an EX Series switch to a management console (see Figure 62 on page 154
and Figure 63 on page 154):
1. Connect one end of the Ethernet cable into the console port (labeled CON or
CONSOLE) on the EX Series switch.
For the location of the CON/CONSOLE port on different EX Series switches:
•
See Rear Panel of an EX2200 Switch.
•
See “Rear Panel of an EX3200 Switch” on page 8.
•
See “Rear Panel of an EX4200 Switch” on page 11.
•
See Front Panel of an EX4500 Switch.
•
See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch.
•
See Routing Engine (RE) Module in an EX8216 Switch.
2. Connect the other end of the Ethernet cable into the console server (see Figure 62
on page 154) or management console (see Figure 63 on page 154).
To configure the switch from the management console, see“Connecting and Configuring
an EX Series Switch (CLI Procedure)” on page 165 or “Connecting and Configuring an EX
Series Switch (J-Web Procedure)” on page 167.

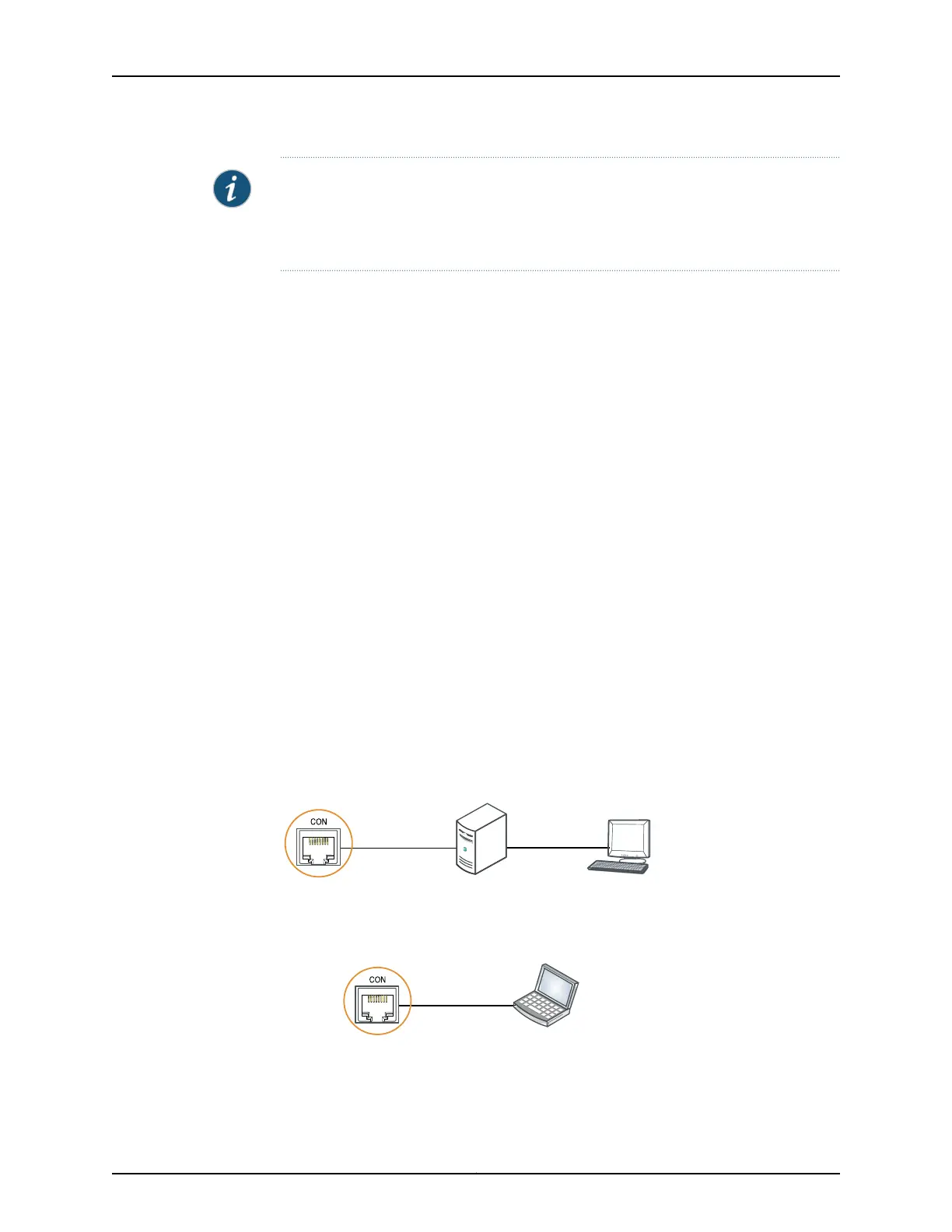

Figure 62: Connecting an EX Series Switch to a Management Console
Through a Console Server
g020547
Console server
PC
To Console port
(on the switch)
Figure 63: Connecting an EX Series Switch Directly to a Management
Console
g020570
Laptop CPU
To Console port
(on the switch)
Related Topics Connecting an EX Series Switch to a Network for Out-of-Band Management on page 152•
• Console Port Connector Pinout Information for an EX Series Switch on page 41
Copyright © 2010, Juniper Networks, Inc.154
Complete Hardware Guide for EX3200 and EX4200 Ethernet Switches
