10/100/1000Base-T Gigabit Ethernet ports, some or all of which are enabled for
Power over Ethernet (PoE)
•
100Base-FX/1000Base-X SFP ports for use with fiber-optic connections
•
Uplink module ports—SFP, SFP+, or XFP ports (The uplink module is an optional
feature.)
•
LCD panel and the LCD navigation buttons
•
Chassis status LEDs
•
Network port LEDs

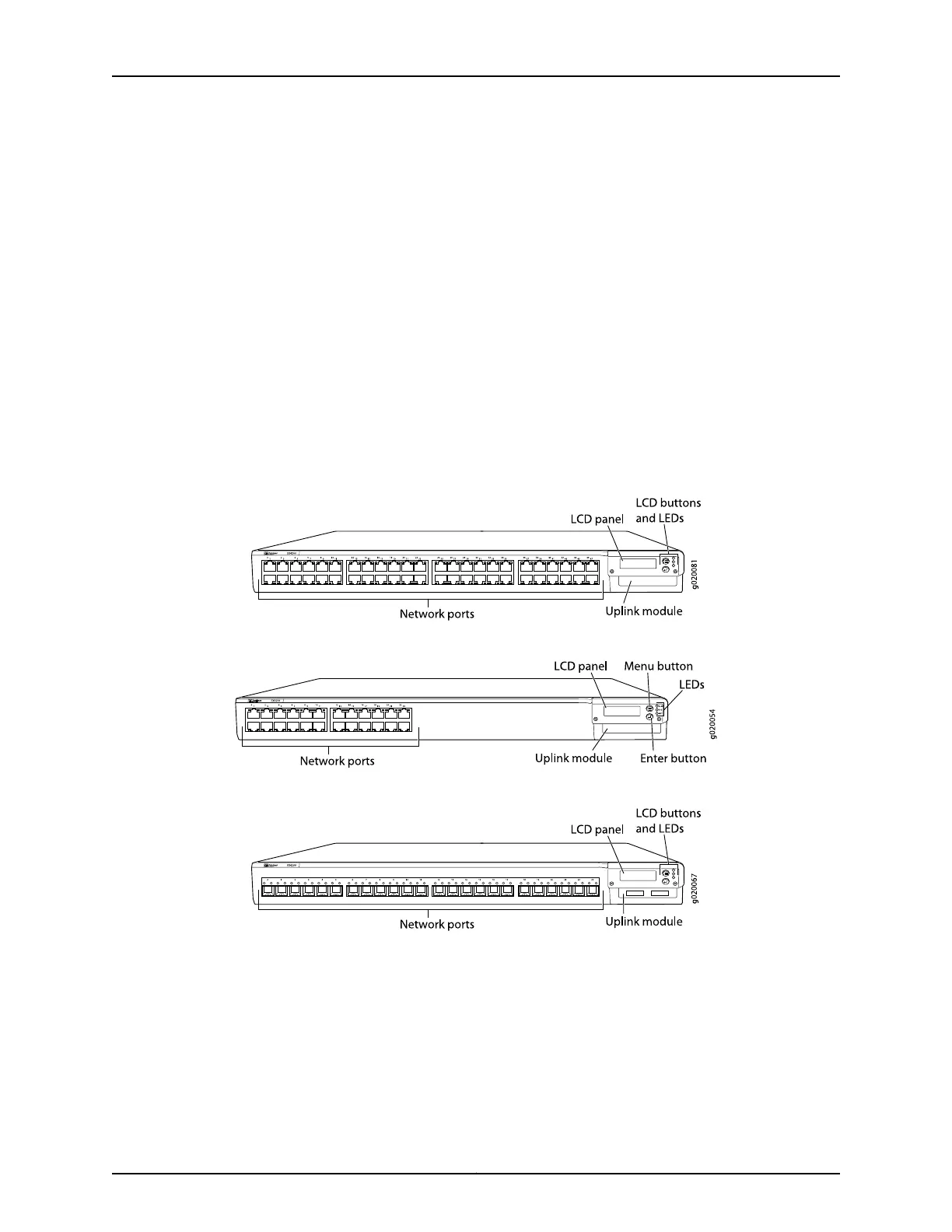

Figure 4 on page 10 shows the front panel of an EX4200 switch with 48 Gigabit Ethernet
ports. Figure 5 on page 10 shows the front panel of an EX4200 switch with 24 Gigabit
Ethernet ports. Figure 6 on page 10 shows the front panel of an EX4200-24F switch with
24 SFP ports for use with fiber-optic connectors.
Figure 4: EX4200 Switch with 48 Gigabit Ethernet Ports
Figure 5: EX4200 Switch with 24 Gigabit Ethernet Ports
Figure 6: EX4200-24F Switch with 24 SFP Ports
Related Topics Chassis Status LEDs in EX4200 Switches on page 20•
• Rear Panel of an EX4200 Switch on page 11
• Network Port LEDs in EX3200 and EX4200 Switches on page 21
• Network Port Connector Pinout Information for an EX3200 or EX4200 Switch on
page 40
• LCD Panel in EX3200 and EX4200 Switches on page 13
