To save settings or restore default settings from the front panel:
1. Press the MENU key and use the PREV and NEXT keys to select the SYSTEM submenu.
2. Press ENTER and use the PREV and NEXT keys to select the INIT MODE submenu.
3. Press ENTER, and use the PREV and NEXT keys to select either SAVE DATA to save your
current settings, or DEFAULT to return to default settings.
4. Press ENTER to save your selection (refer to Figure 4-33).

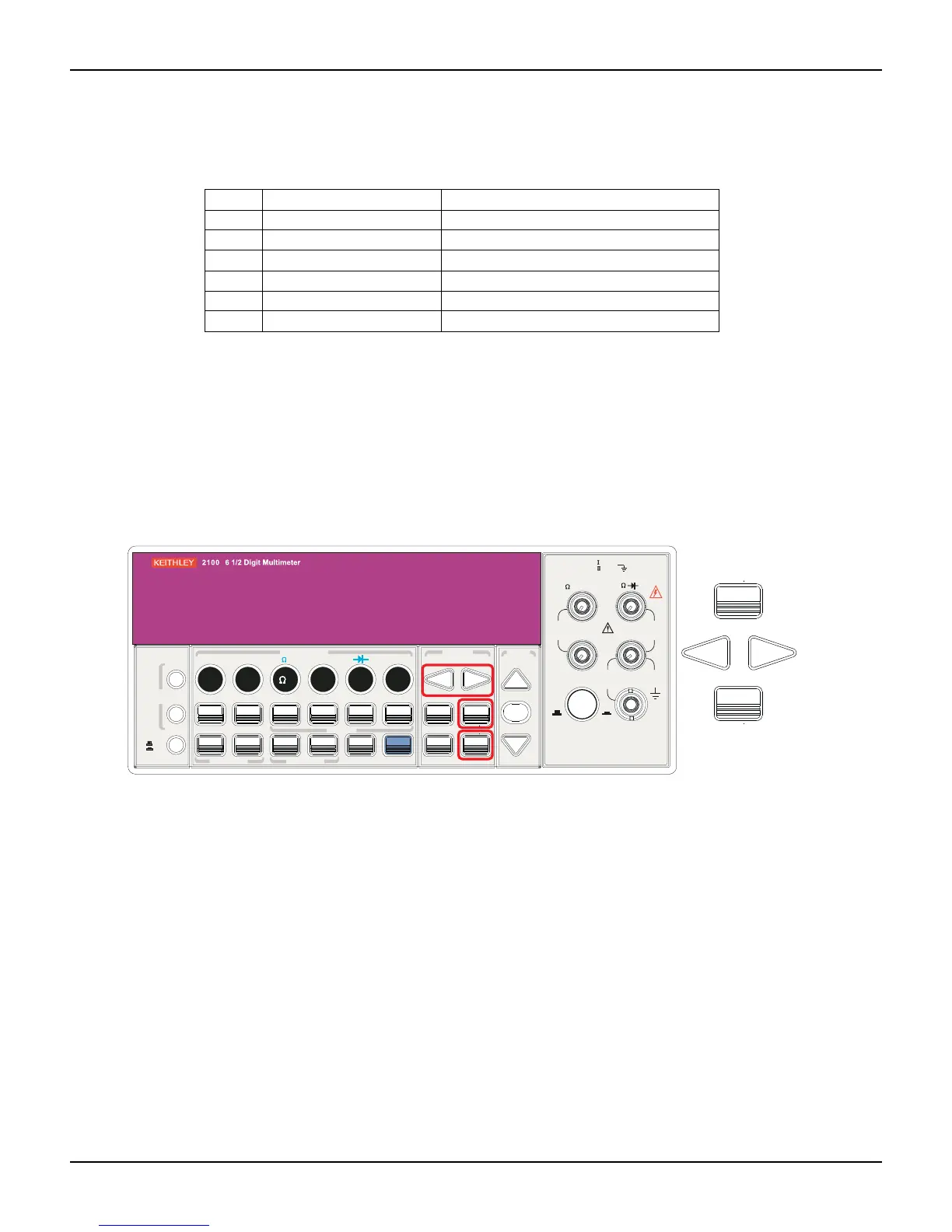

Figure 4-33
Saving or restoring default settings
Language
The Model 2100 Digital Multimeter supports two languages: Default and A34401.
To select a language:
1. Press the MENU key, and use the PREV and NEXT keys to select the SYSTEM 
submenu.
2. Press ENTER, then use the PREV and NEXT keys to select the LANGUAGE submenu.
3. Press ENTER, then use the PREV and NEXT keys to select either Default or A34401.
Press ENTER to save your selection (refer to Figure 4-34).
Table 4-5
Valid values of Save Data
No. Items of Save Data Contents
1Continuity
Threshold resistance
2 Diode
Boundary voltage
3 Temperature
Sensor type & units
4
dBm Reference resistance
5
mx + B Values: m, B
6
Reading hold Sensitivity band
FILTER
NEXT
PREV
DIGITS
RATIO
%
MIN/MAX
NULL
ESC
ENTER
AUTO
SINGLE
TRIGGER
STORE
RECALL
LOCAL
SHIFT
CONFIG
MENU
AUT O
DCV
ACV
22
FREQ
CONT
TEMP
4 WIRE
RATIO
V
INPUT
PEAK
200V
PEAK
HI
LO
PEAK
500V
3A
RMS
INPUTS
3A 250V
FRONT/REAR
AMPS
R
1000V
REF
CAT 1000V
CAT 600V
LOCK
SETUP
ACV
22
FUNCTION
DCI ACI
4
PERIOD
LIMITS MX+B
dB
EXTRIG
HOLD
MATH
TRIGGER MEMORY
dBm
RANGE
DISPLAY
NEXT
PREV
POWER
OFF
ON
SENSE
F
NEXT
PREV
ENTER
MENU
