P/N 810497 KXP Setup Manual
KMS
SETUP
m
acHine
n
umBeR
S
etuP
1.
From the SETUP menu, press
MACHINE NUMBER SETUP
to enter the MACHINE NUMBER SETUP screen.

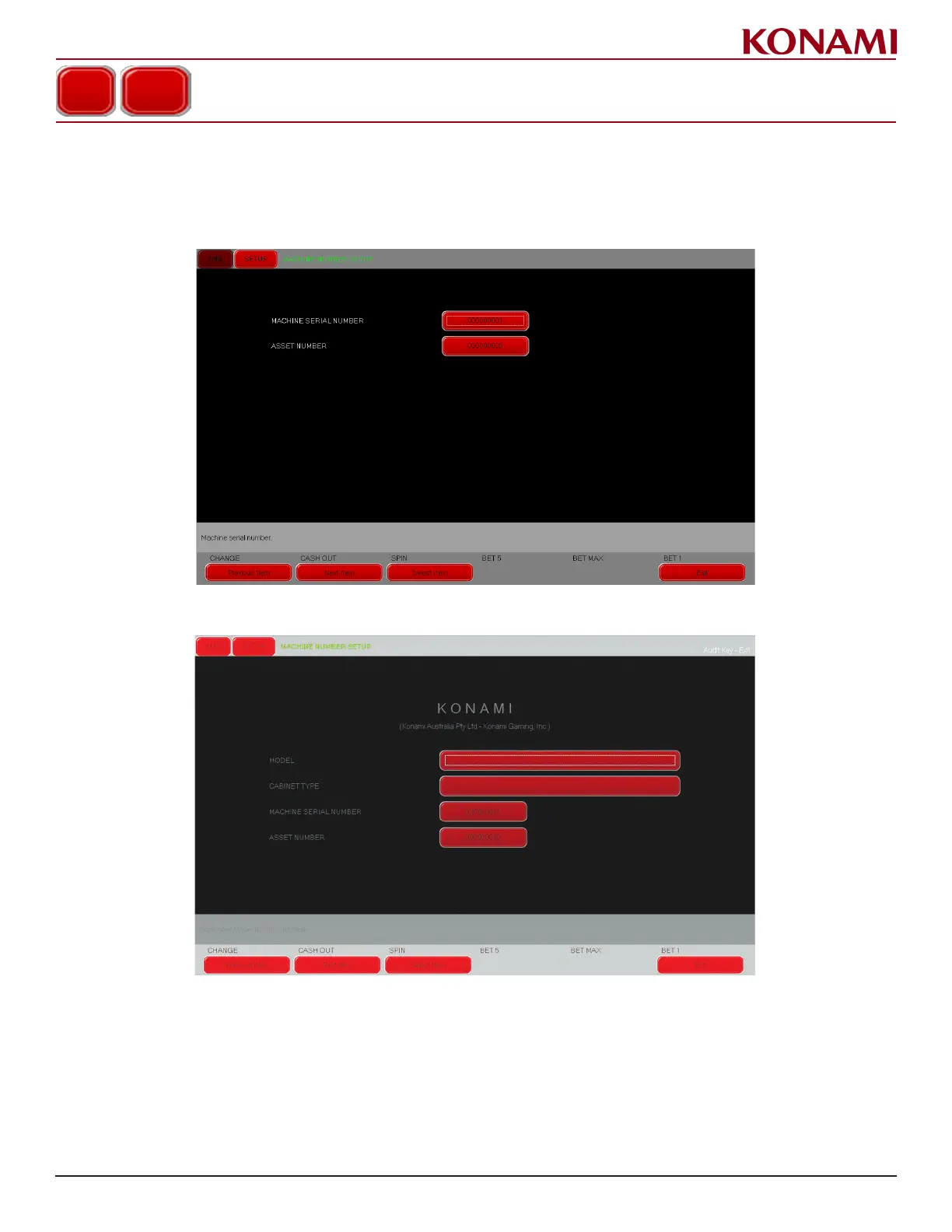

The following screen is displayed.
Screens may be a little different depending on whether the game is domestic or international.
M
achine
n
uMBer
s
eTuP
(D
oMesTic
)
M
achine
n
uMBer
s
eTuP
(i
nTerna
Tional
)
MACHINE NUMBER SETUP
39
