79
© 2019 Konami Gaming Inc.P/N 810497 KXP Setup Manual
KMS
DIAGNOSTIC

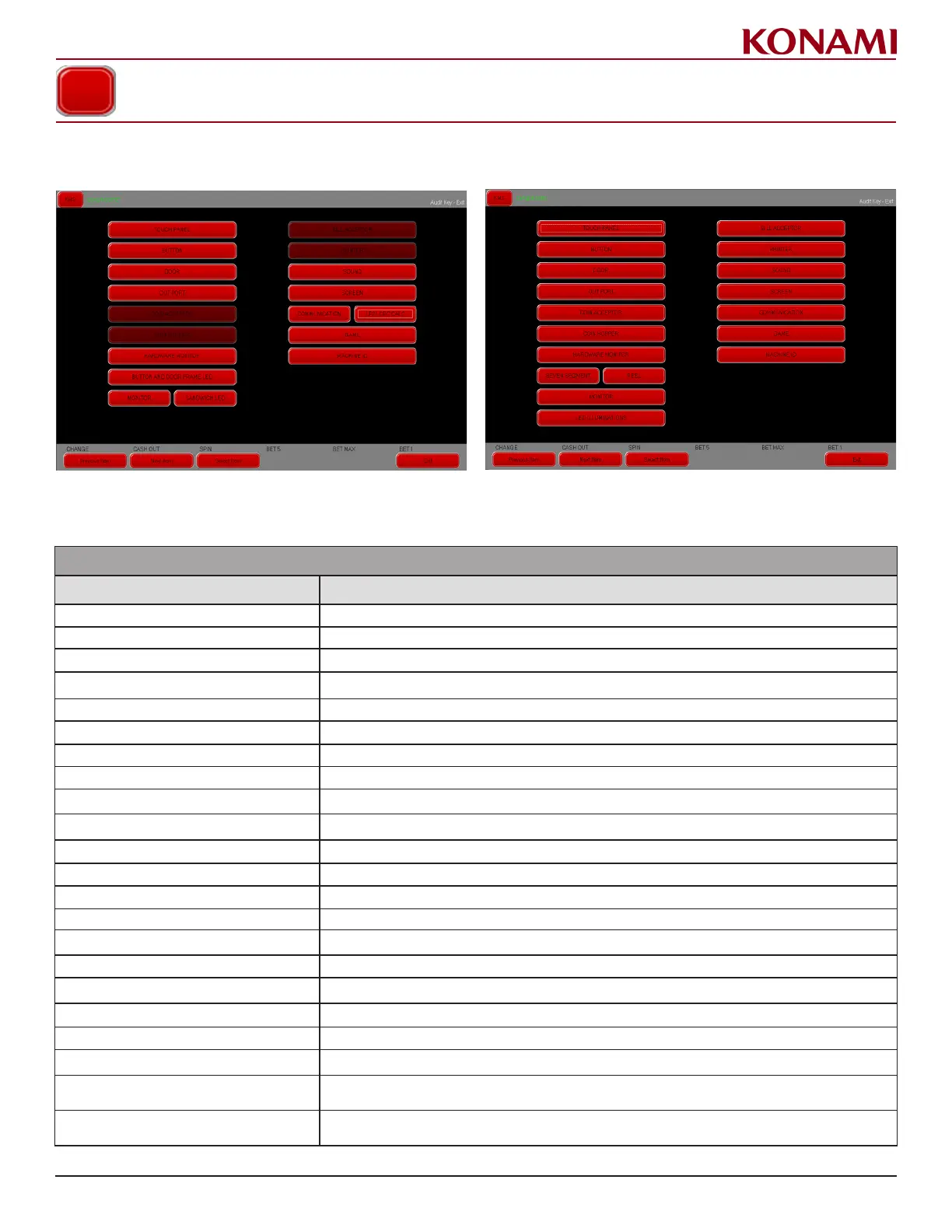

1. Press DIAGNOSTIC to enter the DIAGNOSTIC menu. The following screen is displayed.
DoMesTic (ViDeo, inTernaTional)
2. The following table describes the functions for each item in the DIAGNOSTIC menu.
DIAGNOSTIC MENU
ITEM DESCRIPTION
TOUCH PANEL Checks the operation of the touch screen.
BUTTON Checks buttons operation.
DOOR Checks door operation.
OUT PORT Checks Signal Towerlights and bill entry lamps.
COIN ACCEPTOR Checks Coin Acceptor operations.
COIN HOPPER Checks the operation of the Coin Hopper.
HARDWARE MONITOR Checks Thermometer operation.
BUTTON AND DOOR FRAME LED Checks LED around buttons and door frames.
SEVEN SEGMENT (STEPPER ONLY) Checks the operation of the seven segment display.
REEL (STEPPER ONLY) Checks the operation of the reel units.
MONITOR Checks the monitor operation.
SANDWICH LED/LED ILLUMINATIONS Plays various illuminations available.
BILL ACCEPTOR Checks the operations for Bill Acceptor.
PRINTER Checks the operations for Printer.
SOUND Plays the various sounds available.
SCREEN Checks the operations on the display.
COMMUNICATION Displays information on the communications.
LP21 CRC CALC Displays LP21 CRC CALC diagnostic screen.
GAME Displays the game test, denomination test, and RNG test.
MACHINE ID Displays information on the storage devices and Compact Flash Card memory.
LOCALE (INTERNATIONAL)
Displays game and progressive locale, and local monetary units, credit meter, bet meter, win meter, and
prog levels.
CREDIT METER (INTERNATIONAL)
Displays total credit meter, cash inserted, cash won, non-restricted, non-restricted SDS, restricted,
restricted SDS.
DIAGNOSTIC
