P/N 810497 KXP Setup Manual
KMS
SETUP
n
etwoRK
S
etuP
1.

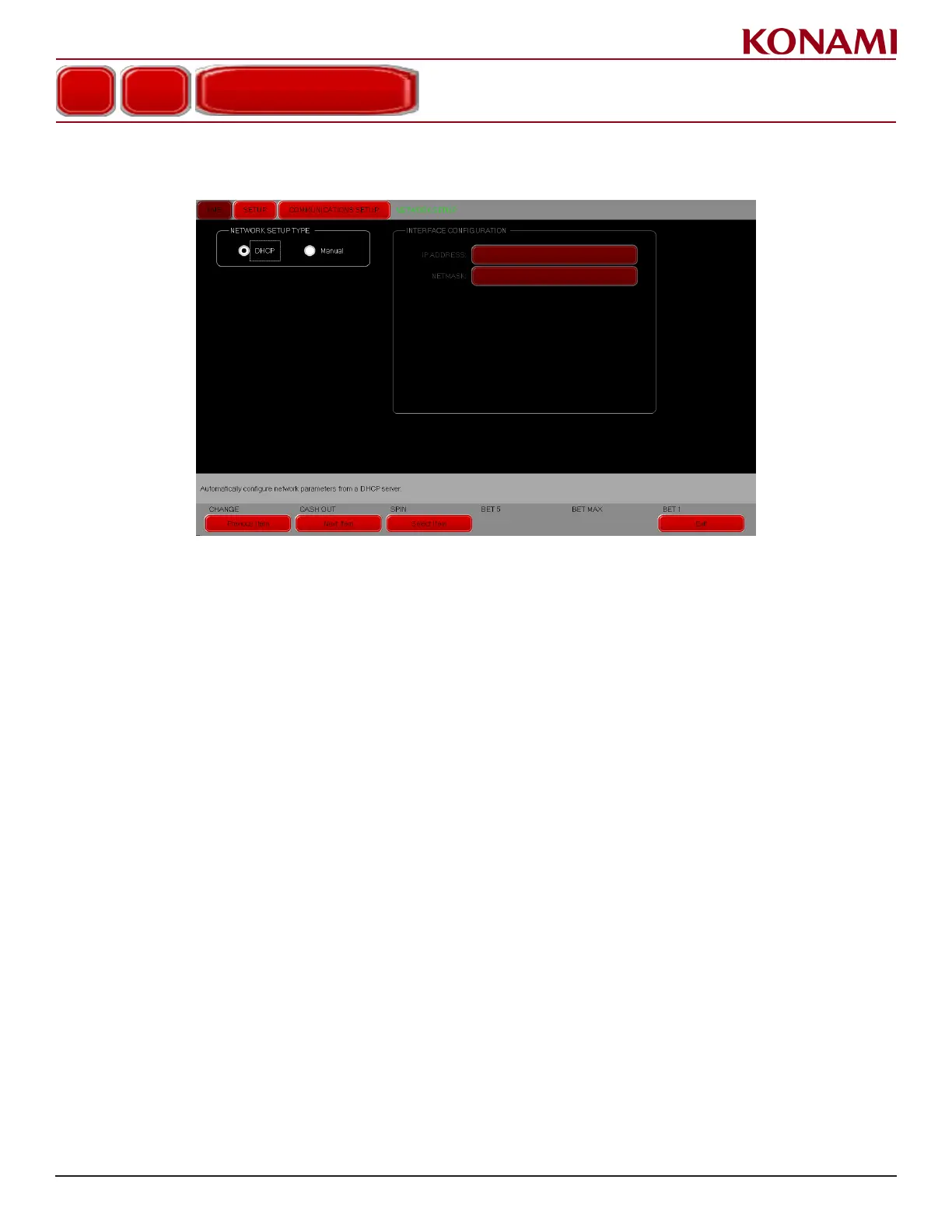

Press NETWORK SETUP to enter the NETWORK SETUP
screen. The following screen is displayed.
2.
Select or deselect the radio button to enable/disable NETWORK SETUP
TYPE.
3.
Press the appropriate red button to set IP
ADDRESS and NETMASK.
4.
Press EXIT to return to the COMMUNICA
TIONS SETUP menu.
COMMUNICA
TIONS SETUP
NETWORK SETUP
63
65
Table of Contents
Table of Contents
4
Overview
7
Main Unit
7
System Start up (Normal)
7
KMS Mode
8
Returning from KMS Mode
8
KMS Navigation
9
User Interface Button Panel Operations
9
Game Initialization Procedure (RAM Clear)
10
RAM Clear Procedure
11
Operation
12
Game Screen
12
Help and Pay Table
12
KMS Overview
13
Audit
14
Audit Meters
15
General Meters 1
16
General Meters 2
17
Bill/Tickets
19
Cashless/Bonusing 1
20
Cashless/Bonusing 2
21
Game Meters
22
Game Play
22
Progressive Jackpots
23
Par Game
24
Par Denomination
25
Double Feature
26
Logs
27
Bill in
27
Ticket in
28
Ticket out
28
Jackpot
29
Progressives
30
Cancelled Credit Handpay
31
AFT Transaction
32
EFT Transaction
32
System Bonus
33
Cashout
33
Game Events
34
Meters
35
Logs
35
Extended Game Meters
36
Game Recall
37
Setup
38
Machine Number Setup
40
Locale Setup
43
Credit Setup
44
Cash Device Setup
46
Bill Validator
47
Noncashable Print Title
48
Security Setup
49
International Setup
50
Absolute Credit Limit, Bet Range and Limit Range Setup
51
International Setup
52
Minimum Game Time
52
Game License Setup
53
License Tampering Prevention
54
License Expiration
54
Importing Licenses
54
Communications Setup
55
Communication Channel Setup
56
Controller Setup
57
SAS Protocol Setup
58
G2S Setup
59
Validation Setup
60
Cashless Transfer Setup
62
Progressive Setup
63
Network Setup
64
Sound Setup
65
Game Common Setup
66
Settings
67
Led
68
E-Art
69
Localization
70
Game Custom Setup
71
Topper
72
Pay Table Setup
73
Denomination Setup
75
Extend Game Setup
76
Extended Game Options Setup
77
Dual Progressive Setup
78
Summary
79
Game Summary
80
Machine Summary
81
Diagnostic
82
Touch Panel
83
Touch Test
83
Touch Panel Calibration Test
84
Bottom Screen Touch Panel (Stepper) Calibration
85
Button
86
Bottom Screen Touch Panel (Stepper) Calibration 82 Button
86
Door
87
Out Port
88
Coin Acceptor
89
Coin Hopper
90
Hardware Monitor
91
Button and Door Frame LED
92
Seven Segment
93
Reel
94
Monitor
101
LED Illuminations
102
Monument Bezel Light Diagnostic Testing
103
Bill Acceptor
104
Printer
105
Sound
106
Screen
107
Communication
108
Game
109
Machine ID
110
Locale Setup
111
Credit Meter
112
Out of Service
113
Lp21
114
Overview
114
Platform
114
CRC File Format
115
Communication and Response Times
115
Setup and KMS
115
Localization and Currency
115
SAS Protocol Setup
116
Lp21 Crc Calc
117
File Generation Tool
118
Generate File
118
Setup/Arrange Modules
118
Run CRC on File
118
Run Old LP21
118
CRC Application Screenshot
118
Key-On Credit
119
Adding Key-On Credits
119
Collect Credits (Player and Attendant)
121
Audit Data
122
Fundamental Gaming Machine Audit Data
122
Life-To-Date Audit Data
122
Game Recall Data
122
Casino Floor System Communication
122
RAM Clear Option for Key-On Credits
122
Cash Device Setup
123
Audit Meters
126
Key-On Credit Transaction Log
127
Game Recall
128
