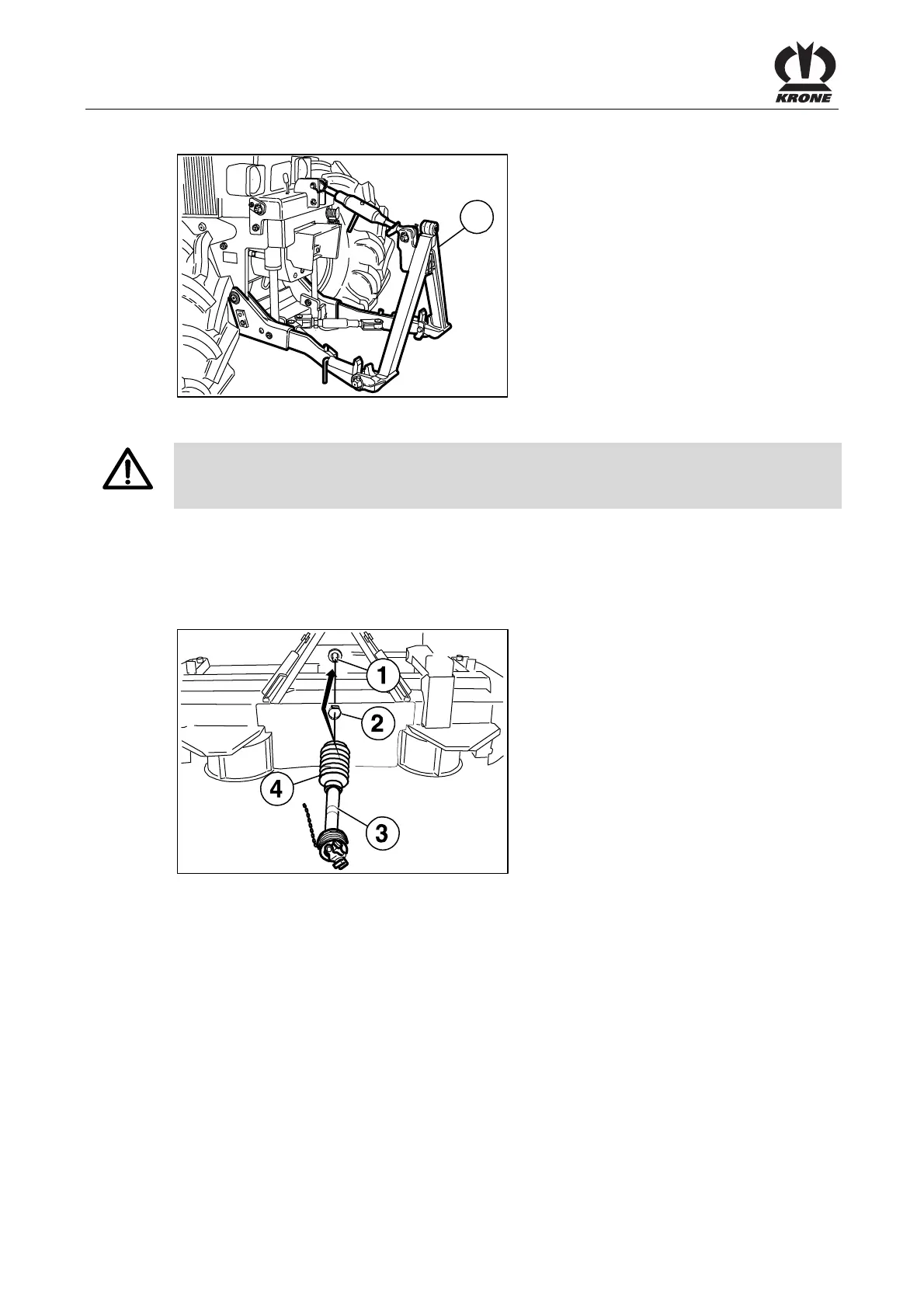

4.4 Installation of Weiste triangle
AFL 245-0-007
1
Fig. 5
Pos: 10.16 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Warnung Anbau des Kuppel dreiecks (Weiste Dr eieck) @ 3\mod_1204638378 407_78.docx @ 71102 @ @ 1
Warning - Installation of the triangle linkage (Weiste triangle)
Effect: Danger to life or serious injuries. Considerable damage to the machine
Observe manufacturer's operating instructions for the triangle linkage!
Pos: 10.17 /BA/Er stinbetriebnahme/Easy Cut/Anbau Weiste- Dreieck Text @ 3\mod_12046386 31735_78.docx @ 71179 @ @ 1
For the installation of the front-mounted disc mower, a Weiste triangle (1) is attached to the front
hydraulics. Adjust the top suspension arm in such a way that the triangle is inclined slightly
forward.
Pos: 10.18 /Übersc hriften/Überschri ften 2/U-Z/VVorbereit ung am Frontscheibenmä her @ 35\mod_1257497246 000_78.docx @ 329285 @ 2 @ 1
4.5 Preparation on the front-mounted disc mower
Pos: 10.19 /BA/Er stinbetriebnahme/Easy Cut/Vorbereitung a m Frontscheibenmäher E C 28/32 28P/32P 28M @ 10\mod_12216 59810103_78.doc x @ 136162 @ @ 1
EC-1-005
Fig. 6:
• Push the PTO shaft (3) with full protection (4) onto the PTO shaft end of the machine.
• The safety mechanism must engage
• Secure the PTO shaft guard (2) against turning with pipe clamp (2).
