9.6 Mower Drive Gearbox
Pos: 20.22.2 /Abkürzun gen /Abkürzungen spr achneutral/EasyCu t/EasyCut 28 M @ 10\mod_12216 58268900_0.doc x @ 136051 @ @ 1
(EasyCut 28 M)
Pos: 20.22.3 /BA/W artung/Ölkontrolle_W echsel/Mähwerke/B ild Mäherantriebsgetr iebe EC 28/32 @ 10\mod_122 1741509333_78.doc x @ 137196 @ @ 1

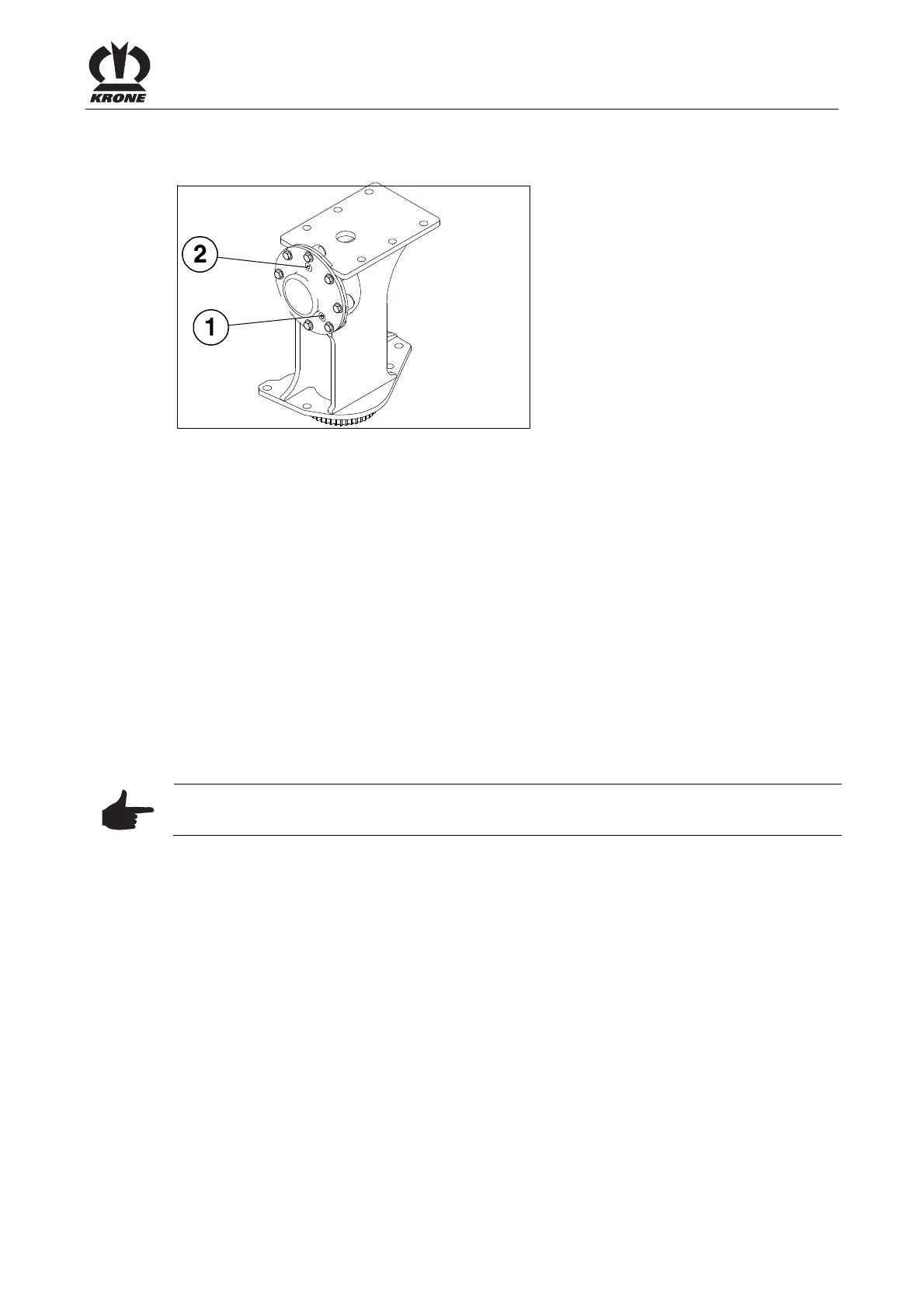

EC-227-0
Fig. 27
Pos: 20.22.4 /BA/War tung/Ölkontrolle_Wec hsel/Ölkontrolle_A LT/Ölkontrolle SAE 90 @ 0\mod_ 1197008973815_78. docx @ 15649 @ @ 1
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 20.22.5 /BA/W artung/Ölkontrolle_W echsel/Ölwechse l_ALT/Ölwechsel Version5 @ 9\mod_122104705204 3_78.docx @ 131562 @ @ 1
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the oil drain plug (1)
• Collect the used oil in a suitable drip pan
• Screw in the oil drain plug (1)
• Top up the oil (2) (oil level up to hole (1))
Pos: 20.22.6 /BA/W artung/Ölkontrolle_W echsel/Ölqualit ät /Ölmenge: siehe Kapite l @ 0\mod_1197007859486_ 78.docx @ 15531 @ @ 1
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 20.22.7 /BA/W artung/Ölkontrolle_W echsel/Hinweis - Alt öl ordnungsgemäß entsor gen @ 0\mod_1197008117002 _78.docx @ 15550 @ @ 1
Note
The used oil must be disposed of correctly
