Maintenance
48
Pos: 20.20.1 /Überschr iften/Überschr iften 2/U-Z/WWi nkelgetriebe @ 0\mod_1197005 918299_78.docx @ 15435 @ 2 @ 1
9.5 Angular gearbox
Pos: 20.20.2 /Überschr iften/Überschr iften 3/F-J/FFr ontmähwerk (CV+CRI) @ 0\mod_119 7008615440_78.doc x @ 15609 @ 3 @ 1
9.5.1 Front Mowing Unit (CV+CRI)
Pos: 20.20.3 /BA/W artung/Ölkontrolle_W echsel/Mähwerke/B ild Winkelgetriebe EC 28/ 32 @ 10\mod_122174093159 8_78.docx @ 137129 @ @ 1
AFA-0-016
1

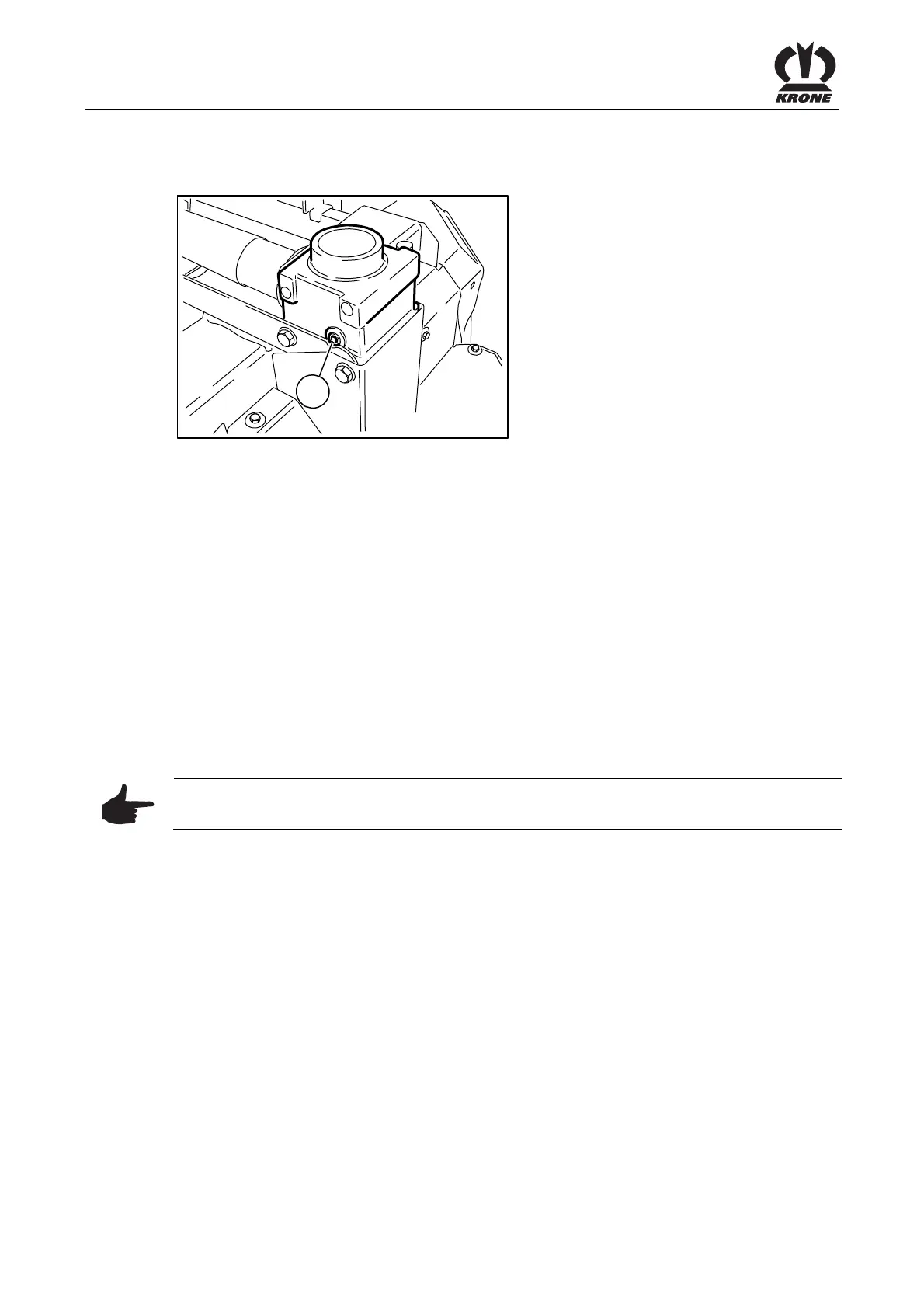

Fig. 26
Pos: 20.20.4 /BA/War tung/Ölkontrolle_Wec hsel/Ölkontrolle_A LT/Ölkontrolle SAE 90 @ 0\mod_ 1197008973815_78. docx @ 15649 @ @ 1
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 20.20.5 /BA/W artung/Ölkontrolle_W echsel/Ölwechse l_ALT/Ölwechsel Version ab saugen @ 10\mod_12217 40650161_78.docx @ 13 7085 @ @ 1
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Extract oil
• Top up oil (oil level up to hole (1))
• Screw the inspection screw (1) back in.
Pos: 20.20.6 /BA/W artung/Ölkontrolle_W echsel/Ölqualit ät /Ölmenge: siehe Kapite l @ 0\mod_1197007859486_ 78.docx @ 15531 @ @ 1
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 20.20.7 /BA/W artung/Ölkontrolle_W echsel/Hinweis - Alt öl ordnungsgemäß entsor gen @ 0\mod_1197008117002 _78.docx @ 15550 @ @ 1
Note
The used oil must be disposed of correctly
