Start-up
26
Pos: 12.19 /Übersc hriften/Überschri ften 2/F-J/GGelenkwe lle @ 0\mod_1199781879794_ 78.docx @ 34542 @ 2 @ 1
5.4 PTO shaft
Pos: 12.20 /BA/Sic herheit/Gelenkwelle/ Gefahr - Sich dr ehende Gelenkwelle_2 @ 0\mod_11997 81692950_78.doc x @ 34523 @ @ 1
Danger! - Rotating PTO shaft
Effect: Danger to life or serious injuries
• Install or detach the PTO shaft only with the engine switched off and the ignition key
removed.
• Secure the tractor against rolling.
• Make sure that the PTO shaft is coupled properly (the lock of the PTO shaft must have
snapped in).
• Make sure that the protective devices are attached properly.
• Never use a PTO shaft, the protective devices of which have not been attached.
• Replace damaged protective devices immediately
• Attach the safety chain of the PTO shaft so that the guard tube does not rotate
simultaneously with the PTO shaft.
Pos: 12.21 /BA/Sic herheit/Gelenkwelle/ Gefahr - Antriebsdreh zahl 1000 beachten @ 3\mod_ 1204700292070_78.doc x @ 71424 @ @ 1
Danger! - Observe drive speed
Effect: Danger to life or serious injuries
• This machine is driven at a maximum PTO speed of 1000 rpm.
Pos: 12.22 /Übersc hriften/Überschri ften 3/K-O/LLängenanp assung @ 1\mod_1201687632 810_78.docx @ 53589 @ 3 @ 1
5.4.1 Length adjustment
Pos: 12.23 /BA/Er stinbetriebnahme/Gelen kwelle/Mähwerke/Lä ngenanpassung Gelenk welle EC 32CVF @ 3\mod_120 4701667336_78.docx @ 714 43 @ @ 1

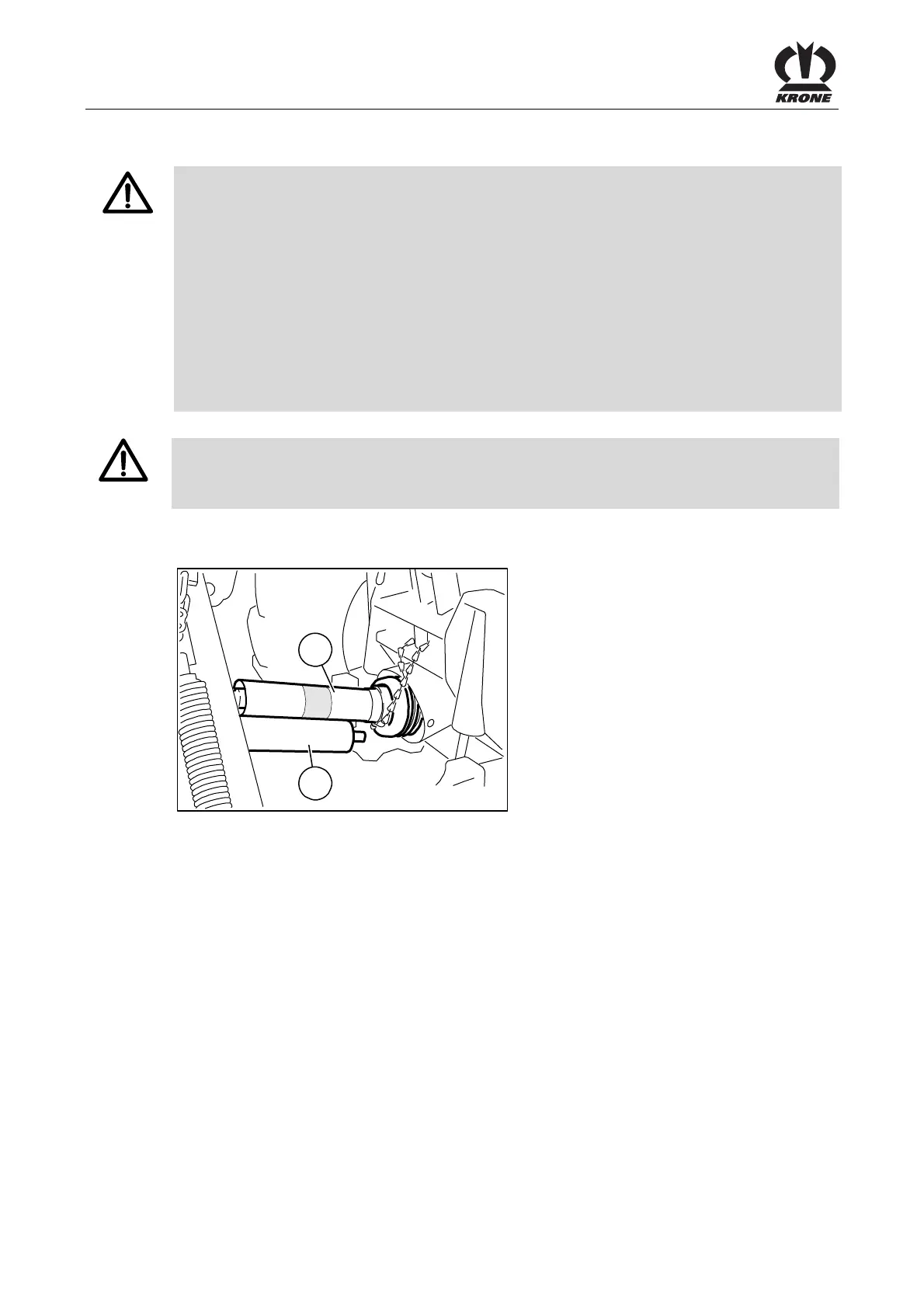

AFA-0-006
2
1
Fig. 11
• Hold the two PTO shaft halves (1) and (2) next to each other
• Check the cover of the special section tubes and guard tubes
• Shorten special section tubes and guard tubes until they can move freely in any operating
position
• For detailed information on adjusting the length, please refer to the operating instructions of
the PTO shaft manufacturer
