Maintenance
52
Pos: 20.26.1 /Überschr iften/Überschr iften 2/K-O/KKontrol le der Mähklingen und Messer halterung @ 0\mod_11 97265641329_78.doc x @ 16323 @ 2 @ 1
9.8 Checking the Cutter Blades and Blade Holder
Pos: 20.26.2 /BA/Si cherheit/7. Gefahr enhinweise alt/Mäh werke/Gefahr - Fehlende und besc hädigte Mähklingen und Mähklingenhalterun gen @ 0\mod_119726572 2813_78.docx @ 16342 @ @ 1
Warning! - Missing and damaged cutter blades and cutter blade retainers.
Effect: Danger to life, serious injuries or damage to the machine
• Check cutter blades at least once per day and check retaining bolts every time you change
the blades or after contact with foreign objects.
• Immediately replace missing or damaged cutter blades and cutter blade retainers
Pos: 20.26.3 /Überschr iften/Überschr iften 3/K-O/MMähklinge n @ 0\mod_11972659591 10_78.docx @ 16361 @ 3 @ 1
9.8.1 Cutter Blades
Pos: 20.26.4 /BA/W artung/Mähwerke/Die Bohr ung der Mähklingen kann si ch durch Verschlei ß aufweiten. @ 10\mod_1221048 982715_78.docx @ 131675 @ @ 1
The borehole on the cutter blades may spread due to wear.
Pos: 20.26.5 /BA/Si cherheit/7. Gefahr enhinweise alt/Mäh werke/Warnung - Zu geringe Mater ialstärke an den Mähk lingen_neu @ 312\mod_1418 983956660_78.doc x @ 2409555 @ @ 1
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.

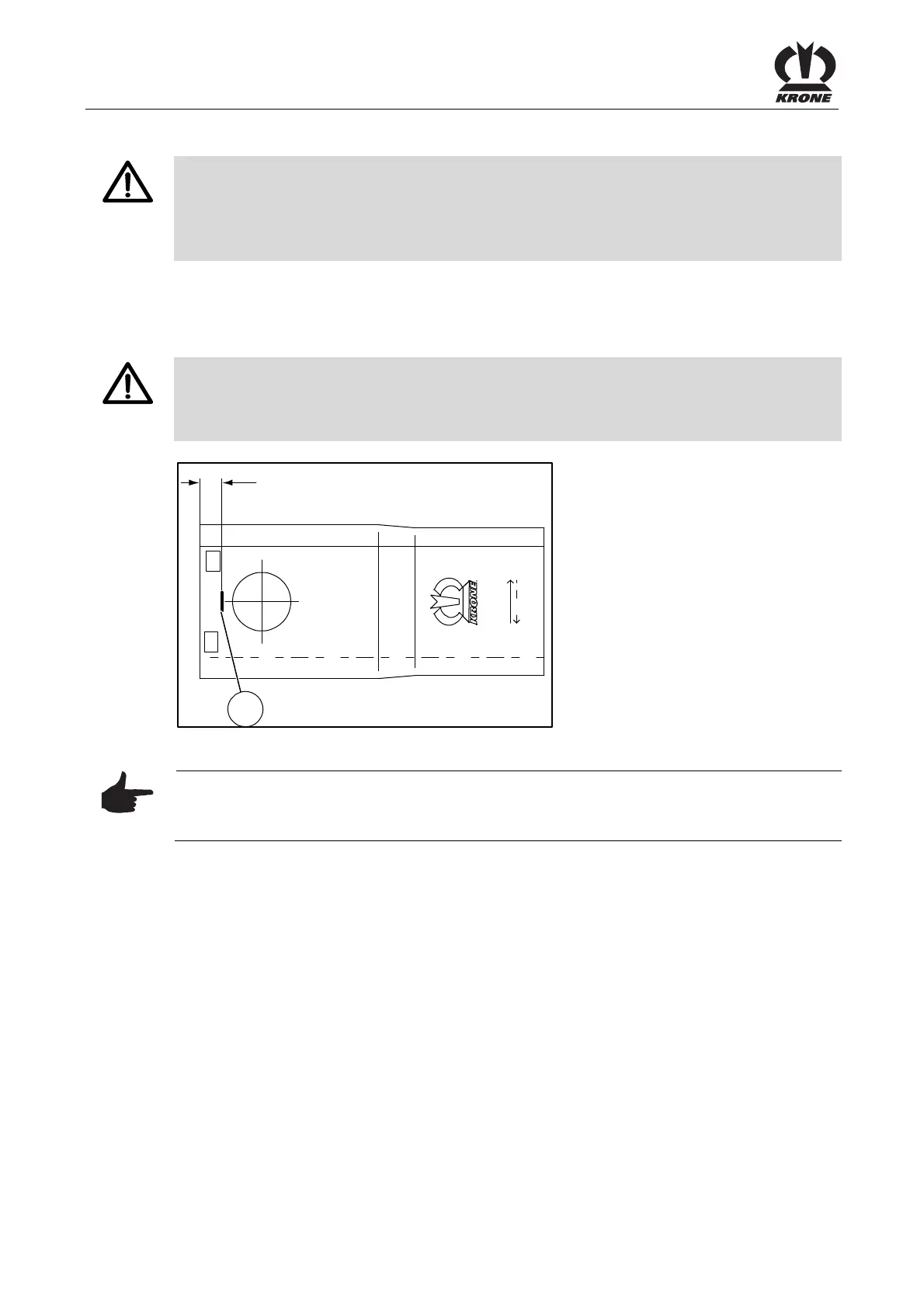

• The cutter blades must be replaced at the latest when the wear limit is reached (see mark
(1) on the cutter blade; dimension a less than or equal to 13 mm).
Pos: 20.26.6 /BA/W artung/Mähwerke/Mähkli ngen beidseitig ver wenbar_neu @ 3\mod_1204728 012601_78.doc x @ 72608 @ @ 1
a
EC 253 0
1
Fig. 30
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
Pos: 20.26.7 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.d ocx @ 4165 @ @ 1
