Settings
41
Pos: 18.15 /Übersc hriften/Überschri ften 2/A-E/EEinstel len der Schnitthöhe @ 0\mod_ 1196660879619_78. docx @ 9191 @ 2 @ 1
8.3 Adjusting the cutting height
Pos: 18.16 /BA/Einste llungen/Mähwerke/Sc hnitthöhe/Schni tthöhe Bild EC 28/32 @ 10\mod_ 1221738803864_78. docx @ 136972 @ @ 1
AFA-0-012
1

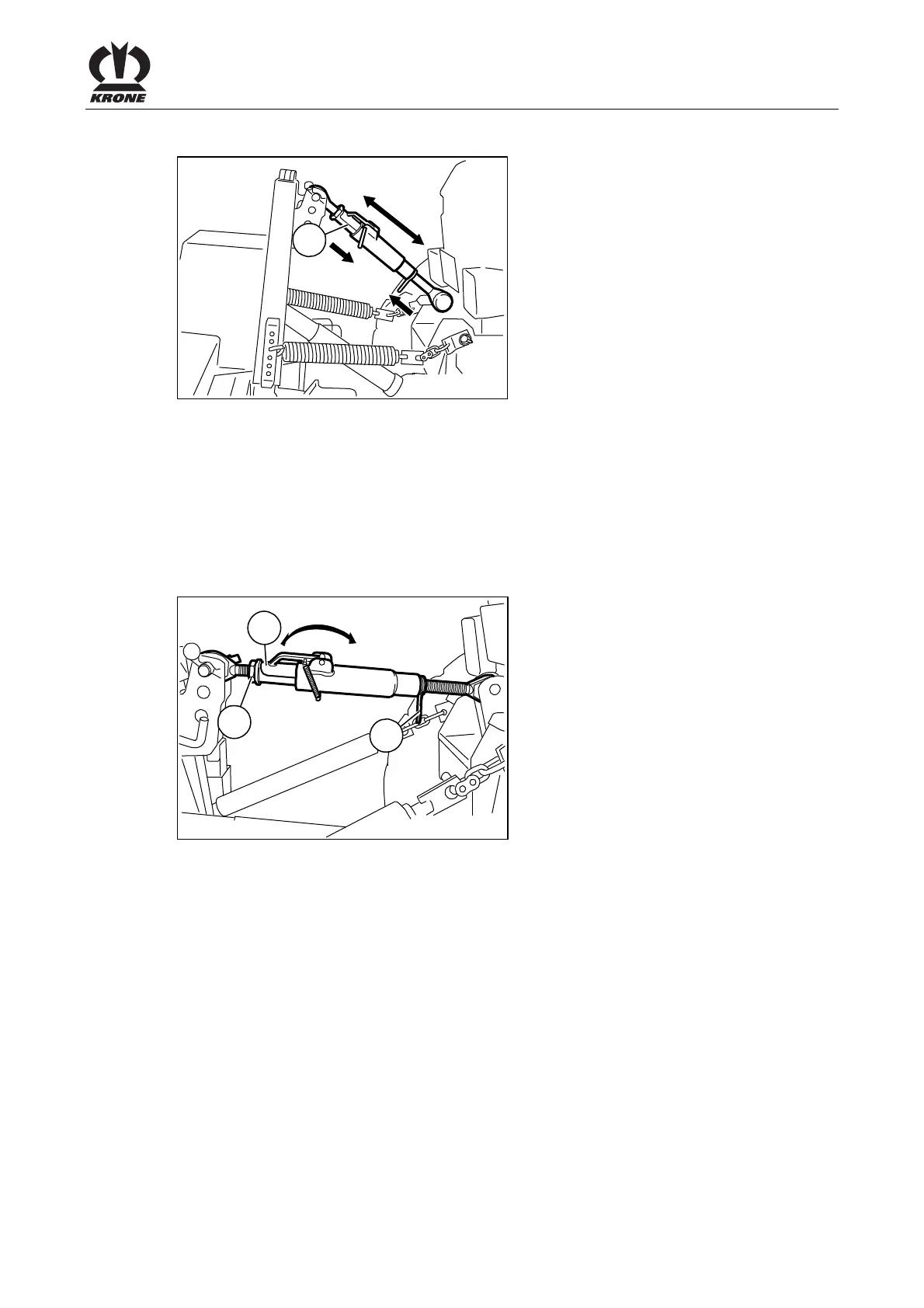

Fig. 23
Pos: 18.17 /BA/Einste llungen/Mähwerke/Sc hnitthöhe/Schni tthöhe größer_geringer @ 0\mod_1196661562478_ 78.docx @ 9269 @ @ 1
The cutting height is adjusted via the top link (1).
To do this:
• Lower the front mowing unit into working position
• Rotate the top suspension arm (1)
Top suspension arm longer = smaller cutting height
Top suspension arm shorter = bigger cutting height
Pos: 18.18 /BA/Einste llungen/Mähwerke/ Teleskopoberlenker @ 3\mod_120470877618 0_78.docx @ 71835 @ 3 @ 1
8.3.1 Telescopic upper suspension arm
AFA-0-020
3
1
2
Fig. 24:
In order to allow the front-mounted disc mower to adapt to the ground in the direction of travel, a
telescopic upper suspension arm can be purchased as optional additional equipment. Via the
telescopic upper suspension arm, the cutting height is set by loosening the counter nut (2) and
(3). By moving the lockclip (1), the compression spring of the telescopic upper suspension arm
is released. This guarantees optimum adaptation of the front mowing unit in the direction of
travel.
