Settings
42
Pos: 18.20 /BA/Einste llungen/Mähwerke/Ei nstellung der Kei lriemenspannung EC 28/32 @ 10\ mod_1221739581380_78. docx @ 137022 @ 2 @ 1
8.4 Setting of the V-belt Tension
(except EC 28 M)
EC-0-008

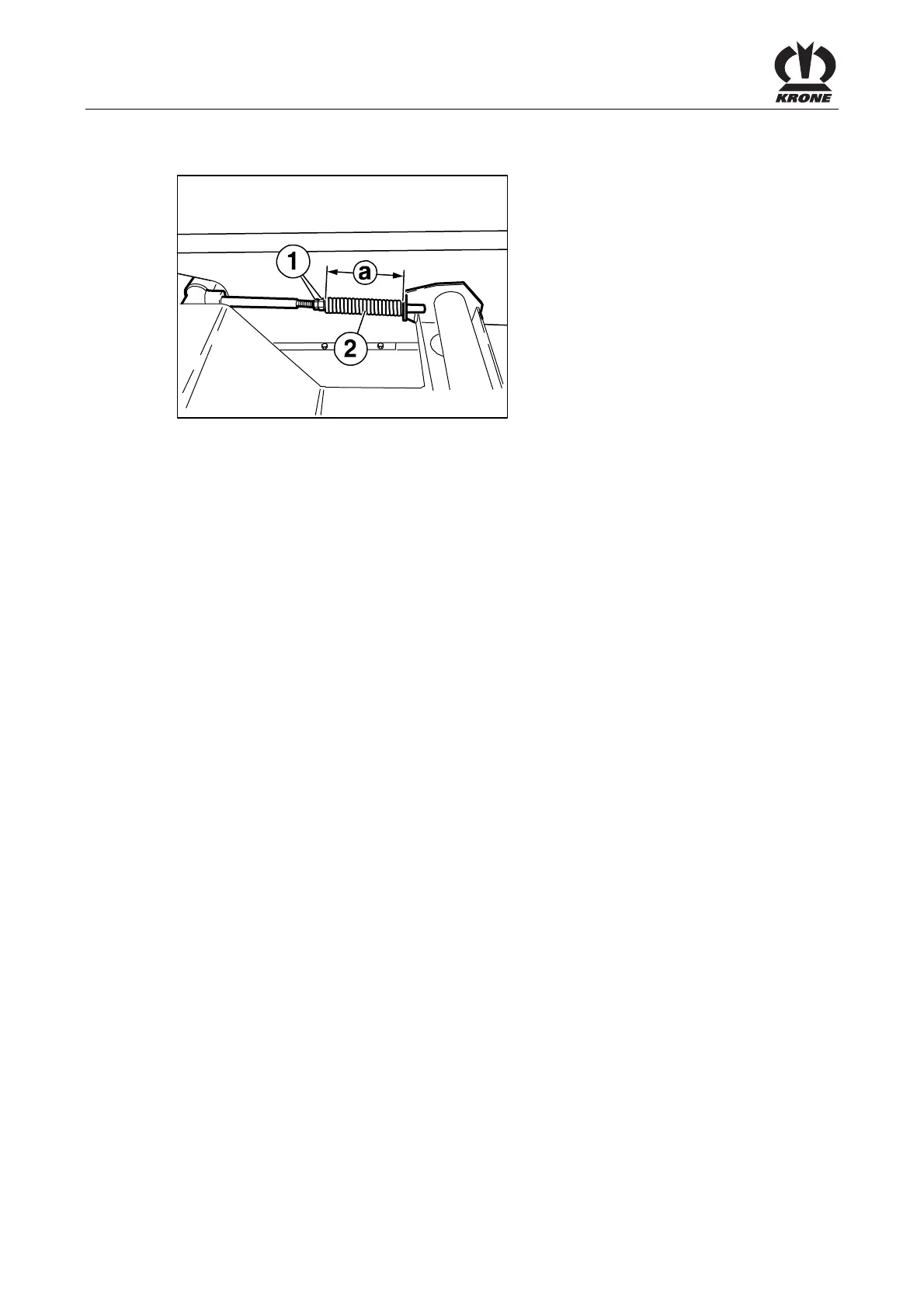

Fig. 25:
The drive V-belts maintain their tension by means of a compression spring (2). To adjust
dimension "a", unscrew the nut (1). Turn the nuts until dimension "a" = 205 mm is reached. Lock
nuts again.
