5.2.1 Lower suspension arm

Pos: 12.12.2 /BA/I nbetriebnahme/EasyC ut/Unterlenkeradap ter/Unterlenker adapter fixieren Bild @ 79\mod_1314690338900_ 78.docx @ 697669 @ @ 1

EC-387-0

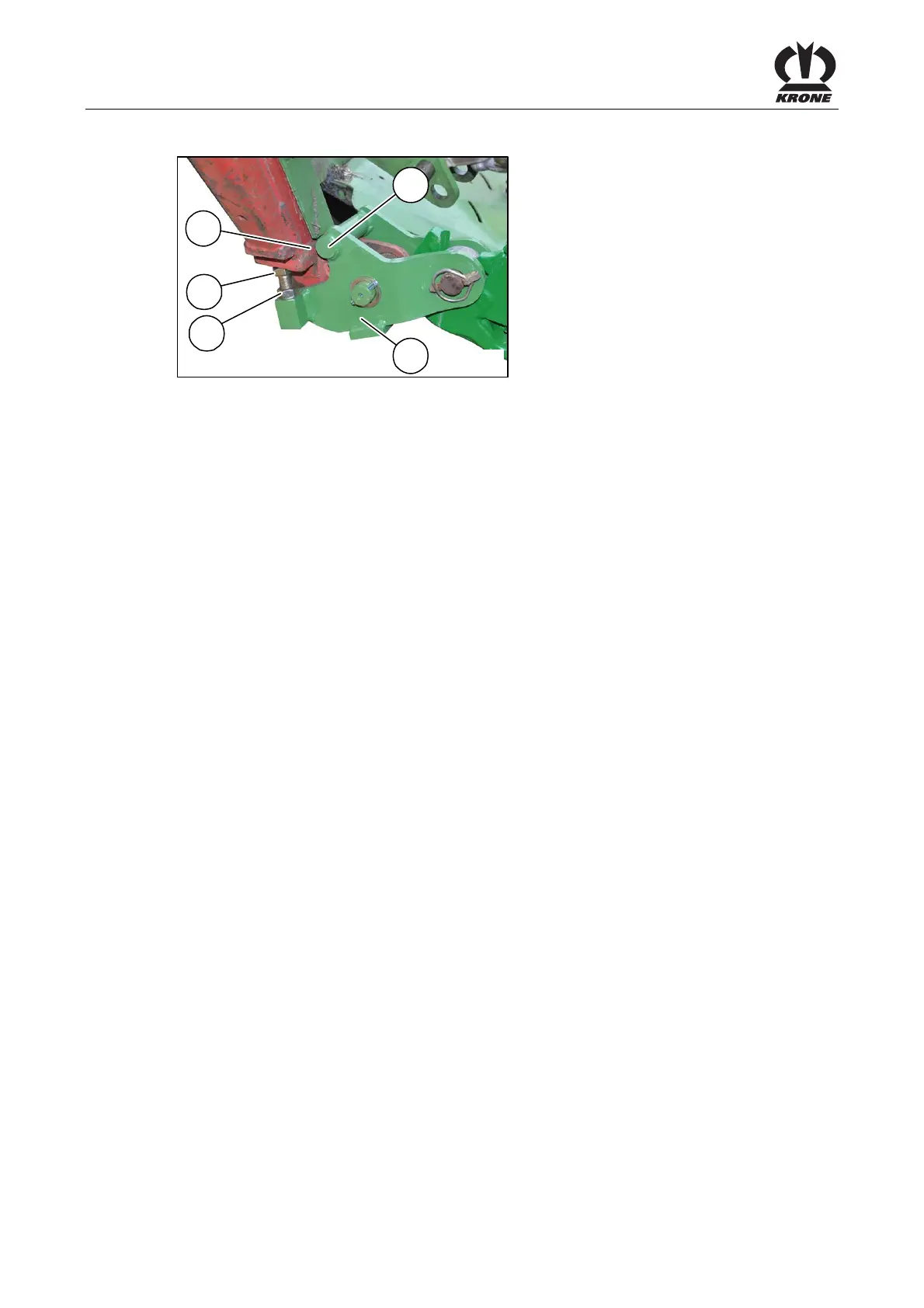

Fig. 9

Pos: 12.12.3 /BA/I nbetriebnahme/EasyC ut/Unterlenkeradap ter/Unterlenker adapter fixieren / pende lnd Einführtext @ 136\mod_1 352380302114_ 78.docx @ 1208499 @ @ 1

The lower suspension arm adapters (1) serve as extension to increase the distance of the

machine to the front wheels of the tractor.

On tractors with floating (height movable) lower links, the lower suspension arm adapters must

be fastened.

On tractors with rigid lower links, the lower suspension arm adapters must be set floating.

Pos: 12.12.4 /BA/I nbetriebnahme/EasyC ut/Unterlenkeradap ter/Unterlenker adapter fixieren @ 136\ mod_1352380102898_78. docx @ 1208413 @ @ 1

Fastening the Lower Suspension Arm Adapters

To do this:

• Connect the machine to the Weiste triangle.

• Lower the machine into working position.

• Move the front power lift into float position.

• Turn off the engine, remove the ignition key and secure the tractor and the machine against

accidental start-up and against rolling.

• Turn out screw (2) until the bolt (A) of the lower suspension arm adapter (1) touches the

stop (B) of the Weiste triangle (right and left machine side).

• Lock the screw (2) with nut (3).

Pos: 12.12.5 /BA/I nbetriebnahme/EasyC ut/Unterlenkeradap ter/Unterlenker adapter pendelnd einste llen @ 136\mod_13523802 17006_78.doc x @ 1208442 @ @ 1

Setting the Lower Suspension Arm Adapters Floating
