10 Maintenance – lubrication chart
Pos: 20.30.2 /Überschr iften/Überschr iften 2/P-T/SSpeziel le Sicherheitshin weise @ 0\mod_119666049576 0_78.docx @ 9134 @ 2 @ 1
10.1 Special Safety Instructions
Pos: 20.30.3 /BA/Si cherheit/7. Gefahr enhinweise alt/Mäh werke/Warnung - Reparatur _Wartung_Reinigungs_ 4 allgemein EasyCut @ 292\ mod_1410941423112_ 78.docx @ 2299026 @ @ 1
WARNING!
When performing repair, maintenance or cleaning work or in case of technical
intervention, drive elements may start moving (caution: cutting discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Turn off the PTO shaft.
• Move the machine to the working position and lower it to the ground.
• Switch off the engine of the tractor, remove the ignition key and carry it with you.
• Secure the tractor against accidental start-up and against rolling.
• After the repair, maintenance, cleaning work or technical modifications are completed,
mount all protective covers and safety devices properly again.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a physician
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 20.30.4 /Überschr iften/Überschr iften 2/F-J/GGelenk welle @ 0\mod_11997818797 94_78.docx @ 34542 @ 2 @ 1
10.2 PTO shaft
Pos: 20.30.5 /BA/W artung/Gelenkwelle sch mieren/Abschmiere n Gelenkwelle EasyCut 100 h @ 44\ mod_1275544141265_78. docx @ 392033 @ @ 1

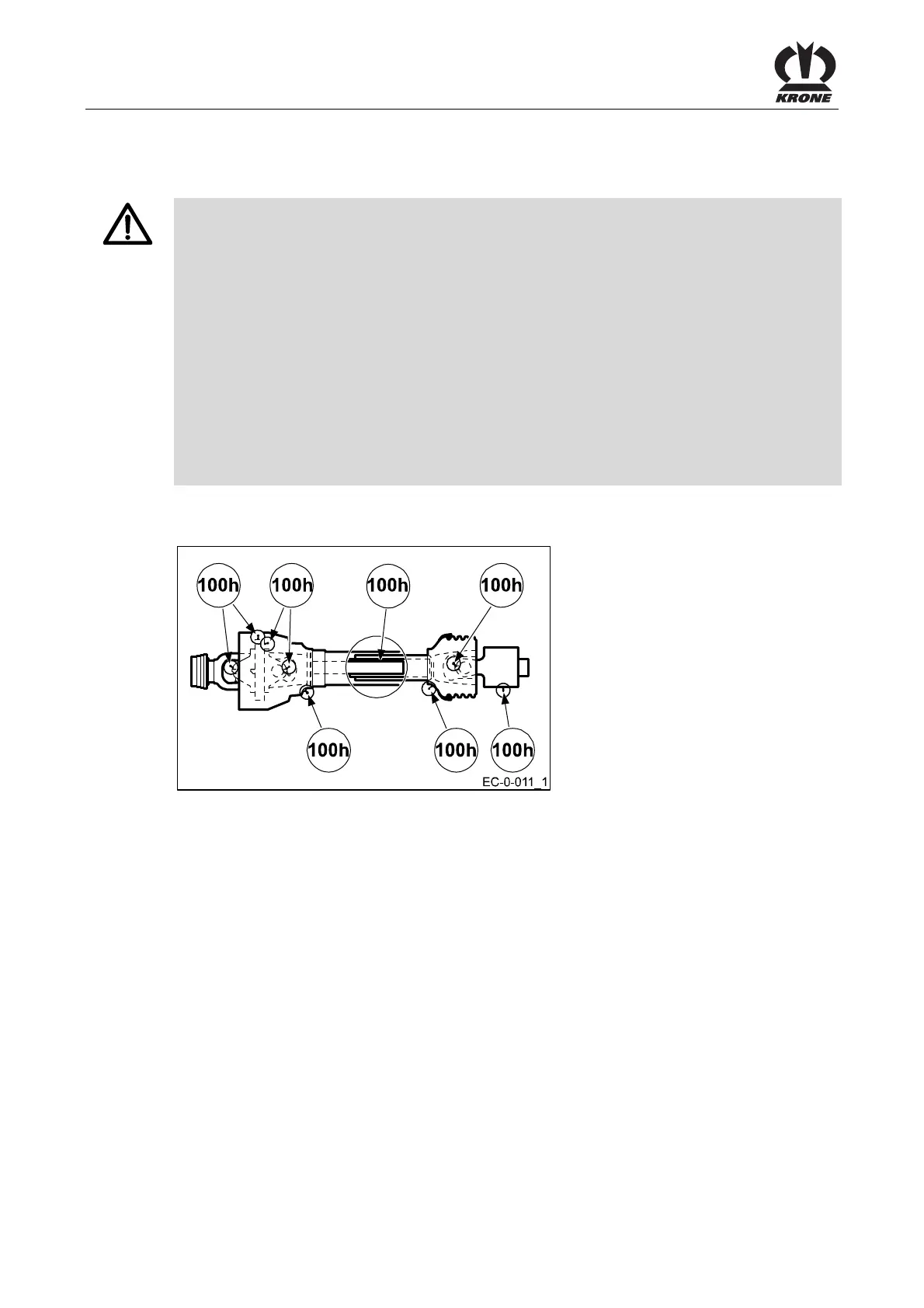

Fig. 42
Lubricate the PTO shafts at the intervals indicated in the drawing with a multi-purpose grease.
Follow the operating instructions of the PTO shaft manufacturer.
