Maintenance
54
Pos: 20.26.10 /BA/W artung/Mähwerke/Me sserschraub / Messersc hnellverschluss/ Messerschnellver schluss Haltebolze n 14mm @ 0\mod_1197268087875 _78.docx @ 16444 @ 3 @ 1

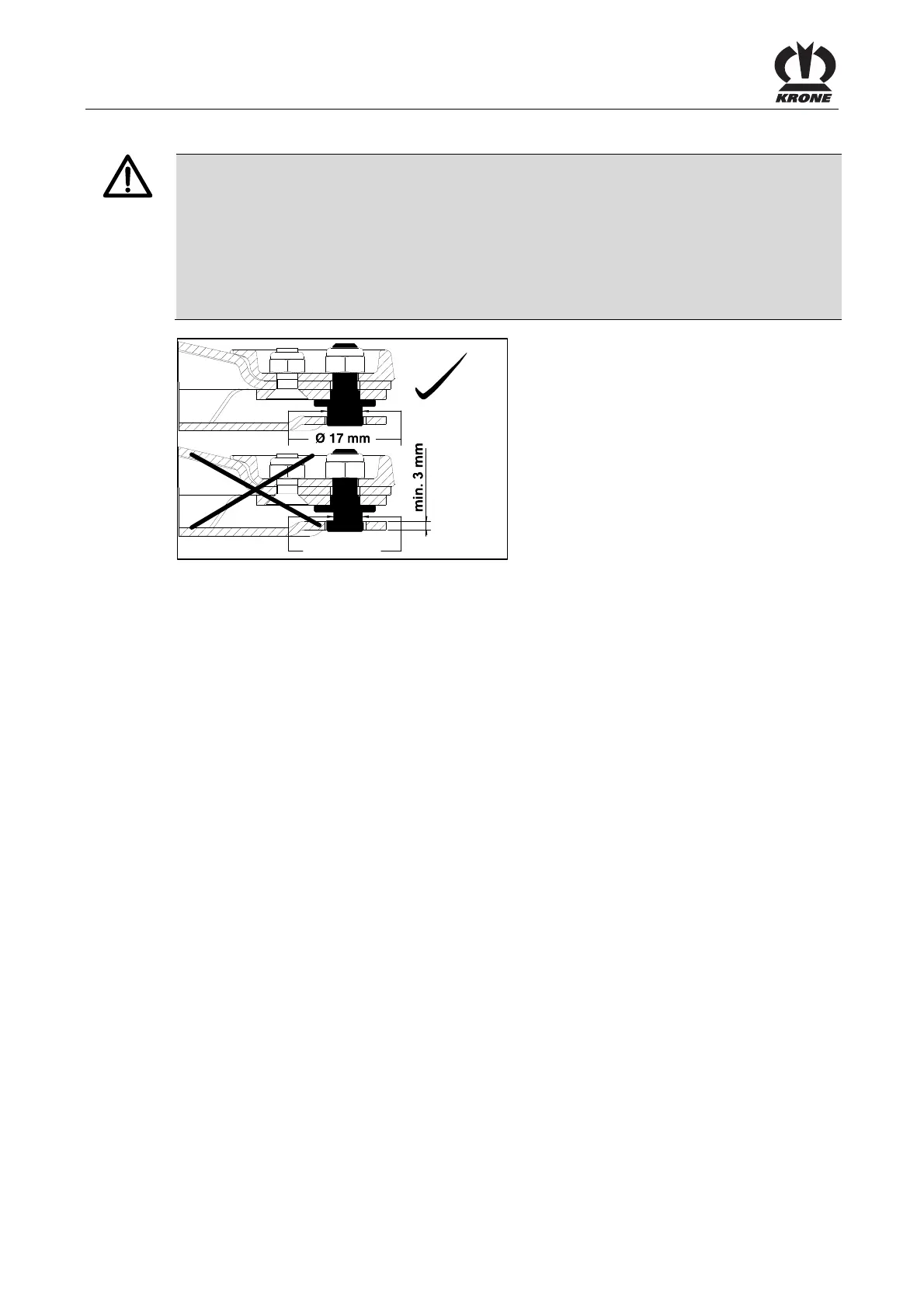

9.8.3 Blade Quick-Fit Device
Danger! - Insufficient thickness of material on the retaining bolts.
Effect: Danger to life or serious injuries.
• At every blade changing check the thickness of the holding bolts material.
• Damage or worn retaining bolts must always be replaced by sets on each cutting
disc/blade drum!
• The material thickness of the retaining bolts must not be less than 14 mm at the weakest
point.
• The material thickness of the leaf spring must not be less than 3 mm at the weakest point.
EC-239-0
min. 14 mm
Fig. 32
