13.4 Conversion for mowing steep slopes

(EasyCut 28 M, EasyCut 32 M) / (EasyCut F 280 M, EasyCut F 320 M)

EC-254-1

EasyCut 28M / EasyCut F 280 M

EasyCut32M / EasyCut F 320 M

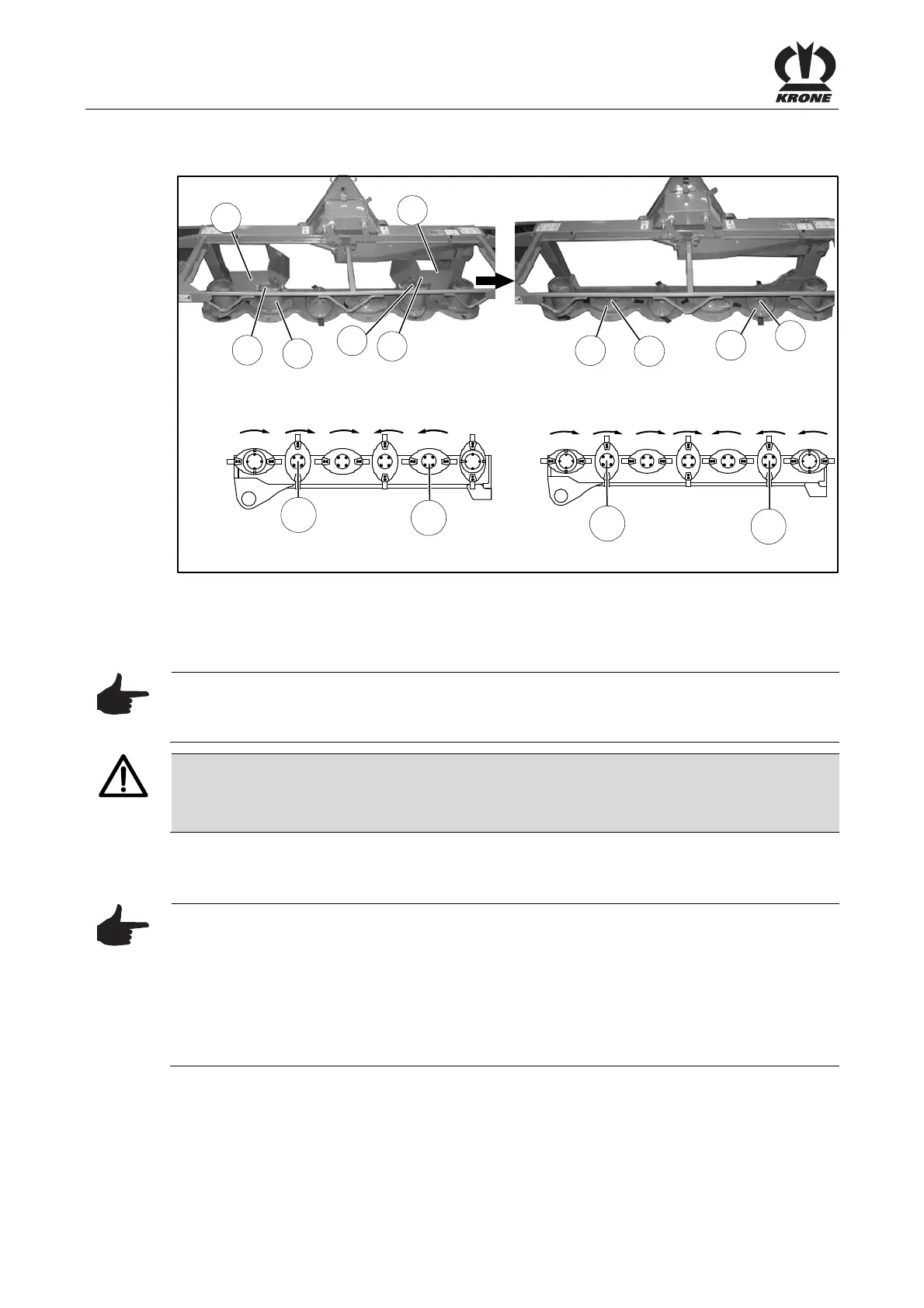

Fig. 46

• Remove plates (1,2)

• Remove cover (3) of mower drum (4).

• Remove mower drum (4).

Note

Keep the plates (1,2), cover (3) and mower drums (4) in a protected place for later

reinstallation.

Warning - Cutting disc installed incorrectly

Effect: Damage to the machine

Make certain the cutter discs are installed correctly! The installed cutting discs (5) must be

installed at a 90-degree offset to the adjacent mower drums / cutting discs.

• Mount the cutting discs (5) and covers (6). To do this, reuse the fastening bolts and detent

edged washers of the mower drums that were removed.

Note

Follow the steps in the reverse order for reinstallation (see also Chapter "Conversion to

Narrower Swathing").

Before starting up the machine again, make certain to check the cutter blades, retaining bolts,

cutting discs, and drums as well as the linings

• See Maintenance section "Checking the Cutter Blades and Retaining Bolts".

• See Maintenance section "Periodical Inspection of Cutting Discs and Drums."

• See Maintenance section "Replacing the Linings".
