16 ELECTRICAL SYSTEM
104

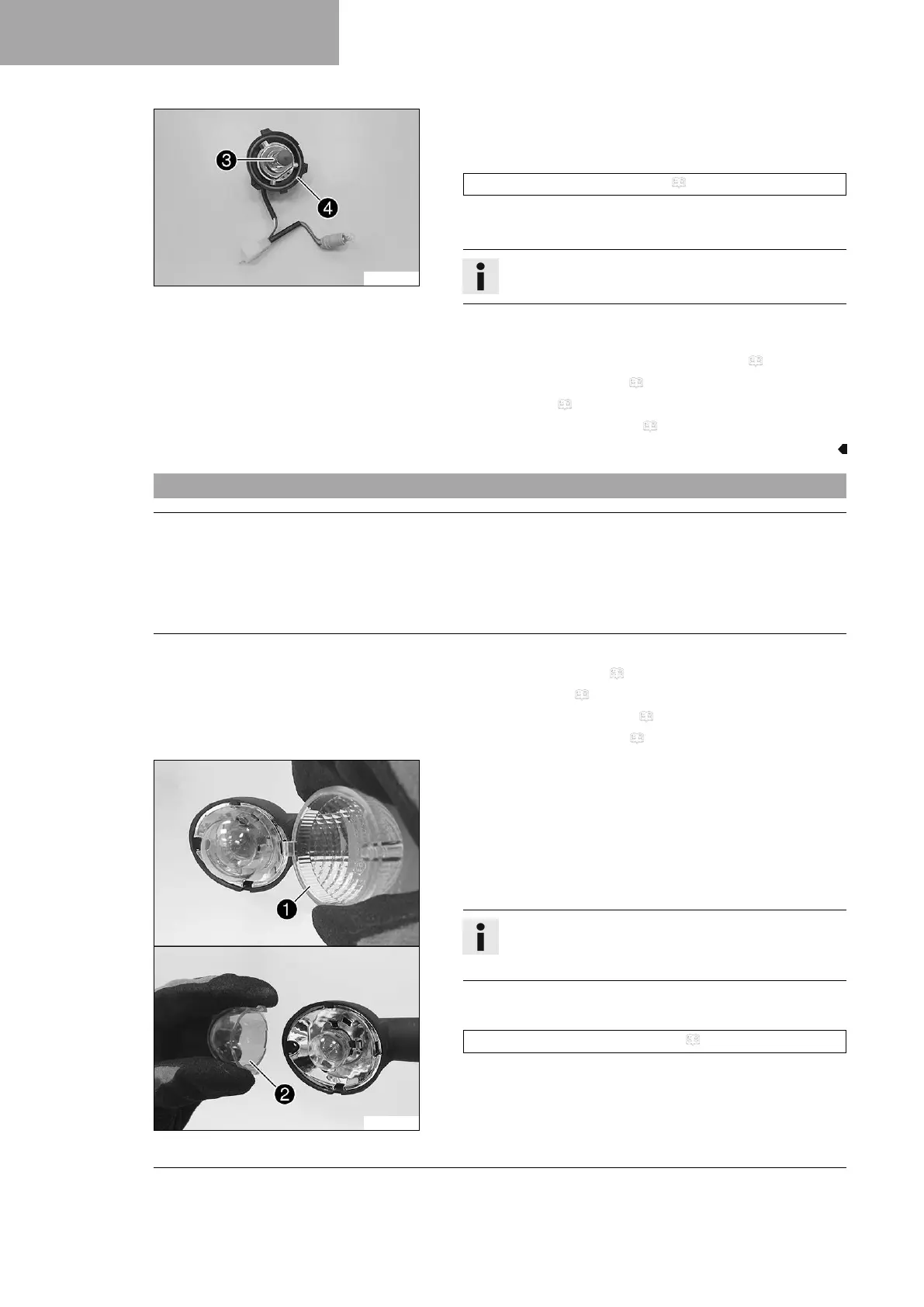

E01030-10
–
Push headlight bulb
3
lightly into the bulb socket, turn it all
the way counterclockwise, and remove it.
– Insert the new headlight bulb.
Headlight (HS1 / socket PX43t) ( p. 139)
– Insert the rubber cap with the bulb socket into the reflector
and turn it all the way clockwise.
Info
Ensure that O-ring
4
is seated properly.
– Insert the bulb socket of the position light into the reflector.
Finishing work
– Install the headlight mask with the headlight. ( p. 102)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
– Check the headlight setting. ( p. 105)
16.8 Changing the turn signal bulb
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
E00360-10
Main work
– Remove the screw on the rear of the turn signal housing.
–
Carefully remove turn signal glass
1
.
–
Lightly squeeze together the orange cap
2
in the area of the
holding lugs and take it off.
–
Press the turn signal bulb lightly into the socket, turn it coun-
terclockwise by about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers and keep it
free from grease.
– Press the new turn signal bulb carefully into the socket and
turn it clockwise until it stops.
Turn signal (R10W/socket BA15s) ( p. 139)
– Mount the orange cap.
–
Position the turn signal glass.
