SERVICE WORK ON THE CHASSIS 13
61

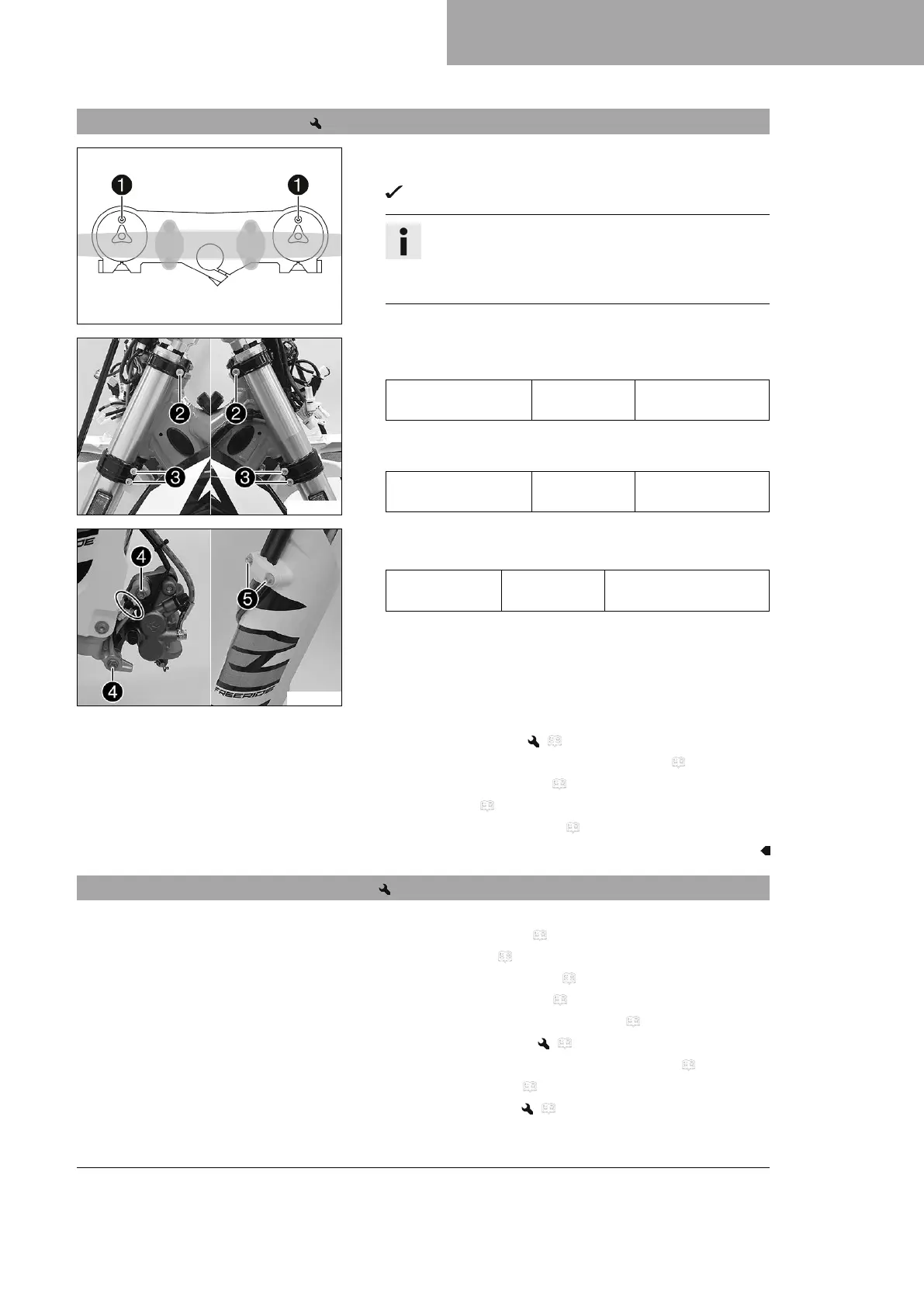

13.8 Installing the fork legs
402556-10
Main work
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
F02483-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 22 Nm (16.2 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 18 Nm (13.3 lbf ft)
F03125-10
–
Position the brake caliper. Mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
5
.
– Join plug-in connector and mount the cable tie(s).
Finishing work
– Install the front wheel. ( p. 91)
– Install the headlight mask with the headlight. ( p. 102)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
– Check the headlight setting. ( p. 105)
13.9 Removing the lower triple clamp
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
– Raise the motorcycle with a lift stand. ( p. 57)
– Remove the front wheel. ( p. 91)
– Remove the headlight mask with the headlight. ( p. 102)
– Remove front fender. ( p. 66)
– Remove the fork legs. ( p. 60)
