POWERPACK HV, BATTERY CHARGER 17
109
17.2 Installing the Powerpack HV
Caution
Risk of injury The Powerpack HV is very heavy.
The Powerpack HV must rest flush on the electric motor after installation.
– Only lift the Powerpack HV by the carrying handle.
– Make sure that nobody is pinched when the Powerpack HV is removed or installed.
Note
Material damage Components damaged or destroyed by water or dirt.
– Before installing the Powerpack HV, check the discharge plug on the electric motor and the discharge socket
on the Powerpack HV for cleanliness.
– Check the battery discharge plug form ring.
– Clean the battery discharge plug and the battery discharge socket without using water or compressed air if the
battery discharge plug or the battery discharge socket is dirty.
– After cleaning, spray silicone spray onto the battery discharge plug form ring.
Main work
– Remove the protection cap. ( p. 71)
– Check the battery discharge plug form ring. ( p. 71)

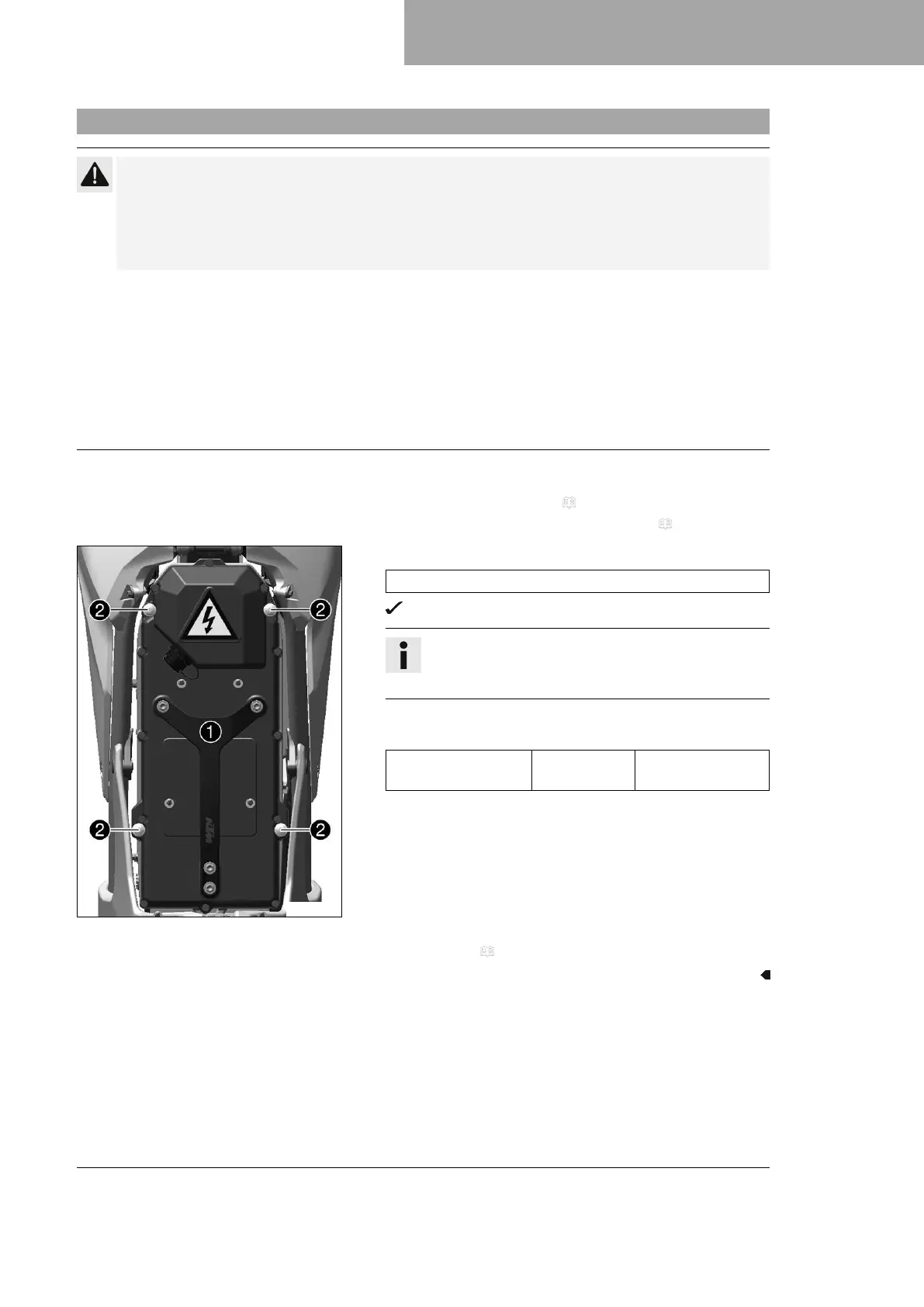

402145-12
–
Position Powerpack HV
1
in the vehicle.
Lifting strap (70029022000)
The Powerpack HV rests flush with the electric motor.
Info
The Powerpack HV is very heavy. A second person can
help with installation.
–
Tighten screws
2
.
Guideline
Attaching Powerpack
HV
M6 10 Nm (7.4 lbf ft)
Finishing work
– Lock the seat. ( p. 69)
