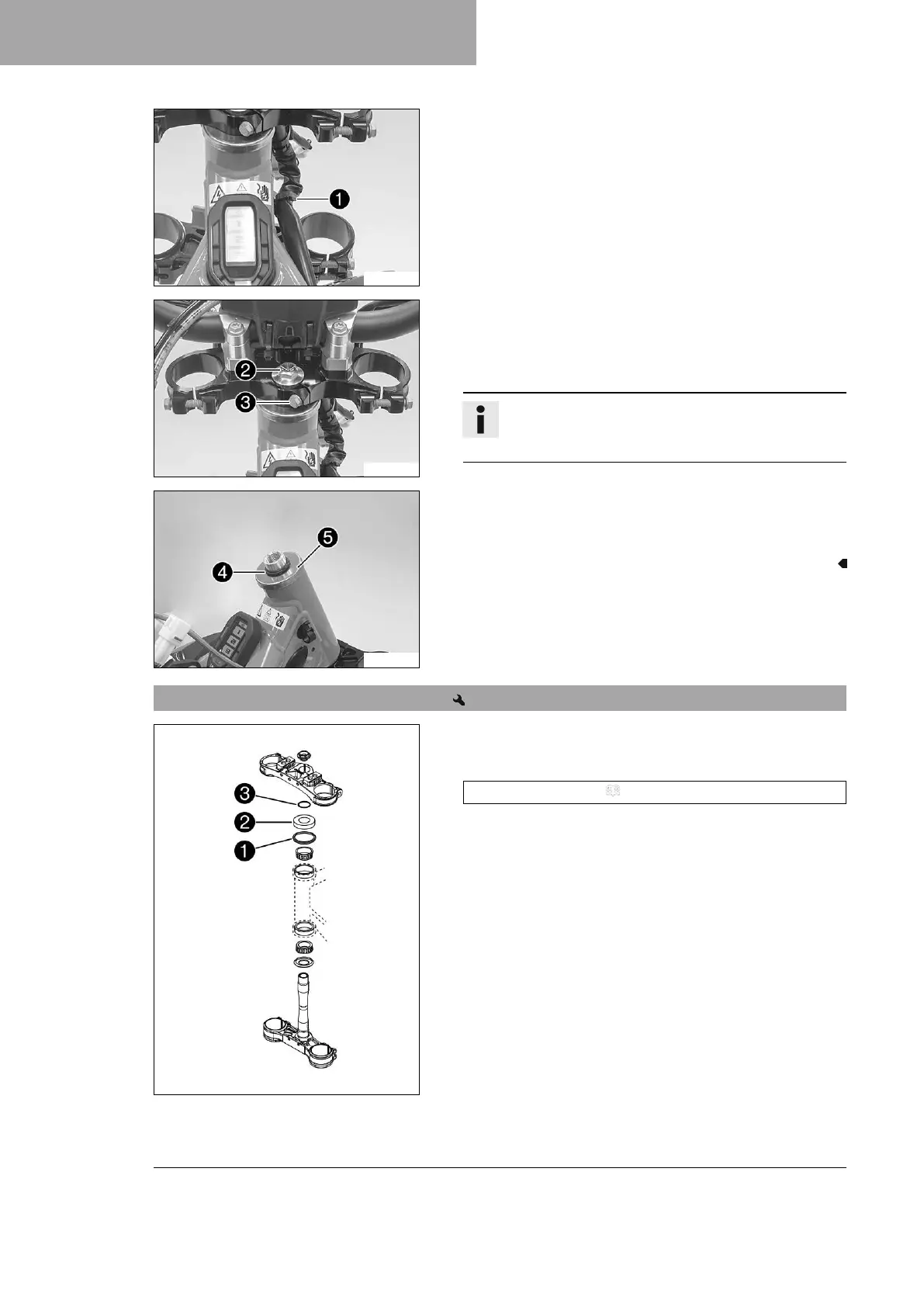

13 SERVICE WORK ON THE CHASSIS
62
A00204-10
Main work
–
Open holder
1
and detach the wiring harness and brake line.
A00205-10
–
Remove screw
2
.
–
Remove screw
3
.
– Take off the upper triple clamp with the handlebar and set it
aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
A00206-10
–
Remove O-ring
4
and protective ring
5
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
13.10 Installing the lower triple clamp
H02564-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 145)
– Insert the lower triple clamp with the steering stem. Mount
upper steering head bearing.
–
Check whether upper steering head seal
1
is correctly posi-
tioned.
–
Push protective ring
2
and O-ring
3
onto the steering stem.
