ELECTRICAL SYSTEM 16
105
– Insert the screw and first turn counterclockwise until it
engages in the thread with a small jerk. Tighten the screw
lightly.
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
– Check that the turn signal system is functioning properly.

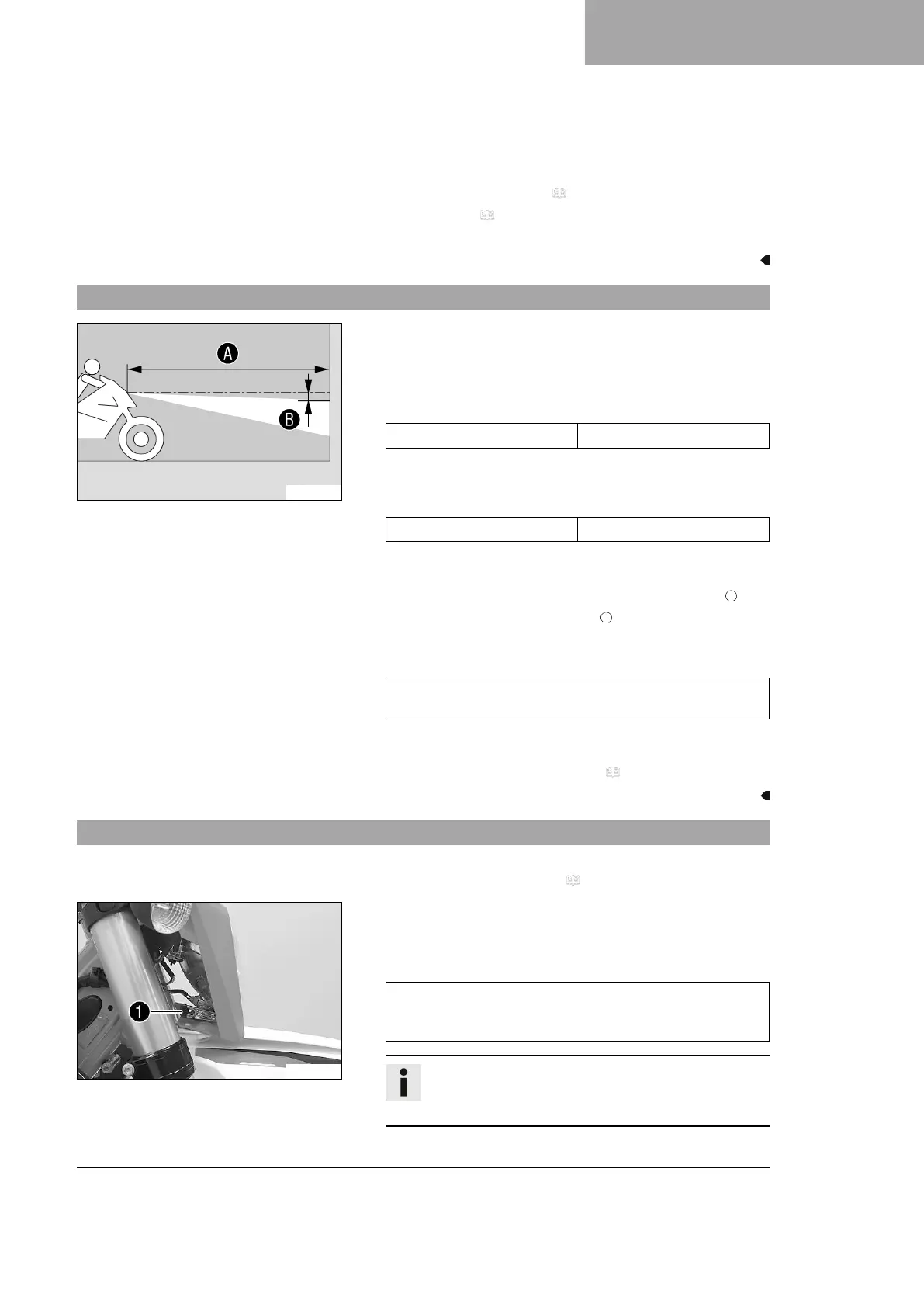

16.9 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of
a light wall and make a mark at the height of the center of the
low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle vertically a distance
A
away from the
wall.
Guideline
Distance
A
5 m (16 ft)
– The rider now sits down on the motorcycle with a full set of
protective clothing.
– Turn the ignition key in the ignition lock to the position .
– Push the main switch into position .
– Switch on the low beam.
– Check the headlight setting.
The boundary between light and dark must be exactly on the
lower marking for a motorcycle with rider.
» If the boundary between light and dark does not meet
specifications:
– Adjust the headlight range. ( p. 105)
16.10 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 105)
E00975-10
Main work
–
Loosen screw
1
.
– Adjust the headlight range by pivoting the headlight.
Guideline
The boundary between light and dark must be exactly on the
lower mark for a motorcycle with rider (instructions on how
to apply the mark: Checking the headlight setting).
Info
A change in weight on the vehicle may require a correc-
tion of the headlight range.
