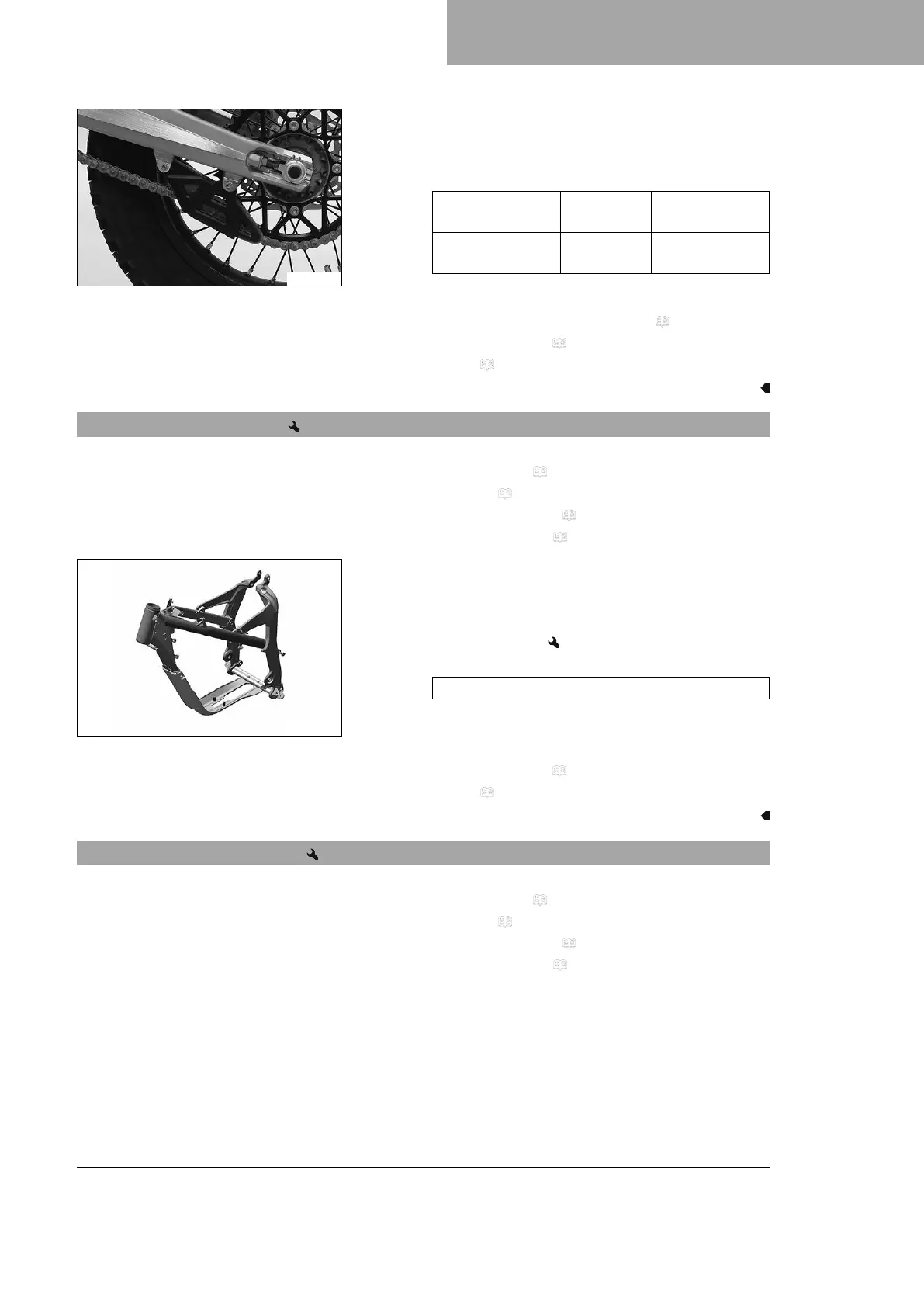

SERVICE WORK ON THE CHASSIS 13
77
F03128-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the fitting on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Remaining nuts,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 57)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
13.30 Checking the frame
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
402151-01
Main work
– Check the frame for damage, cracking, and deformation.
» If the frame shows signs of damage, cracking, or deforma-
tion:
– Change the frame.
Guideline
Repairs on the frame are not permitted.
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
13.31 Checking the link fork
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
