17 POWERPACK HV, BATTERY CHARGER
120

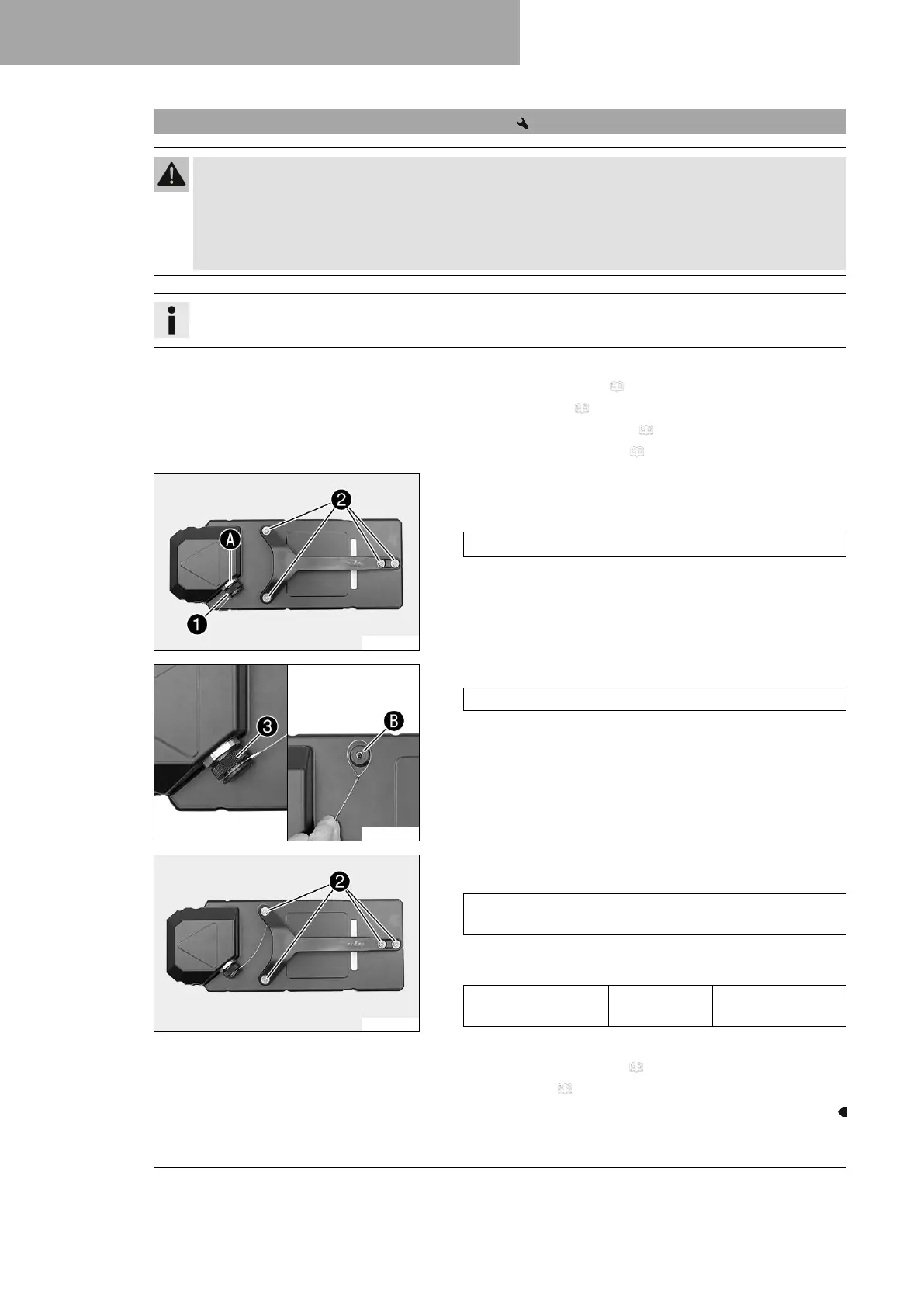

17.9 Changing charging socket protection cap
Warning
Risk of injury There is a risk of electric shock when working on high-voltage components.
Work on high-voltage components requires special training, qualifications and tools.
– Have all work that is not described and explained performed by trained KTM mechanics only.
– Do not open the electric motor or the lithium-ion battery (Powerpack HV).
Info
If the safety cord or seal ring is damaged or torn off, the charging socket protection cap must be replaced.
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the Powerpack HV. ( p. 108)
– Mount the protection cap. ( p. 71)
M00743-10
Main work
–
Remove charging socket protection cap
1
.
Guideline
Do not loosen
A
nut.
– Remove residual safety cord.
–
Remove screws
2
.
– Take off the carry handle.
M00744-10
–
Install new charging socket
3
protection cap.
Charging socket protection cap (000700000FX01)
–
Position loop around the right
B
carry handle attachment.
M00745-10
–
Position carry handle.
Guideline
Do not pinch the loop between the Powerpack HV and the
carrying handle.
–
Mount and tighten screws
2
.
Guideline
Screw, carrying han-
dle
M6 5 Nm (3.7 lbf ft)
Finishing work
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
