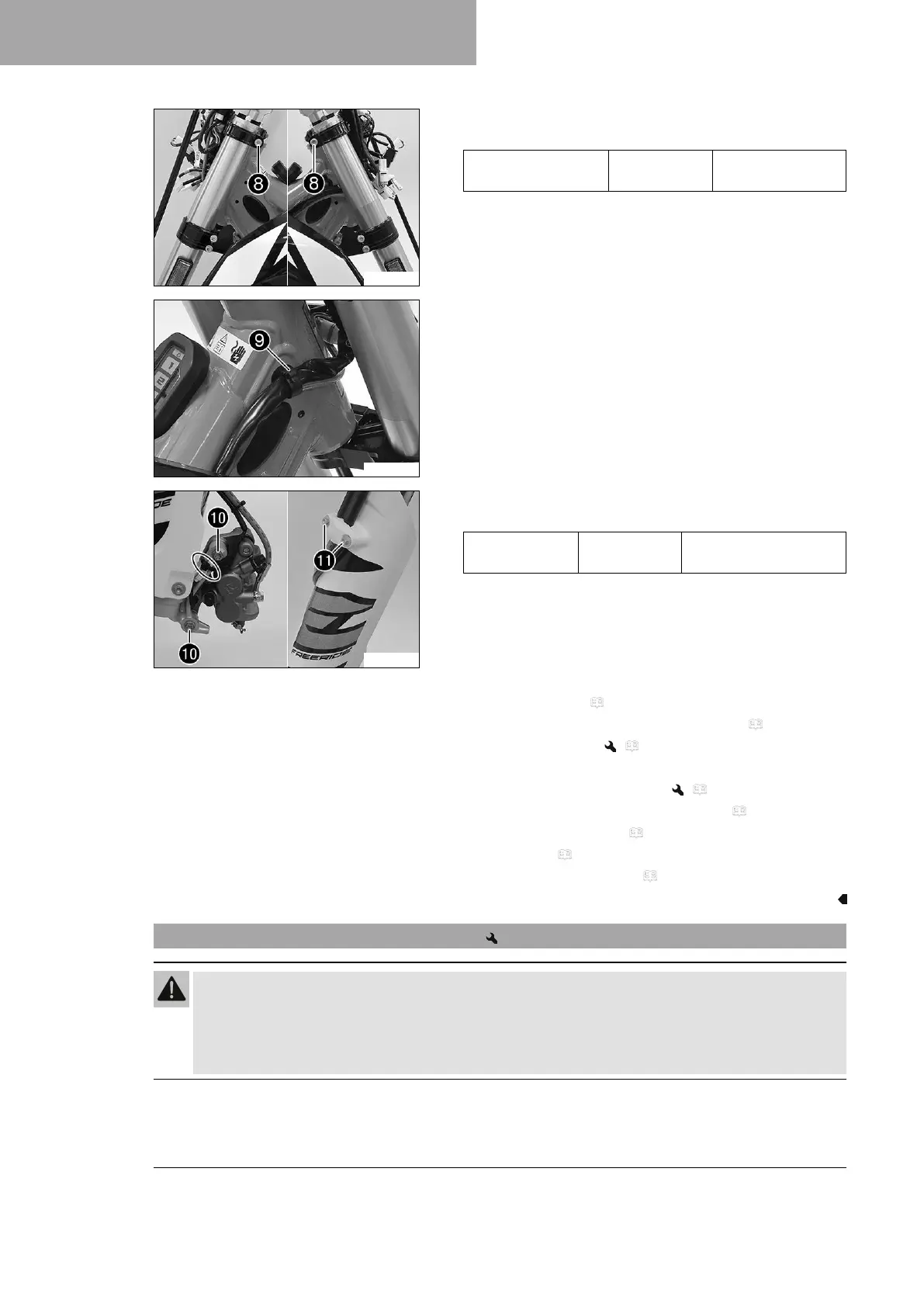

13 SERVICE WORK ON THE CHASSIS
64
F02484-11
–
Tighten screws
8
.
Guideline
Screw, top triple
clamp
M8 22 Nm (16.2 lbf ft)
F02486-10
–
Attach the brake line and wiring harness. Close holder
9
.
F03125-11
–
Position the brake caliper. Mount and tighten screws
bk
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
bl
.
– Join plug-in connector and mount the cable tie(s).
Finishing work
– Install front fender. ( p. 67)
– Install the headlight mask with the headlight. ( p. 102)
– Install the front wheel. ( p. 91)
– Check that the cable and brake lines are routed correctly.
– Check steering head bearing play. ( p. 64)
– Remove the motorcycle from the lift stand. ( p. 57)
– Install the Powerpack HV. ( p. 109)
– Lock the seat. ( p. 69)
– Check the headlight setting. ( p. 105)
13.11 Checking steering head bearing play
Warning
Danger of accidents Incorrect steering head bearing play impairs the handling characteristic and dam-
ages components.
– Correct incorrect steering head bearing play immediately. (Your authorized KTM workshop will be glad
to help.)
